Netgear GS348 Overview
-
1Description
-
2Auto-MDI/MDIX
-
3Non-Blocking Switching
-
4Energy-Efficient

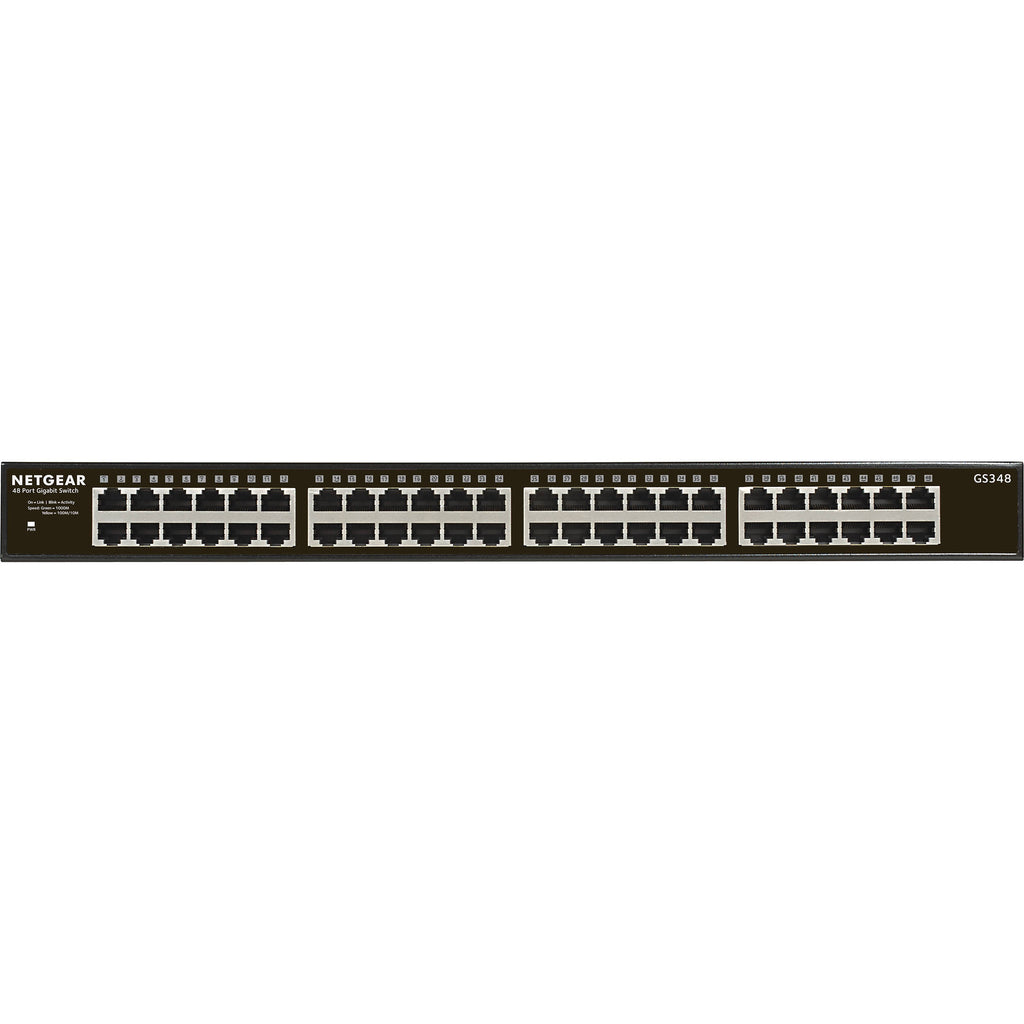

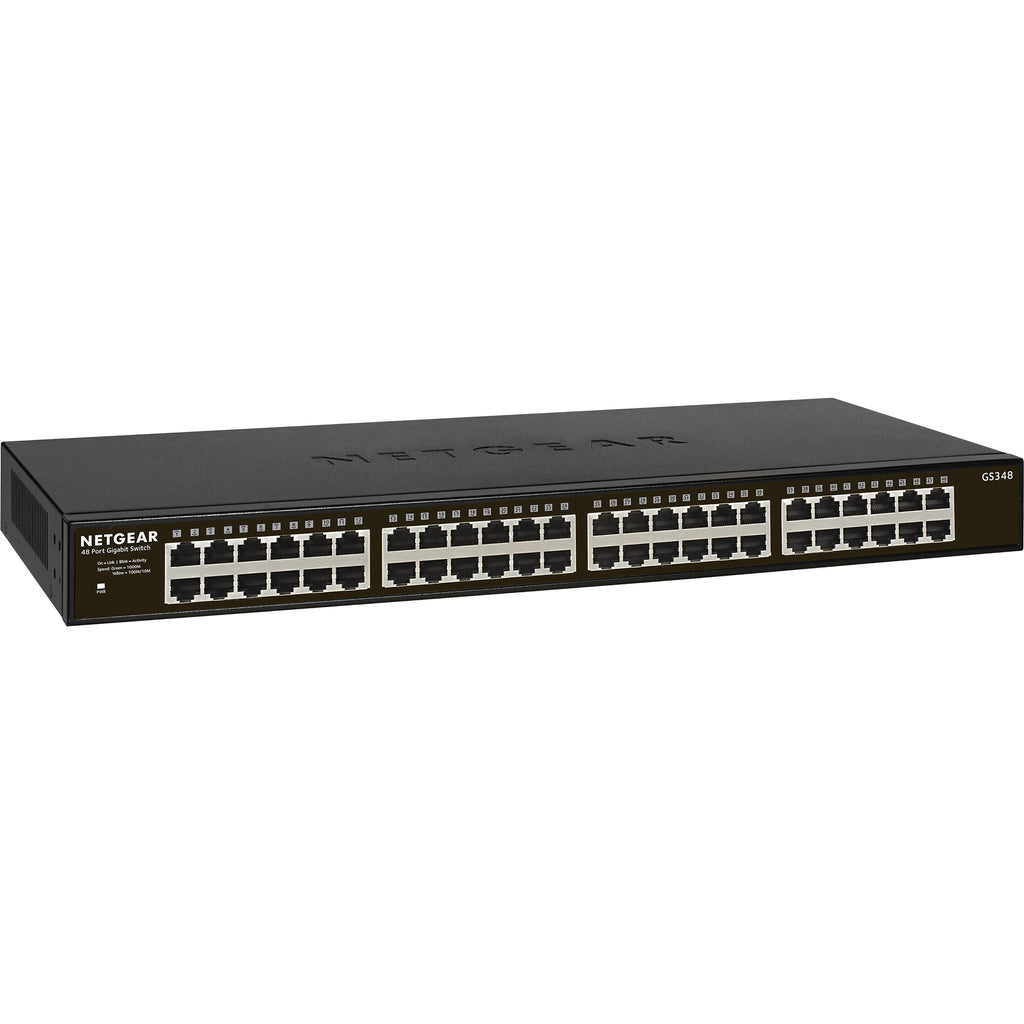

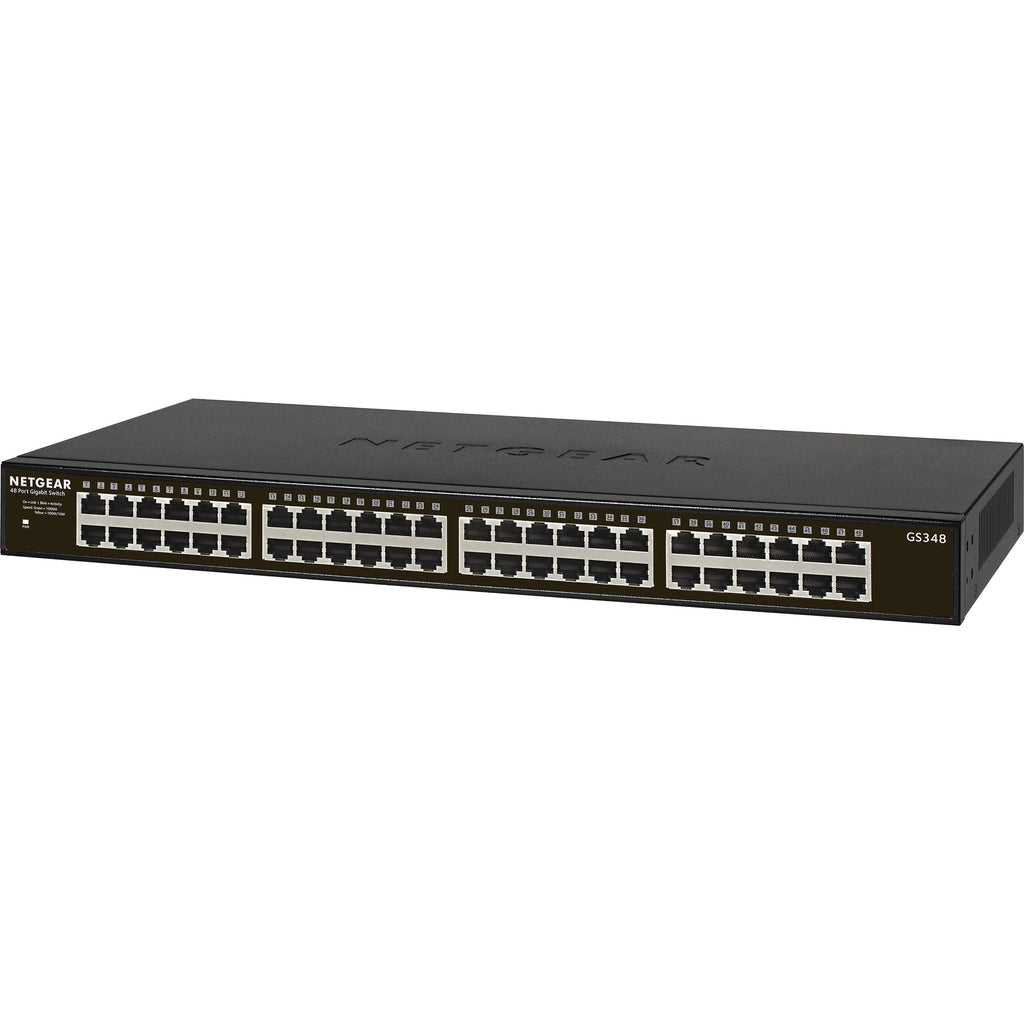

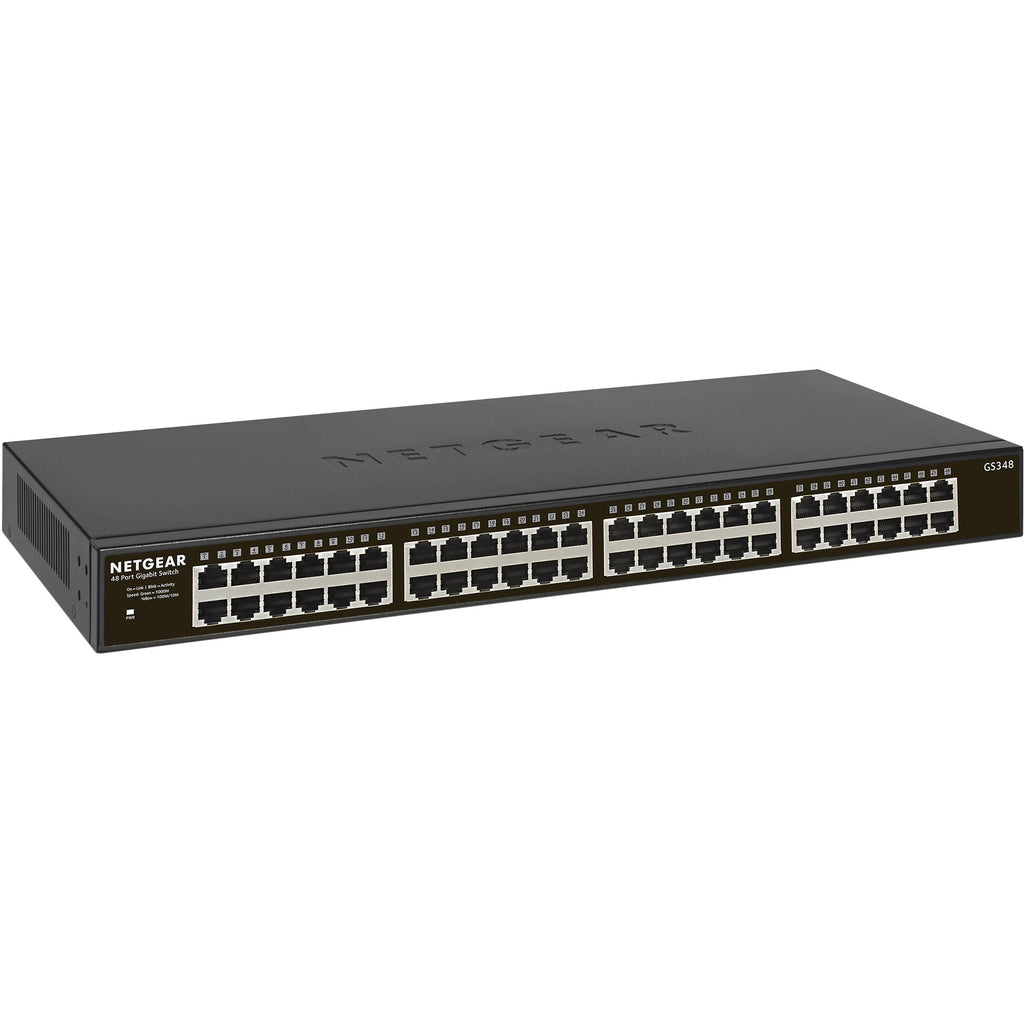

The Netgear GS348 48-Port Gigabit Ethernet Unmanaged Switch provides a straightforward plug-and-play solution for expanding your home or small office's network connections. With a switching capacity of 96 Gb/s (non-blocking) and a 1.44 Mpps forwarding capacity, connecting the 48-port switch to your network provides you with additional Gigabit Ethernet ports to plug devices such as computers, gaming consoles, access points, and network storage. Featuring a plug-and-play design, a rugged metal enclosure, and no fan, this desk or rackmounted unmanaged switch is designed for easy installation and quiet operation.
With Auto-MDI/MDIX support, you will not need crossover cables to connect additional switches and hubs.
The switch employs a non-blocking switching architecture that automatically adjusts the maximum data throughput to the wire's speed.
In addition to having a fanless design, this switch features an Energy Efficient Ethernet standard and other technologies to save power.
![]()
UPC: 606449120202
In the Box
- Netgear 48-Port GS348 Gigabit Unmanaged Switch
- Power Cable
- Rack Mounting Kit
- Limited 3-Year Warranty
Table of Contents
- Description
- Auto-MDI/MDIX
- Non-Blocking Switching
- Energy-Efficient
Netgear GS348 Specs
Interfaces
| Ports |
48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
Protocols
| Supported Protocols |
Auto-MDIX/MDI |
| Queuing |
Weighted Round Robin (WRR) |
| Jumbo Frames Support |
9216 Bytes |
| MAC Address Table Size |
8K |
Standards
| Supported IEEE Standards |
802.1p, 802.3, 802.3ab, 802.3az, 802.3i, 802.3u, 802.3x |
Performance
| Latency |
4 µs |
| Forwarding Rate |
1,448 Mpps |
| Switching Bandwidth |
96 Gb/s (Non-Blocking) |
| Packet Buffer |
1.5 MB |
Electrical
| Power Draw |
23.00 W (Max)
8.81 W (Standby) |
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz at 1 A |
| Power Supply Type |
Internal |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
90% |
| Storage Temperature |
-4 to 158°F / -20 to 70°C |
| Storage Humidity |
95% |
| Storage Altitude |
10,000' / 3048 m |
General
| Cooling System |
Passive |
| Mean Time Between Failures (MTBF) |
1,094,297 Hours |
| Material of Construction |
Metal |
| Indicator Lights |
Link/Activity, Power |
| Dimensions |
17.32 x 7.95 x 1.69" / 440 x 202 x 43 mm |
| Weight |
6.97 lb / 3.16 kg |
Packaging Info
| Package Weight |
9.15 lb |
| Box Dimensions (LxWxH) |
19.9 x 11.5 x 3.1" |
Netgear GS348 Reviews
High quality build, works as expected
By Peter
Rated 5 out of 5
Date: 2021-01-05
This switch is well built, heavy. It comes with all the mounting hardware to install in a rack or on a desk. It is plug and play: plug your network connections and everything works as it should. It comes with 3 years warranty: I expect it to last at least 3x that much. The activity lights are on the one side of the ports and small; however that is a trivial inconvenience.
