Description
Network Technologies VGA Video Matrix Switche... Overview
The VEEMUX 32 x 16 VGA Matrix Switch from Network Technologies delivers powerful, flexible video routing for professional AV environments. It seamlessly connects multiple computer video sources to multiple destinations, such as projectors, monitors, or other VGA-compatible devices, without the need for external interfaces or complex coaxial BNC connections.
Engineered for precision and reliability, the VEEMUX distributes signals from any of its 32 inputs to any combination of outputs, forming a true ?matrix? of visual connectivity. Each output is individually buffered to maintain superior signal integrity, ensuring every image is as sharp, vibrant, and distortion-free as if it were directly connected to the source. Ideal for control rooms, classrooms, digital signage, and presentation systems, the VEEMUX simplifies video distribution while delivering professional-grade performance.
- Configure and control the switch through Ethernet, serial port, front panel buttons, or optional IR remote control
- NTI Switch Control Program with Graphical User Interface (GUI control) is included with the product
- Equipped with a liquid crystal display (LCD) for front panel operation
- Switch the VGA video directly
- Each output provides one video signal
- Each input can be independently connected to any or all outputs
- Video bandwidth is 200 MHz or greater
- Supports 1920 x 1200 video resolution at a refresh rate of 85 Hz
- All units pass vigorous testing with a 24-hour minimum burn-in, heat-testing, and load test of all ports
Items Included
- Network Technologies VEEMUX 32 x 16 VGA Matrix Switch
- Power Cord
- Mounting Hardware
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies VGA Video Matrix Switche... Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
WUXGA
|
| Video Inputs |
32x DE-15/DB-15 (VGA)
|
| Input Video Format |
VGA
WUXGA (1920 x 1200) at 85 fps |
| Video Outputs |
16x DE-15/DB-15 (VGA)
|
| Output Video Format |
VGA
WUXGA (1920 x 1200) |
| Wireless |
No
|
| Power I/O |
1x IEC C14 (110 to 220 VAC ) Input
|
| Power Consumption |
25 W
|
| Operating Conditions |
32 to 100?F / 0 to 38?C at 5 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 5 to 90% Humidity
|
| Certifications |
CE, FCC, RoHS, TAA
|
| Rack Form Factor |
3 U
|

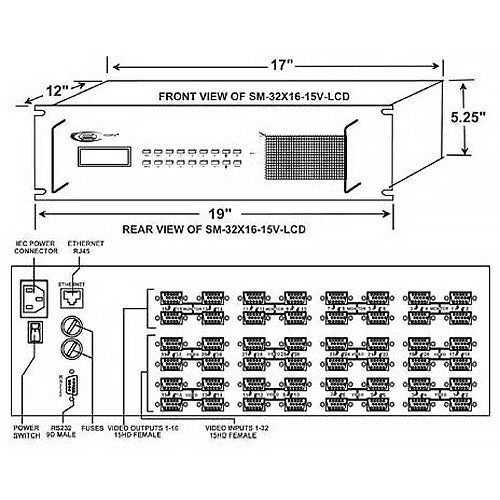

| Dimensions |
19 x 12 x 5.25" / 48.3 x 30.5 x 13.34 cm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1128293.6 |
| 3-5 | ₹ 1116780.4 |
| 5-10 | ₹ 1093754.0 |
| 10+ | ₹ 1070727.6 |
Bulk discount will be automatically applied during checkout based on quantity.
