Description
Network Technologies DVI Video Matrix Switch ... Overview

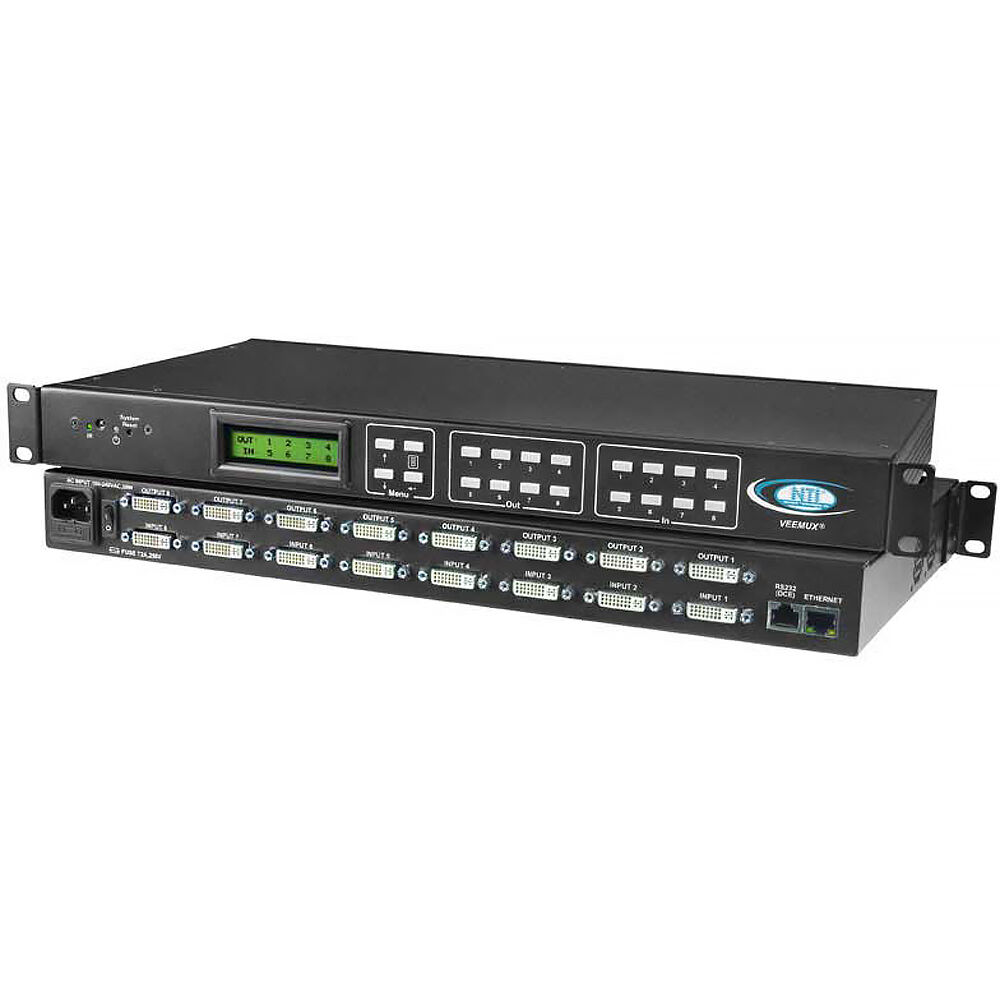

The VEEMUX 8 x 8 DVI Video Matrix Switch from Network Technologies features a 1 RU rackmount design and delivers powerful, flexible video routing for professional AV environments. It seamlessly connects multiple video sources to multiple destinations, such as projectors, monitors, or other DVI-compatible devices, without the need for external interfaces.
Engineered for precision and reliability, the VEEMUX distributes signals from any input to any combination of outputs, forming a true ?matrix? of visual connectivity. Each output is individually buffered to maintain superior signal integrity, ensuring every image is as sharp, vibrant, and distortion-free as if it were directly connected to the source. Ideal for control rooms, classrooms, digital signage, and presentation systems, the VEEMUX simplifies video distribution while delivering professional-grade performance.
- Configure and control the switch through Ethernet, serial port, front panel buttons, or optional IR remote
- Supports DVI-D interface for crisp and clear video quality on flat panel displays
- Supports HDTV resolutions up to 1080p, and up to 1920 x 1200 (WUXGA)
- Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2
- Each input can be independently connected to any or all outputs
- EDID learning for the support of any DVI display device
- Built-in default EDID configuration tables for both Windows and macOS computers
- Dual default EDID configuration tables
- Supports HTTP, HTTPS, TCP/IP, DHCP, UDP, ARP, TLS v1.2, and IPV4 protocols
Items Included
- Network Technologies VEEMUX 8 x 8 DVI Video Matrix Switch
- Power Cord (6')
- DB9 Female to RJ45 Female Adapter
- Cat 5 Patch Cable (5')
- Rackmount Mounting Hardware
- 20 x Zip Tie
- 4 x Rubber Foot
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies DVI Video Matrix Switch ... Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
1080p
|
| Video Inputs |
8x DVI-I DL (DVI)
|
| Input Video Format |
DVI
1080p WUXGA (1920 x 1200) |
| Video Outputs |
8x DVI-D DL (DVI)
|
| Output Video Format |
DVI
1080p WUXGA (1920 x 1200) |
| HDCP Support |
Yes
|
| OS Compatibility |
Windows / macOS
|
| Wireless |
No
|
| Power I/O |
1x IEC C14 (100 to 240 VAC ) Input
|
| Power Consumption |
20 W
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 5 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 5 to 90% Humidity
|
| Certifications |
CE, RoHS, TAA
|
| Rack Form Factor |
1 U
|
| Dimensions |
17.4 x 10 x 1.75" / 44.2 x 25.4 x 4.45 cm
|
