Description

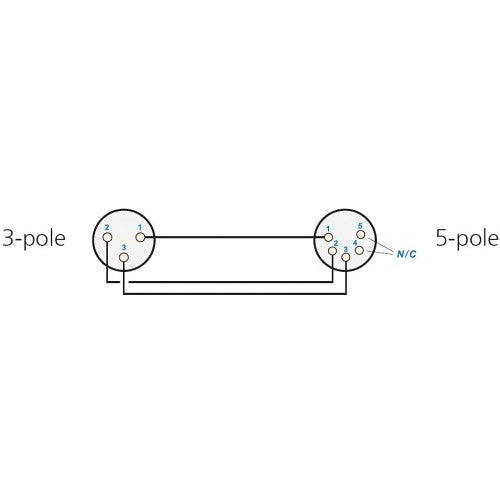

- 3-Pin XLR Male to 5-Pole XLR Female
- For Lighting Applications
- Solves Interconnection Problems
- Based on XX Series Connectors
- Diecast Shell

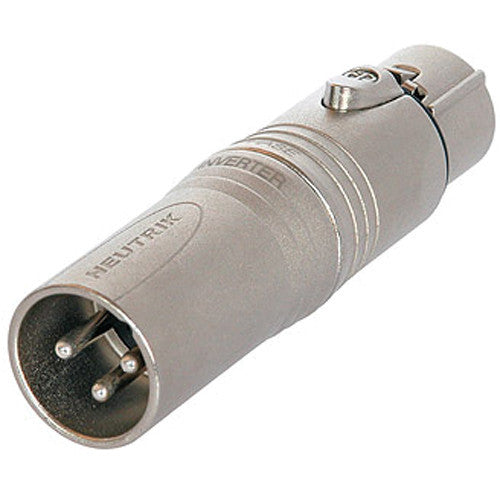

Designed by Neutrik for lighting applications, the NA3M5F is an adapter bridging the gap between 3-pole XLR connections and the 5-pole DMX standard. It does this by sporting a male 3-pole connection at one end 5-pole XLR female termination at the other. With a construction based on the XX series of Neutrik connectors, this adapter features a diecast shell for durability. It provides a useful solution in the interconnection problems between older terminations and the DMX standard.
| Contact Resistance | < 3 MOhms (inner) |
| Dielectric Strength | 1.5 kVDC |
| Insulation Resistance | > 2 GOhms |
| Rated Current Per Contact | 7.5 A |
| Insertion Force | < 20 N |
| Withdrawal Force | < 20 N |
| Lifetime | >1,000 mating cycles |
| Locking Device | Latch lock |
| Contact Plating | 2 µm Ag |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30% GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating | Black |
| Temperature Range | -22 to 176°F (-30 to 80°C) |
| Packaging Info | |
|---|---|
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 4.0 x 2.8 x 0.9" |
In the Box
Neutrik NA3M5F 3-Pole XLR Male to 5-Pole XLR Female Adapter
- 6-Month Warranty
