Description

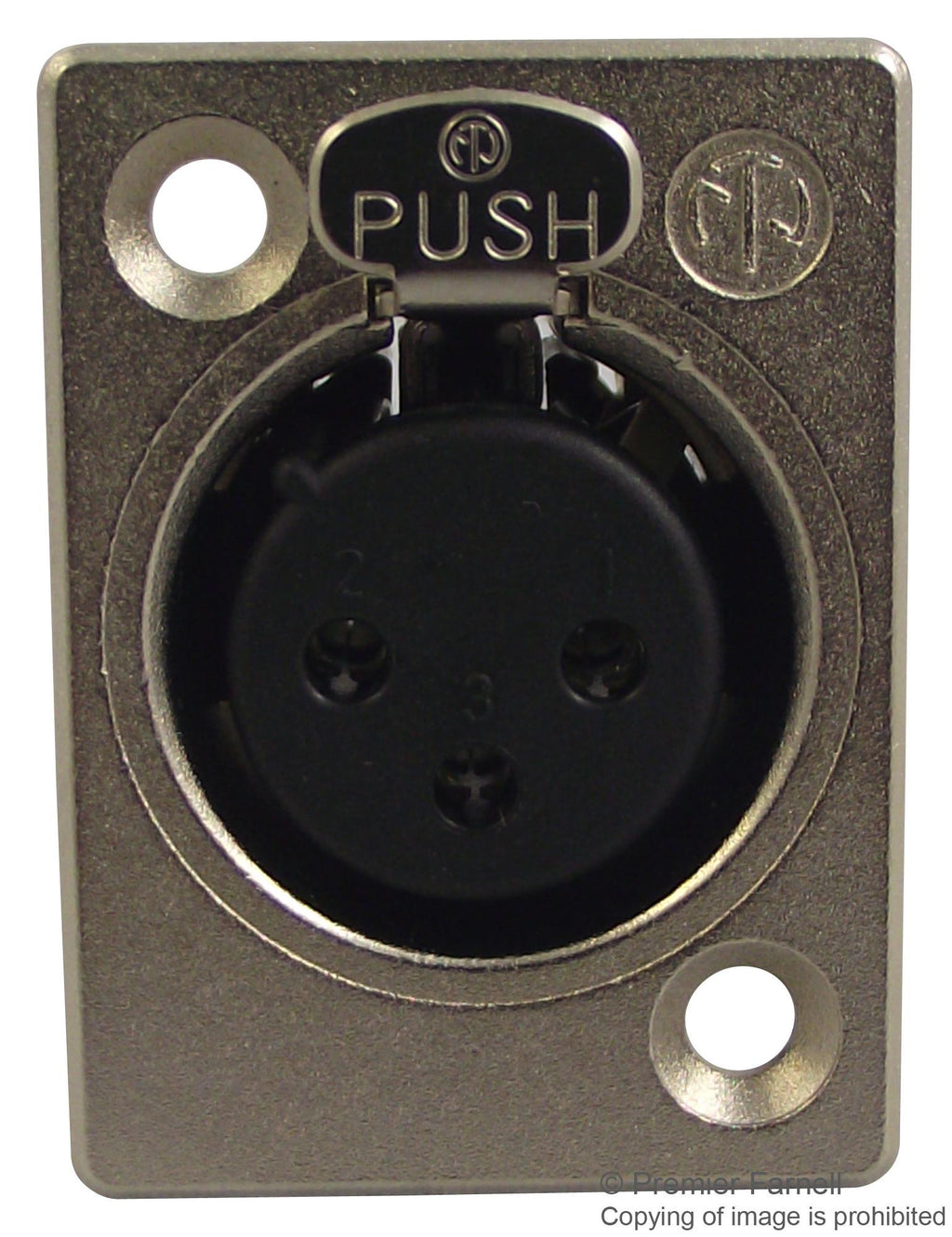

The NC3FP-1 from Neutrik is a 3 pole female XLR receptacle chassis connector. This is smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
- Short female receptacle in front mounting direction, 'P' chassis shape
- Polyamide (PA 6.6 30 % GR) insert, bronze (CuSn6) contact with silver plating
- Zinc die-cast (ZnAl4Cu1) shell with nickel plating and steel Ck67 locking element
- Compatible with Switchcraft D*M, D*F, Cannon XLB2*31, XLB2*32 series connector
- Dielectric strength of 1.5KVDC, 16A rated current per contact and rated voltage < 50V
- Lifetime > 1000 mating cycles
- IP 40 protection class
- Flammability rating meets UL 94 HB
- IEC 61076-2-103 standard compliance
- Temperature range from -30°C to +80°C
- -30 to +80°C Temperature range
Applications
Audio, Consumer Electronics
Product details
| No. of Contacts | 3Contacts |
| Contact Plating | Silver Plated Contacts |
| Gender | Socket |
| Product Range | P Series |
| Connector Body Material | Metal Body |
| Connector Mounting | Panel Mount |
Other details
| Brand | NEUTRIK |
| Part Number | NC3FP1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 730.53 |
| 3-5 | ₹ 723.08 |
| 5-10 | ₹ 708.17 |
| 10+ | ₹ 693.26 |
Bulk discount will be automatically applied during checkout based on quantity.
