Description

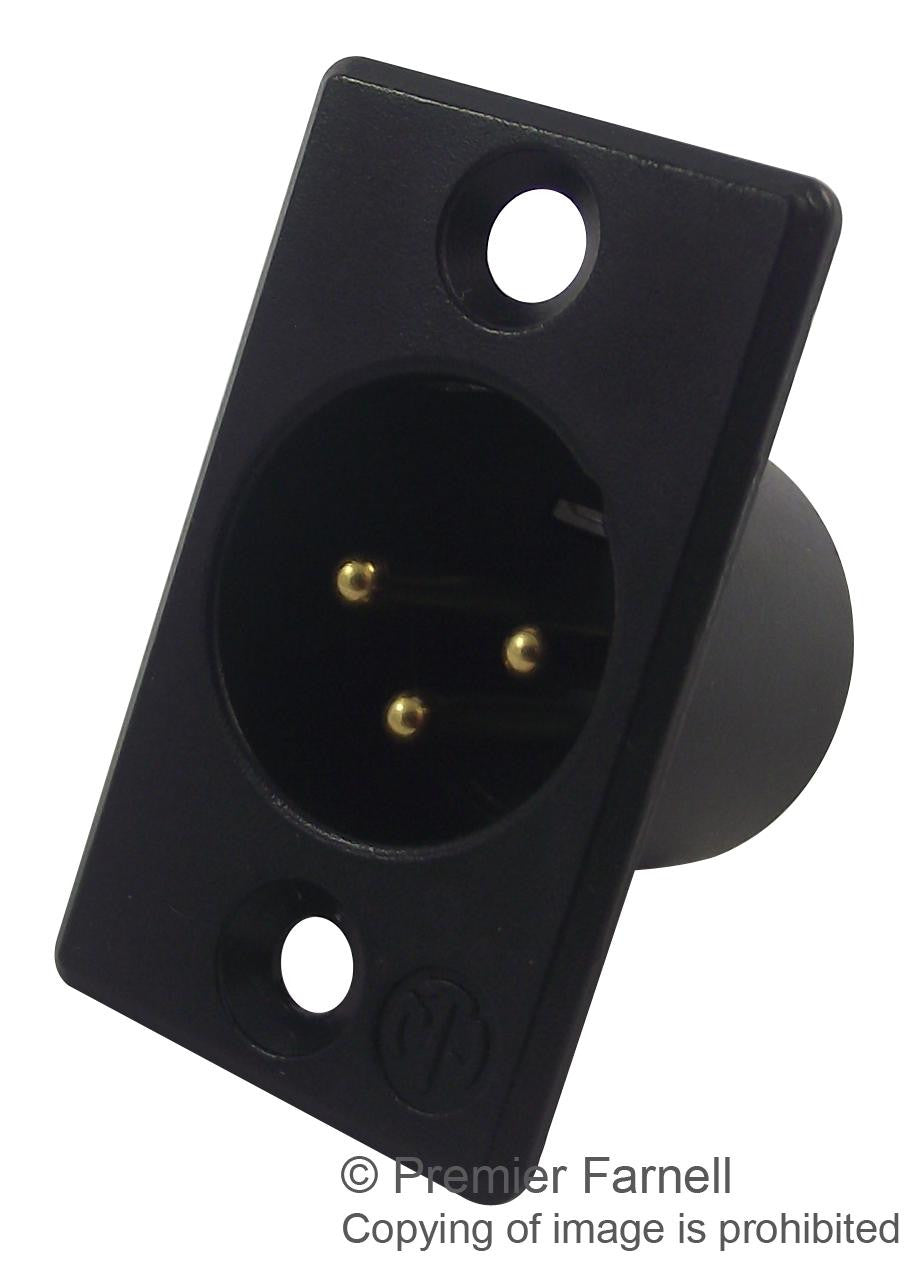

The NC3MP-B from Neutrik is a 3 pole male XLR receptacle chassis connector with solder contacts. This is a smallest available hard wiring receptacle with large solder cups.
- Compatible with Switchcraft D*M, D*F, Cannon XLB2*31, XLB2*32 series connector
- Polyamide (PA 6.6 30 % GR) insert, zinc die-cast (ZnAl4Cu1) shell with black chromium plating
- Brass (CuZn35Pb2) contact with gold plating
- Steel Ck67 locking element
- Dielectric strength of 1.5KVDC, 16A rated current per contact and rated voltage < 50V
- Latch lock device with 'P' chassis shape
- Lifetime > 1000 mating cycles
- Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance
- IP 40 protection class
- Temperature range from -30°C to +80°C
Applications
Audio, Consumer Electronics
Product details
| No. of Contacts | 3Contacts |
| Contact Plating | Gold Plated Contacts |
| Gender | Plug |
| Product Range | P Series |
| Connector Body Material | Metal Body |
| Connector Mounting | Panel Mount |
Other details
| Brand | NEUTRIK |
| Part Number | NC3MP-B |
| Quantity | Each |
| Drawing EN |  |
| Manufacturer Product Page EN | |
