| ₹ 96.53 includes GST and import duties. | |
| B2B customers can avail ₹ 14.72 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The 74HCT595D is a 8-bit serial-in, serial or parallel-out Shift Register with output latches and 3-state output. The registers have separate clocks. The 74HCT595 is high-speed Si-gate CMOS devices and are pin compatible with low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard number 7A. Data is shifted on the positive-going transitions of the shift register clock input (SHCP). The data in each register is transferred to the storage register on a positive-going transition of the storage register clock input (STCP). If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage register.
- Storage register with 3-state outputs
- Shift register with direct clear
- ±1µA Input leakage current
- ±10µA Off-state output current
- 160µA Supply current
- 100MHz (typical) Shift out frequency
Applications
Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Logic IC Family | 74HCT |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| No. of Pins | 16Pins |
| Logic Case Style | SOIC |
| Shift Register Function | Serial to Parallel, Serial to Serial |
| Logic IC Base Number | 74595 |
| Product Range | - |
| Automotive Qualification Standard | - |
| No. of Elements | 8 Element |
| No. of Bits Per Element | 8bit |
| IC Output Type | Tri State |
| Supply Voltage Min | 4.5V |
| Logic Family / Base Number | 74HCT595 |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.5V |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | 74HCT595D |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

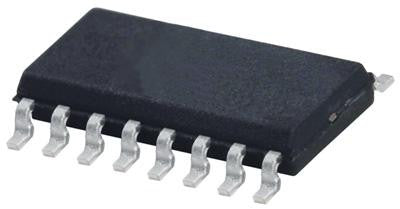

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 94.6 |
| 3-5 | ₹ 93.63 |
| 5-10 | ₹ 91.7 |
| 10+ | ₹ 89.77 |
Bulk discount will be automatically applied during checkout based on quantity.
