| ₹ 89.9 includes GST and import duties. | |
| B2B customers can avail ₹ 13.71 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

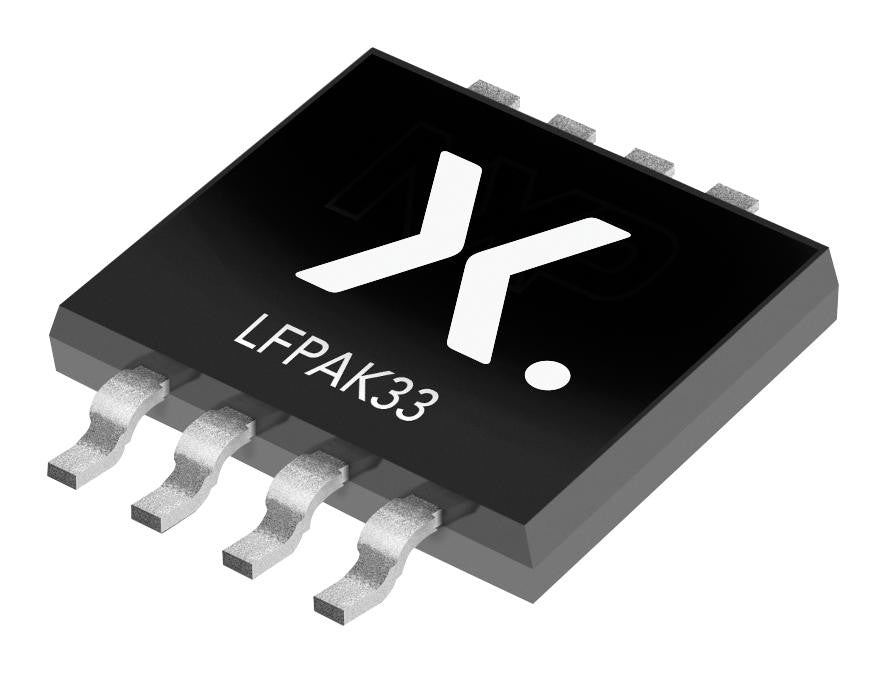

This is a MOSFET Transistor, N Channel, 9.3 A, 100 V, 0.12 ohm, 10 V, 1.7 V product from NEXPERIA with the model number BUK9M156-100EX
Product details
| Power Dissipation Pd | 36W |
| Operating Temperature Max | 175�C |
| Continuous Drain Current Id | 9.3A |
| Transistor Polarity | N Channel |
| No. of Pins | 8Pins |
| Threshold Voltage Vgs | 1.7V |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q101 |
| Drain Source Voltage Vds | 100V |
| Rds(on) Test Voltage Vgs | 10V |
| Transistor Case Style | SOT-1210 |
| On Resistance Rds(on) | 0.12ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NEXPERIA |
| Part Number | BUK9M156-100EX |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 88.1 |
| 3-5 | ₹ 87.2 |
| 5-10 | ₹ 85.41 |
| 10+ | ₹ 83.61 |
Bulk discount will be automatically applied during checkout based on quantity.
