Description

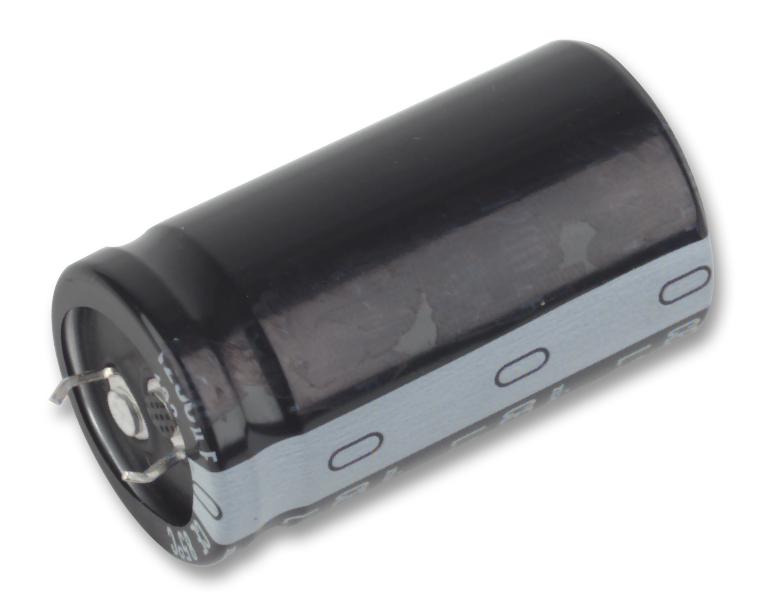

The LS series snap-in terminal Aluminium Electrolytic Capacitor withstands 3000 hours application of rated ripple current at 105°C. This capacitor is smaller than LN series.
- -40 to 105°C Temperature range
- 16 to 450V Rated voltage range
- 56 to 56000µF Rated capacitance range
- Anti-Solvent (through 100V only)
Applications
Industrial
Product details
| Capacitance: 1000µF |
| Voltage(DC): 200V |
| Voltage(AC): - |
| Capacitance Tolerance: ± 20% |
| Capacitor Terminals: Snap-In |
| Lifetime @ Temperature: 3000 hours @ 85°C |
| Polarity: Polar |
| Product Range: LS |
| Product Diameter: 30mm |
| Product Height: 35mm |
| Lead Spacing: 10mm |
| ESR: - |
| Ripple Current: 3.15A |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Qualification: - |
Other details
| Brand | NICHICON |
| Part Number | LLS2D102MELB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 493.55 |
| 3-5 | ₹ 488.51 |
| 5-10 | ₹ 478.44 |
| 10+ | ₹ 468.37 |
Bulk discount will be automatically applied during checkout based on quantity.
