Nila Varsa V2 Bi-Color Overview
- 1 Description
- 2 Nila Varsa V2 Bi-Color LED Fixture
- 3 Nila 40 Degree Medium Holographic Lens for Varsa LED Light
- 4 Nila 20 Degree Spot Holographic Lens for Varsa LED Light
- 5 Nila 10 Degree Narrow Spot Holographic Lens for Varsa LED Light
- 6 Nila 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light
- 7 Nila 60 Degree Wide Holographic Lens for Varsa LED Light
- 8 Nila 80 Degree Flood Holographic Lens for Varsa LED Light
- 9 Nila Varsa Barndoor Set
- 10 Nila Battery Adapter Plate (V-Mount)
- 11 Pelican iM2950 Storm Trak Case with Foam (Black)

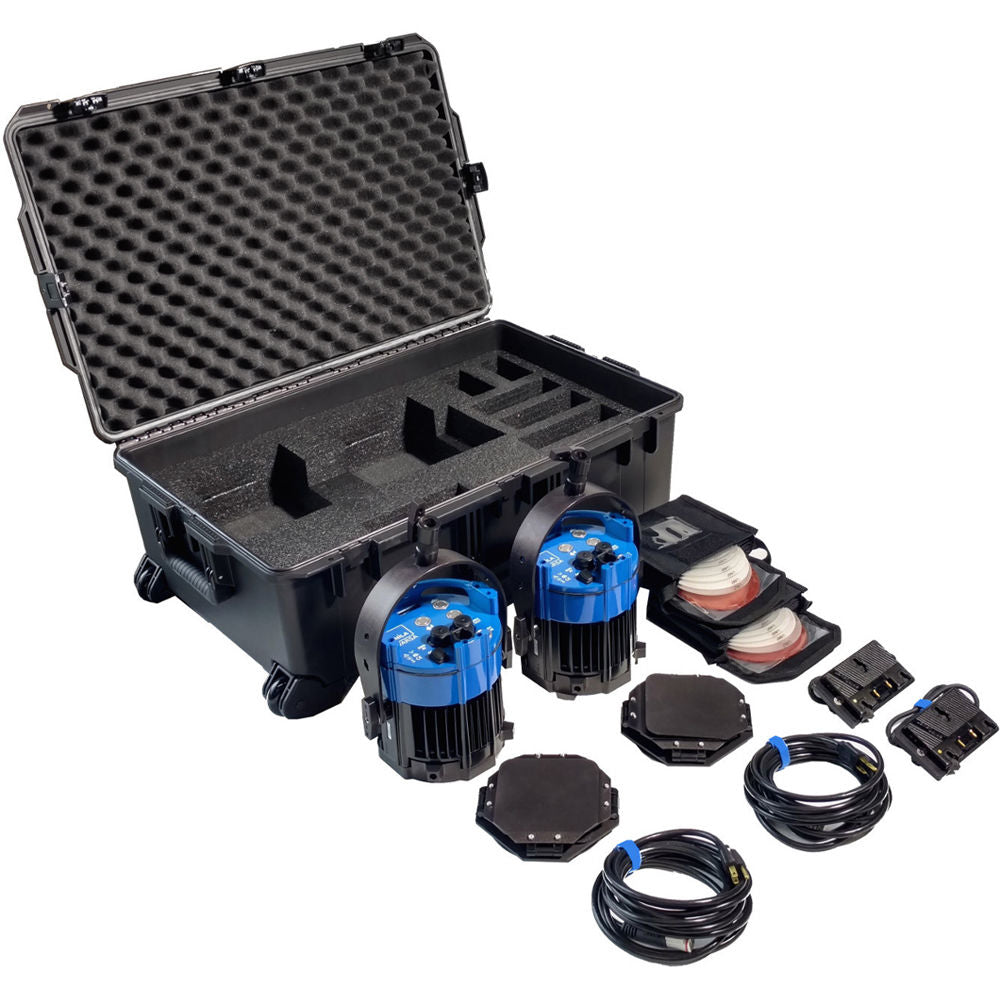

The Double Varsa V2 B-Color LED Kit with V-Mount Battery Plates from Nila is a wise choice for location or the studio. The kit includes 2 IP65-rated, weatherproof Bi-Color Varsa V2 LED fixtures, each with a V-mount battery plate, 6 holographic lenses, and a set of 4-way barndoors. A a hard, wheeled Pelican Storm Trak case is included to store and transport it all.
Nila Varsa V2 Bi-Color LED Fixture
The Varsa V2 Bi-Color LED Fixture from Nila is a versatile light source with color, power, and beam spread options from 10 to 80° via optional holographic lenses. The V2 is comparable to a 400W HMI and has a wide temperature range of 2800 to 6400K to meet ambient light challenges, match other fixtures, or for creative expression. It also boasts flicker-free dimming from 0 to 100% at any frame rate up to 5000 fps. While you can make color temperature and light intensity adjustments locally on the fixture, you can also make them remotely from a console via onboard DMX.
A valuable feature of the V2 is its IP65 weatherproof rating making the light more than up to the challenge of inclement weather. The Varsa V2 is power factor corrected, incorporating efficiency-enhancing technology that matches actual power usage to rated power draw. The V2 is ready for worldwide use thanks to its 100-240 VAC power supply.
Nila 40 Degree Medium Holographic Lens for Varsa LED Light
The 40 Degree Medium Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
Nila 20 Degree Spot Holographic Lens for Varsa LED Light
The 20 Degree Spot Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
Nila 10 Degree Narrow Spot Holographic Lens for Varsa LED Light
The 10 Degree Narrow Spot Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
Nila 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light
The 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
Nila 60 Degree Wide Holographic Lens for Varsa LED Light
The 60 Degree Wide Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
Nila 80 Degree Flood Holographic Lens for Varsa LED Light
The 80 Degree Flood Holographic Lens for Varsa LED Light from Nila changes the light's beam spread.
Nila Varsa Barndoor Set
The 4-leaf Varsa Barndoor Set from Nila fits on the front of the fixture, allowing you to control and contour its light output while reducing spill light.
Nila Battery Adapter Plate (V-Mount)
The Battery Adapter Plate from Nila allows you to power the Varsa or Zaila LED lights using a V-mount battery.
Pelican iM2950 Storm Trak Case with Foam (Black)
The Pelican iM2950 Storm Trak Case with Foam (Black) is an injection-molded case made of HPX high performance resin, that is virtually unbreakable, dent-resistant and shatter-resistant. It is tough, rugged, lightweight, airtight and watertight. There is a permanently attached Vortex valve that automatically adjusts air pressure without letting in water, and won't unscrew from the case. Press & Pull latches open with the push of a button, yet stay closed securely under impact or stress. The case has unbreakable molded-in hasps that allow the addition of standard size padlocks. It has hinges with integrated feet that hold fast under impact, and create a flat surface for upright stability. It is carried by three double-layered, soft-grip, solid-core handles, lightweight retractable, telescoping handle and rugged in-line wheels.
This case has a multilayer cubed foam bottom and a convoluted foam pad in the lid.
Injection-molded case made of HPX high performance resin is virtually unbreakable, dent-resistant and shatter-resistant
Tough, rugged and lightweight
Multilayer cubed foam bottom and a convoluted foam pad in the lid
Permanently attached Vortex valve automatically adjusts air pressure without letting in water, and won't unscrew from the case
Press & Pull latches open with the push of a button, yet stay closed securely under impact or stress
Two unbreakable molded-in hasps allow the addition of standard size padlocks, offering another measure of security
Hinges with integrated feet hold fast under impact and create a flat surface for upright stability
Molded-in stacking ribs provide no-slip stability for multiple case-stacking during storage or transport
Carrying options
- Three double-layered, soft-grip, solid-core carrying handles provides strong, durable comfort
- Lightweight, retractable, telescoping handle locks in place
- Rugged in-line wheels have shielded ball bearings, and are composed of a nylon core encased in a polyurethane tread. The wheels are mounted on a solid axle for improved stability and ease of transport.
Tests
- Meets ATA 300 category 1 standards for transit cases
- Meets FED-STD-101C requirements for drops and vibration (loose cargo)
- Exceeds the specifications listed in MIL-STD-648C for vibration (sweep)
- Meets MIL-STD-810F for immersion and simulated rainfall
![]()
UPC: 825494000745
In the Box
- 2 x Nila Varsa V2 Bi-Color LED Fixture
- Yoke
- Power Cable
- Limited Lifetime Warranty
- 2 x Nila 40 Degree Medium Holographic Lens for Varsa LED Light
- 2 x Nila 20 Degree Spot Holographic Lens for Varsa LED Light
- 2 x Nila 10 Degree Narrow Spot Holographic Lens for Varsa LED Light
- 2 x Nila 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light
- 2 x Nila 60 Degree Wide Holographic Lens for Varsa LED Light
- 2 x Nila 80 Degree Flood Holographic Lens for Varsa LED Light
- 2 x Nila Varsa Barndoor Set
- Nila Battery Adapter Plate (V-Mount)
- Pelican iM2950 Storm Trak Case with Foam (Black)
- Foam Set
- Guaranteed for Life
Table of Contents
- Description
- Nila Varsa V2 Bi-Color LED Fixture
- Nila 40 Degree Medium Holographic Lens for Varsa LED Light
- Nila 20 Degree Spot Holographic Lens for Varsa LED Light
- Nila 10 Degree Narrow Spot Holographic Lens for Varsa LED Light
- Nila 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light
- Nila 60 Degree Wide Holographic Lens for Varsa LED Light
- Nila 80 Degree Flood Holographic Lens for Varsa LED Light
- Nila Varsa Barndoor Set
- Nila Battery Adapter Plate (V-Mount)
- Pelican iM2950 Storm Trak Case with Foam (Black)
Nila Varsa V2 Bi-Color LED Fixture Specs
Light Fixture
| Beam Angle | 10 to 80° |
| Color Temperature | 2800 to 6400K |
| Color Accuracy Standard | CRI 90 at 5600K
TLCI 86 at 5600K |
| Cooling System | Passive |
| Dimming | Yes, 0 to 100% (Continuous) |
| Display | LCD |
| Housing Material | Aluminum |
| Photometrics | 1200 fc / 13,000 lux at 10' / 3 m |
| Expected Lamp Life | 20000 Hours |
| Fixture Dimensions | Overall: 7.0 x 6.5 x 7.0" / 17.8 x 16.5 x 17.8 cm |
| Fixture Weight | 11 lb / 4.99 kg (Including Yoke) |
Connectors
| Battery Plate | None |
| Power Input Connector | 4-Pin XLR |
| DMX Connector | RJ45 |
Mounting
| Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver |
| Accessory Mount | None |
Yoke
| Yoke Material | Aluminum |
| Yoke Type | Yoke/Bracket |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 10 to 18 VDC at 0.65 A |
| Power Source | AC Adapter, External Battery |
| Max Power Consumption | 75 W |
Cable
| Cable Length | 10' / 3.05 m |
Physical
| Certifications | CE, ETL, as per Manufacturer |
| IP Rating | IP65 |
| Operating Temperature | -22 to 122°F / -30 to 50°C |
Nila 40 Degree Medium Holographic Lens for Varsa LED Light Specs
General
| Beam Angle | 40° |
| Compatibility | Varsa |
Packaging Info
| Package Weight | 0.3 lb |
| Box Dimensions (LxWxH) | 7.8 x 7.4 x 2.2" |
Nila 20 Degree Spot Holographic Lens for Varsa LED Light Specs
General
| Beam Angle | 20° |
| Compatibility | Varsa |
Packaging Info
| Package Weight | 0.04 lb |
| Box Dimensions (LxWxH) | 6 x 6 x 0.2" |
Nila 10 Degree Narrow Spot Holographic Lens for Varsa LED Light Specs
General
| Beam Angle | 10° |
| Compatibility | Varsa |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 5.9 x 5.8 x 0.5" |
Nila 10 x 60 Degree Elliptical Holographic Lens for Varsa LED Light Specs
General
| Beam Angle | 10 x 60° |
| Compatibility | Varsa |
Packaging Info
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 6.1 x 4.3 x 0.5" |
Nila 60 Degree Wide Holographic Lens for Varsa LED Light Specs
General
| Beam Angle | 60° |
| Compatibility | Varsa |
Packaging Info
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 6.2 x 3.1 x 1" |
Nila 80 Degree Flood Holographic Lens for Varsa LED Light Specs
General
| Beam Angle | 80° |
| Compatibility | Varsa |
Packaging Info
| Package Weight | 0.15 lb |
| Box Dimensions (LxWxH) | 5.9 x 5.8 x 1.4" |
Nila Varsa Barndoor Set Specs
Packaging Info
| Package Weight | 2.05 lb |
| Box Dimensions (LxWxH) | 9.7 x 9.5 x 2.4" |
Nila Battery Adapter Plate (V-Mount) Specs
Packaging Info
| Package Weight | 1.35 lb |
| Box Dimensions (LxWxH) | 8.7 x 5.3 x 2.3" |
Pelican iM2950 Storm Trak Case with Foam (Black) Specs
| Carry/Transport Options | Top Handle, Side Handle, Telescoping Handle, Wheels |
| Closure Type | Latch |
| Materials | Resin |
| Interior Contents | Cube/Diced Foam |
| Exterior Dimensions | 31.3 x 20.4 x 12.2" / 79.5 x 51.8 x 31 cm |
| Interior Dimensions | 29 x 18 x 10.5" / 73.7 x 45.7 x 26.7 cm |
| Watertight | Yes |
| Weight | 28.7 lb / 13.0 kg |
Packaging Info
| Package Weight | 27.5 lb |
| Box Dimensions (LxWxH) | 31 x 21 x 12.5" |
