Description
Nimbus WiMi5200 Overview

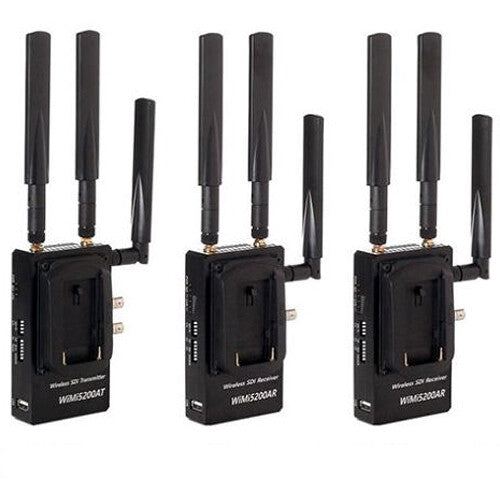

Wirelessly transmit high-quality HD video up to 1080p60 up to 4921' away using a 5 GHz Wi-Fi signal with this WiMi5200A Wireless Transmission System Bundle from Nimbus. The bundle includes one WiMi5200A 3G-SDI H.264 encoder transmitter and two WiMi5200A 3G-SDI decoder/receivers.
The transmitter can encode and send 3G/HD/SD-SDI video to both receivers simultaneously with virtual zero latency. Each unit features an L-series battery plate, a DCA12M DC power adapter, a 1/4"-20 mounting thread, and three adjustable RP-SMA antennas.
Nimbus WiMi5200A Wireless 3G-SDI H.264 Encoder/Transmitter
The WiMi5200A Wireless 3G-SDI H.264 Encoder/Transmitter from Nimbus pairs with an optional WiMi5200A receiver as a point-to-point Wi-Fi transmission system with a 4921' range and only 30ms latency. With both units featuring built-in 5 GHz Wi-Fi, no additional network connection is required. The transmitter encodes and sends up to a 1080p60 SDI signal as an H.264 encoded signal, and the receiver decodes and outputs it as video.
The WiMi5200A transmitter features a 3G/HD/SD-SDI input and 3G/HD/SD-SDI loop output. It offers a 1/4"-20 mounting thread on the bottom and comes with an L-series battery plate for on-camera portable operation. It also offers a 2-pin LEMO power connector for continuous power. Batteries and power adapters are sold separately.
Key Features
- 4921' range over 5 GHz Wi-Fi
- 30ms latency
- Encodes and sends up to a 1080p60 SDI signal in H.264 MPEG-4 Parts 10: AVC (decoded by optional receiver)
- 3G/HD/SD-SDI input and loop output
- Baseline profile with level 4.2
- DIP switch selection of Wi-Fi frequency and encoding rate
- USB firmware update port
- 1/4"-20 mounting thread
- L-series battery plate included
- 2-pin LEMO power input
Nimbus WiMi5200A Wireless 3G-SDI H.264 Decoder/Receiver
The WiMi5200A Wireless 3G-SDI H.264 Decoder/Receiver from Nimbus pairs with an optional WiMi5200A transmitter as a point-to-point Wi-Fi transmission system with a 4921' range and only 30ms latency. With both units featuring built-in 5 GHz Wi-Fi, no additional network connection is required. The receiver accepts up to a 1080p60 SDI signal encoded in H.264 by the transmitter, and it decodes and outputs it as video.
The WiMi5200A receiver features a single 3G/HD/SD-SDI output. It offers a 1/4"-20 mounting thread on the bottom and comes with an L-series battery plate as well as a power adapter. Batteries are sold separately.
Key Features
- 4921' range over 5 GHz Wi-Fi
- 30ms latency
- Up to 1080p60 SDI resolution
- Decodes H.264 file received from the transmitter and outputs it as video
- Single 3G/HD/SD-SDI output
- Baseline profile with level 4.2
- L-series battery plate and power adapter included
- 1/4"-20 mounting thread
In the Box
- Nimbus WiMi5200A Wireless 3G-SDI H.264 Encoder/Transmitter

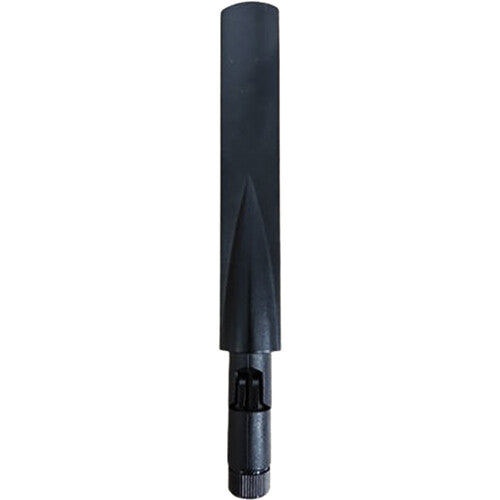

- 3 x 6 dBi Bar Antenna
- Sony L-Series Battery Plate
- Limited 1-Year Warranty
- 2 x Nimbus WiMi5200A Wireless 3G-SDI H.264 Decoder/Receiver
- 3 x 6 dBi Bar Antenna
- Sony L-Series Battery Plate

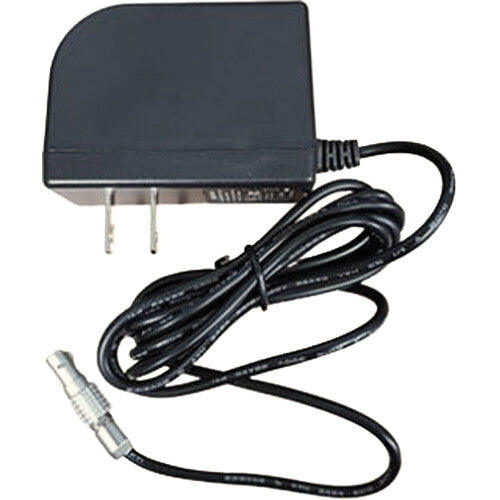

- Nimbus DCA12M Mini 12 VDC Adapter for WiMi6220, WiMi5150A, and WiMi5200
- Limited 1-Year Warranty
Nimbus WiMi5200A Wireless 3G-SDI H.264 Encoder/Transmitter Specs
| Wireless Range | 4921.26' / 1500 m (Line-of-Sight) |
| # of Channels | 12 (40 MHz) |
| Latency | ? 30 ms |
| Wi-Fi | 5 GHz Wi-Fi 4 (802.11n) |
| Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Input 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Loop Output |
| Embedded Audio | SDI |
| Video Format |
SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080PsF at 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps |
| Video Standard Compliance | SMPTE 274M/296M |
| Battery Support | 1 x Sony L-Series / NP-F Type |
| Power Connector | 1 x 2-Pin LEMO Input |
| Mounting | 1 x 1/4"-20 Female |
| Dimensions | 4.65 x 2.68 x 0.98" / 11.8 x 6.8 x 2.5 cm |
| Weight | 0.57 lb / 260 g |
Nimbus WiMi5200A Wireless 3G-SDI H.264 Decoder/Receiver Specs
| Wireless Range | 4921.26' / 1500 m (Line-of-Sight) |
| # of Channels | 12 (40 MHz) |
| Latency | ? 30 ms |
| Wi-Fi | 5 GHz Wi-Fi 4 (802.11n) |
| Video Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) Output |
| Embedded Audio | SDI |
| Video Format |
SDI/BNC: 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps SDI/BNC: 1080PsF at 25, 29.97, 30 fps SDI/BNC: 1080i at 50, 59.94, 60 fps SDI/BNC: 720p at 50, 59.94, 60 fps SDI/BNC: 576i at 50 fps SDI/BNC: 480i at 59.94 fps |
| Video Standard Compliance | SMPTE 274M/296M |
| Battery Support | 1 x Sony L-Series / NP-F Type |
| Power Connector | 1 x 2-Pin LEMO Input |
| Mounting | 1 x 1/4"-20 Female |
| Dimensions | 4.65 x 2.68 x 0.98" / 11.8 x 6.8 x 2.5 cm |
| Weight | 0.57 lb / 260 g |
