Description

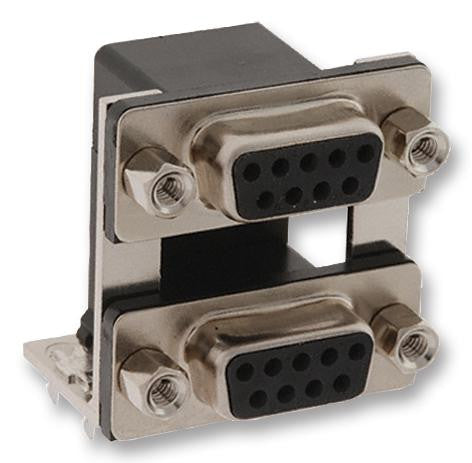

The 178-009-513R491 is a 9-way Female over Female Right Angle Dual Ports D-sub Connector, 178 series, with nickel-plated shell, gold-plated brass contacts, PA9T insulation and 4-40 flush insert/fork board locks. Nickel shell has indents to provide grounding and additional retention.
- Black colour insulator
- High performance stamped contacts
- Provides proper mating while maximizing available board space
- Metal shell for improved shielding
- Fully intermateable with other D-sub connectors
- 5A Current rating
- 1000MR Insulation resistance
- -55 to +105�C Temperature range
Applications
Industrial
Product details
| Upper D Sub Shell Size | DE |
| Upper D Sub Gender | Receptacle |
| Lower D Sub Shell Size | DE |
| Product Range | 178 Series |
| Contact Termination Type | Through Hole |
| No. of Contacts Lower D Sub | 9 |
| Connector Body Material | Steel Body |
| Lower D Sub Gender | Receptacle |
| No. of Contacts Upper D Sub | 9Contacts |
Other details
| Brand | NORCOMP |
| Part Number | 178-009-513R491 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
