| ₹ 1836.86 includes GST and import duties. | |
| B2B customers can avail ₹ 280.12 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The IL485WE is a RS-485 galvanically isolated high speed Differential Bus Transceiver designed for bidirectional data communication on balanced transmission lines. The IL485W uses patented IsoLoop® technology, which meets the ANSI standards EIA/TIA-422-B and RS485. The IL485W has current limiting and thermal shutdown features to protect against output short circuits and bus contention situations where these may cause excessive power dissipation. With a 1ns pulse skew and 16ns propagation delay, the IL485W is ideal for PROFIBUS applications.
- Thermal shutdown protection
- Designed for multi-point bus transmission on long bus lines in noisy environments
- 2500VRMS Isolation (1 minute)
- 25ns Maximum propagation delay
- 35Mbps Data rate
- ±60mA Driver output capability
Applications
Communications & Networking
Product details
| Operating Temperature Min | -40°C |

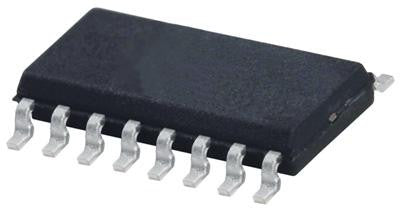

| Driver Case Style | SOIC |
| No. of Receivers | 1Receivers |
| Operating Temperature Max | 85°C |
| No. of Pins | 16Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| No. of Drivers | - |
| Supply Voltage Min | 4.5V |
| IC Interface Type | RS422, RS485 |
| Device Type | RS485 Transceiver |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| MSL | - |
Other details
| Brand | NVE |
| Part Number | IL485WE |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1800.12 |
| 3-5 | ₹ 1781.75 |
| 5-10 | ₹ 1745.02 |
| 10+ | ₹ 1708.28 |
Bulk discount will be automatically applied during checkout based on quantity.
