NXP LS1043ARDB-PD Reference Design Board LS1043A Communications Processor Qoriq

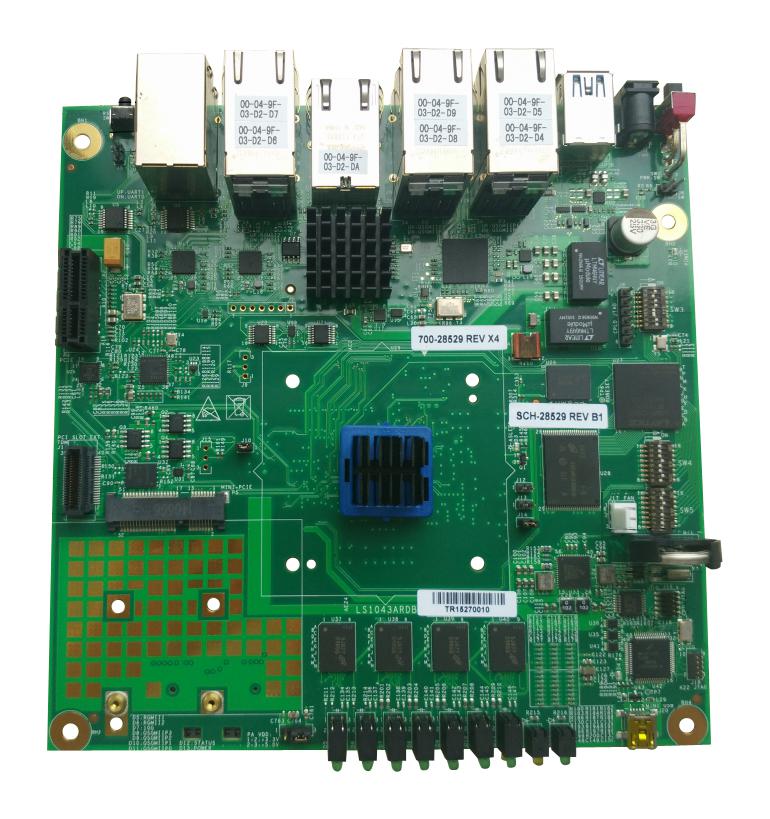

QorIQ« LS1043A reference design board. It is designed to exercise most capabilities of the LS1043A device NXP's first quad-core, 64bit Arm« based processor for embedded networking and industrial infrastructure. Features x1 RJ45 connector for Ethernet 10G support, x4 RJ45 connector for QSGMII support UART, one RJ45 to DB9 connector with two UART ports, UART1 is routed to CMSISDAP circuit and supports USB port to access serial port as a console. Basic peripherals and interconnect such as one PCIe slot, one mini-PCIe connector, two super-speed USB 3.0 type A ports and supports x 1 USB 2.0 connection on the mini-PCIe connector.

• Supports single-ended clock input for generating various device frequencies
• Supports 2GB DDR4 SDRAM discrete devices
• 32bit DDR4 bus, supports data rates of up to 1600MT/s
• 16bit, 128MB NOR flash
• 512MB SLC NAND flash with ECC support
• SDHC port connects directly to a full SD/MMC slot
• 16MB high-speed flash memory (up to 108MHz in the single-transfer rate mode)
• JTAG/COP for debugging
• Thermal monitor

Other details

Brand	NXP
Part Number	LS1043ARDB-PD
Quantity	Each
Operating Instructions EN
