Description

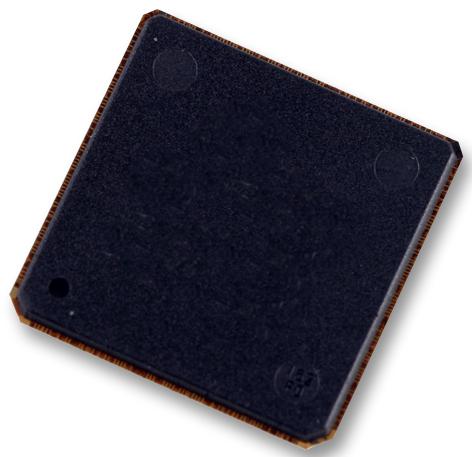

The MCIMX287CVM4B is a multimedia Application Processor. Provides a high level of peripheral integration display, connectivity, real-time control, security and networking. Backed by strong enablement for designing differentiated products in less time. The integrated power management unit (PMU) on the i.MX28 is composed of a triple output DC-DC switching converter and multiple linear regulators. These provide power sequencing for the device and its I/O peripherals such as memories and SD cards, as well as provide battery charging capability for Li-Ion batteries.
- 454MHz ARM926EJ-S core with 16kB/32kB Cache
- Dual CAN interfaces
- LCD controller with touchscreen
- NAND support - SLC/MLC and eMMC 4.4 managed
- Hardware BCH (up to 20-bit correction)
- Dual High speed USB with embedded PHY
- Temperature sensor for thermal protection
- Multiple connectivity ports
- 3.3V I/O, 10-year Lifetime
Applications
Consumer Electronics, Industrial, Portable Devices, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Product Range: i.MX Family i.MX28 Series Microprocessors |
| No. of CPU Cores: 1Cores |
| Program Memory Size: 128KB |
| IC Case / Package: MAPBGA |
| No. of Pins: 289Pins |
| Supply Voltage Min: 1.62V |
| Supply Voltage Max: 2.1V |
| Operating Frequency Max: 454MHz |
| Interfaces: I2C, I2S, SPI, UART, USB |
| No. of I/O's: 124I/O's |
| Data Bus Width: 32 bit |
| IC Mounting: Surface Mount |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Qualification: - |
| MPU Series: i.MX28 |
| MPU Family: i.MX |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | NXP |
| Part Number | MCIMX287CVM4B |
| Quantity | Each |
| Technical Data Sheet EN |  |
