| ₹ 244.46 includes GST and import duties. | |
| B2B customers can avail ₹ 37.28 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
This is a Power Load Switch, AEC-Q100, High Side, 1 Output, 20 V, 5 A/0.03 ohm out, WLCSP-15 product from NXP with the model number NX20P5090UKAZ
Product details
| Thermal Protection | Yes |
| Current Limit | 5A |
| On / Enable Input Polarity | Active Low |
| Operating Temperature Min | -40�C |
| No. of Outputs | 1Outputs |
| Operating Temperature Max | 85�C |
| No. of Pins | 15Pins |
| Distribution Switch Case Style | WLCSP |
| Input Voltage | 20V |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| Power Load Switch Type | High Side |
| Packaging | Cut Tape |
| On State Resistance | 0.03ohm |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NXP |
| Part Number | NX20P5090UKAZ |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

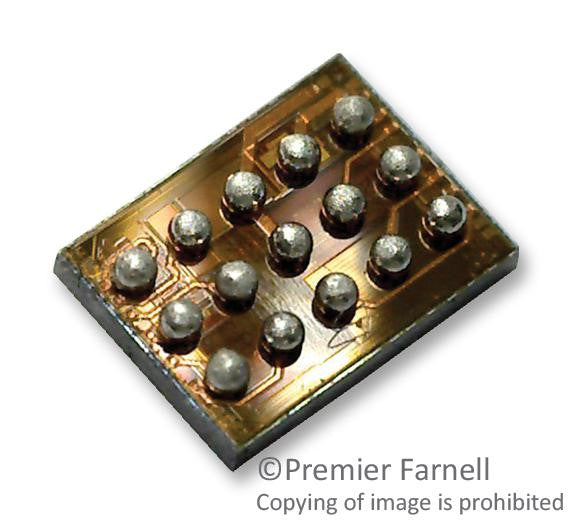

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 239.57 |
| 3-5 | ₹ 237.13 |
| 5-10 | ₹ 232.24 |
| 10+ | ₹ 227.35 |
Bulk discount will be automatically applied during checkout based on quantity.
