| ₹ 80.6 includes GST and import duties. | |
| B2B customers can avail ₹ 12.29 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

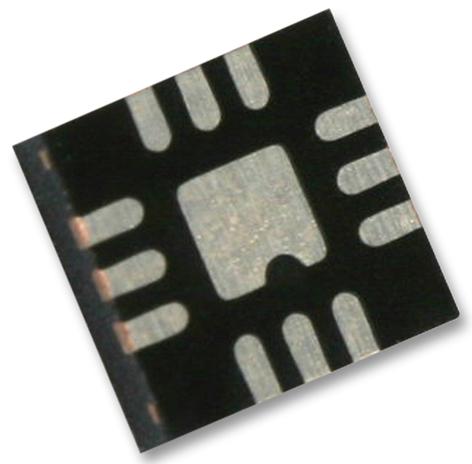

The NX3DV221GM is a high-speed USB 2.0 Switch with an enable. It is designed for the switching of high-speed USB 2.0 signals in handset and consumer applications. The wide bandwidth (1GHz) of this switch allows signal to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. It is designed for low bit-to-bit skew and high channel-to-channel noise isolation and is compatible with various standards, such as high-speed USB 2.0 (480Mbps).
- 2mA Maximum low-power mode when OE\ is high
- 6W Maximum ON resistance
- 0.1W Typical on-resistance mismatch between channels
- 6pF Typical ON-state capacitance
- 1GHz Typical high bandwidth
- Latch-up performance exceeds 100mA per JESD 78B class II level A
Audio, Sensing & Instrumentation, Power Management, Communications & Networking, Computers & Computer Peripherals
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | NXP |
| Part Number | NX3DV221GM,115 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD CadSoft_EAGLE EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 78.99 |
| 3-5 | ₹ 78.18 |
| 5-10 | ₹ 76.57 |
| 10+ | ₹ 74.96 |
Bulk discount will be automatically applied during checkout based on quantity.
