Description

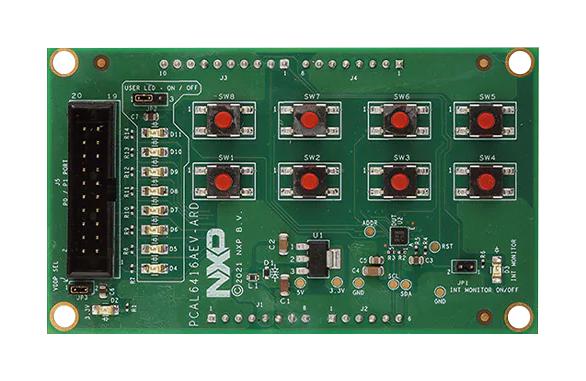

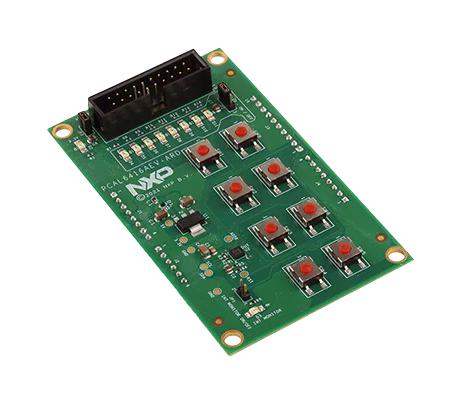

PCAL6416AEV-ARD is a PCAL6416A 16-bit GPIO Arduino® shield evaluation board. The PCAL6416AEV-ARD Arduino shield allows easy integration with Arduino EVKs to evaluate 16-bit general-purpose I/O expander features for interfacing to sensors, push buttons, keypad, etc. A graphical interface allows the user to easily explore the different functions of the GPIO expander to create an evaluation system.
- PCAL6416A low-voltage translating 16bit I²C-Bus/SMBus I/O expander
- I/O connector for external access to IC input-output pins
- Eight user switches connected to I/O pins of the IC
- Eight user LEDs connected to I/O pins of the IC
- Equipped with Arduino Uno R3 port for direct connection with Arduino devices
- Fully compliant with IMXRT1050 EVK board
- Fully compliant with LPCXpresso55S69 dev board
- Compliant with i.MX mini LPDDR4 EVK board
Contents
PCAL6416AEV-ARD Arduino shield, Quick reference card.
Product details
| Silicon Manufacturer: NXP |
| Core Architecture: - |
| Core Sub-Architecture: - |
| Silicon Core Number: PCAL6416A |
| Silicon Family Name: - |
| For Use With: Arduino EVKs To Evaluate 16-Bit General-Purpose I/O Expander |
| Kit Contents: Shield Evaluation Board PCAL6416A In Anti-Static Bag, Quick Start Guide |
| Product Range: - |
Other details
| Brand | NXP |
| Part Number | PCAL6416AEV-ARD |
| Quantity | Each |
| Technical Data Sheet EN |  |
