- 25 lb Load Capacity

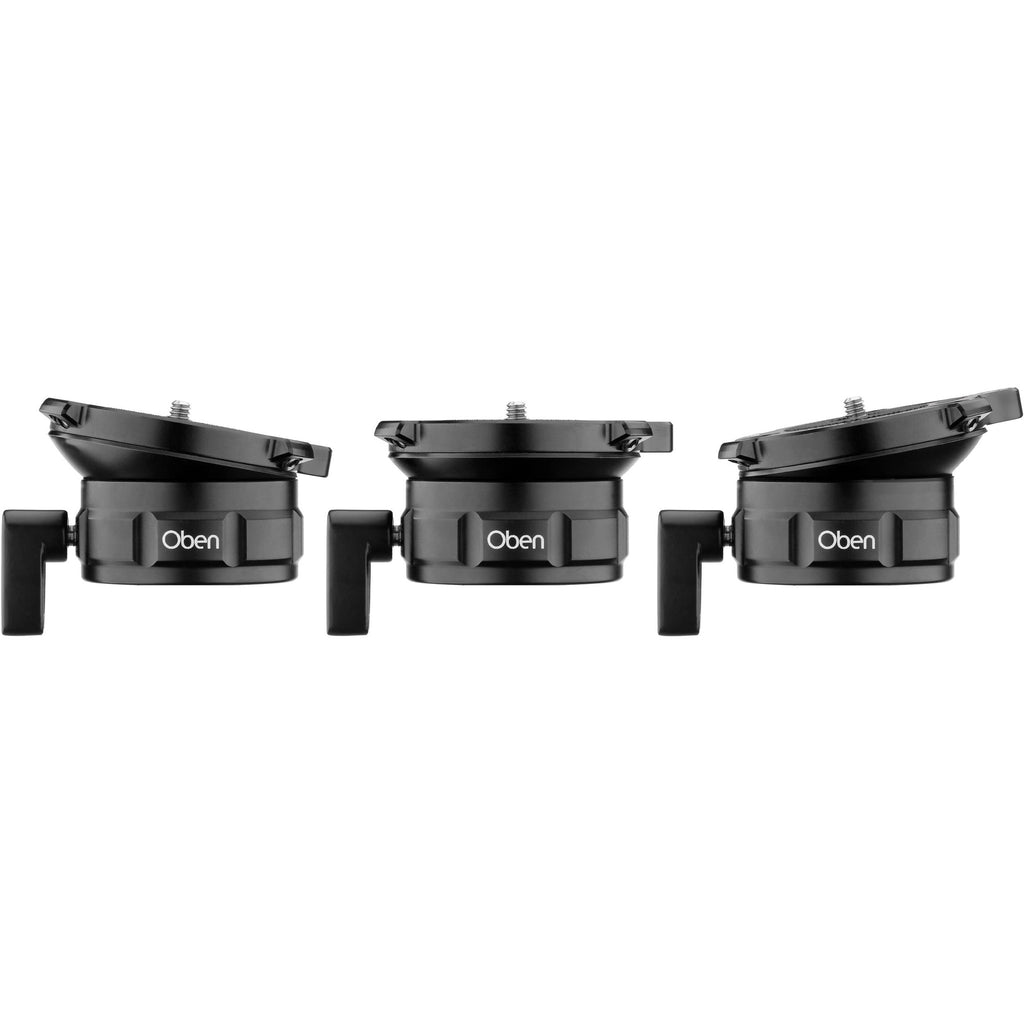

- 10° Adjustment Range In Any Direction
- 2.75" Platform Diameter

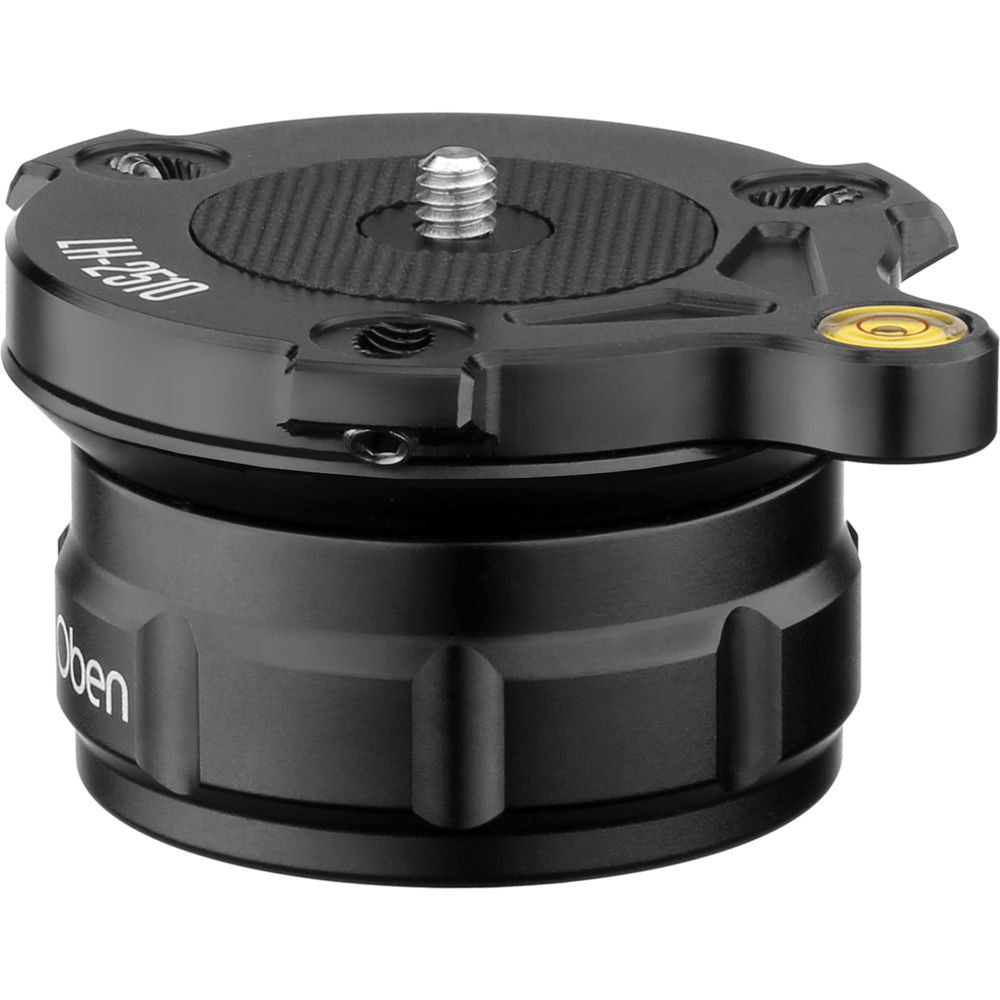

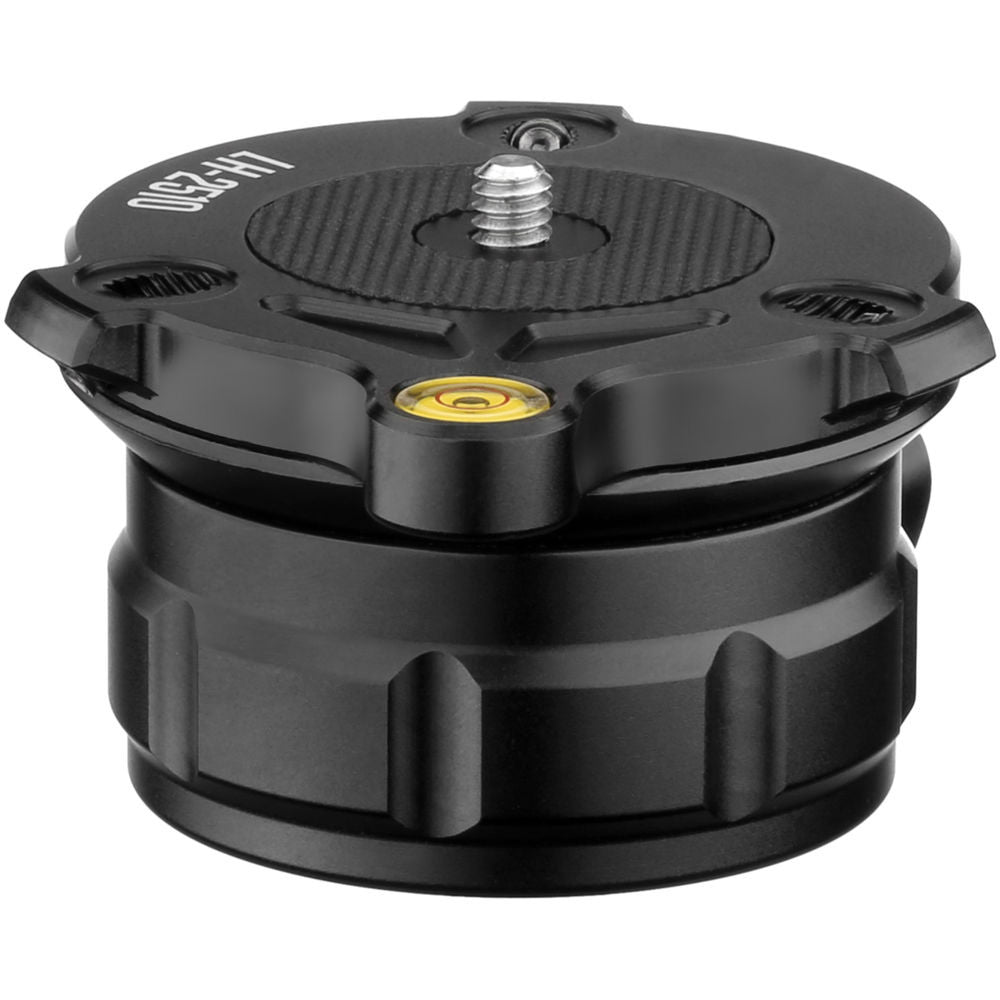

- Integrated Bubble Level

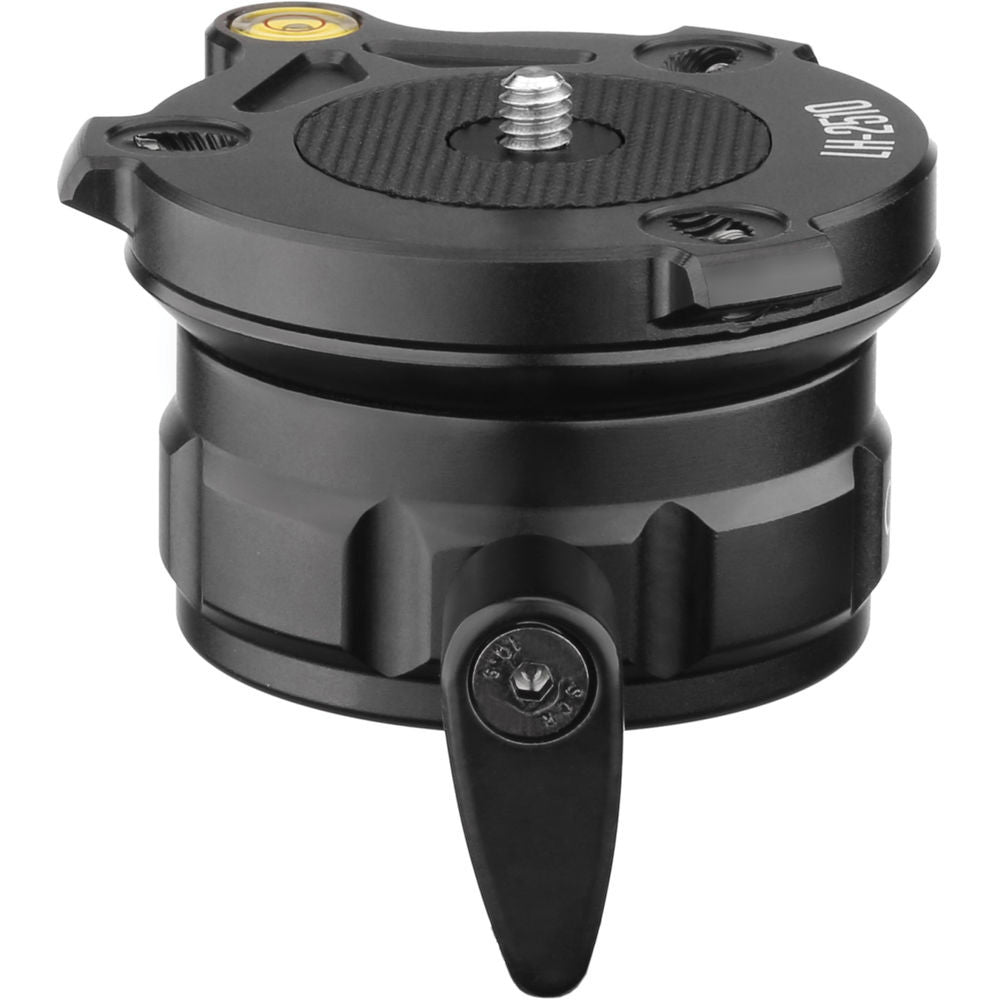

- Ratcheted Locking Knob
- Includes Bushing Adapters

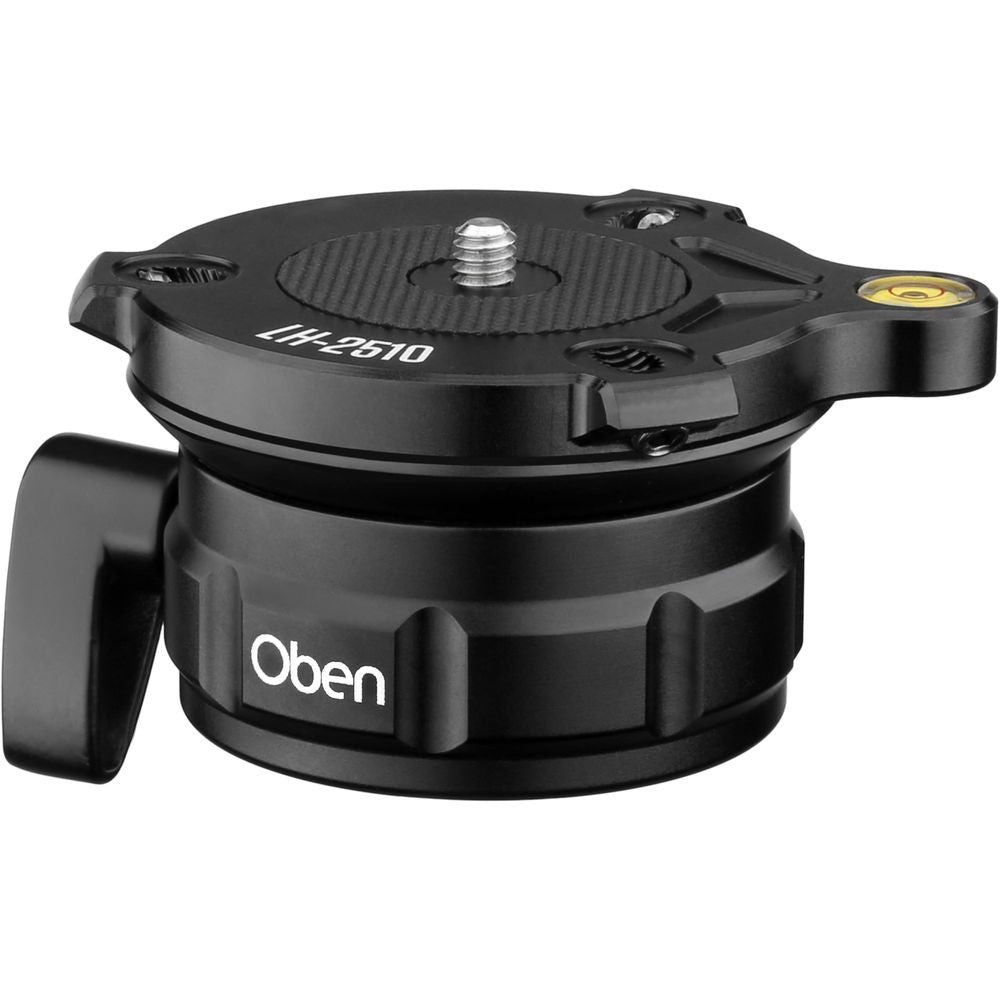

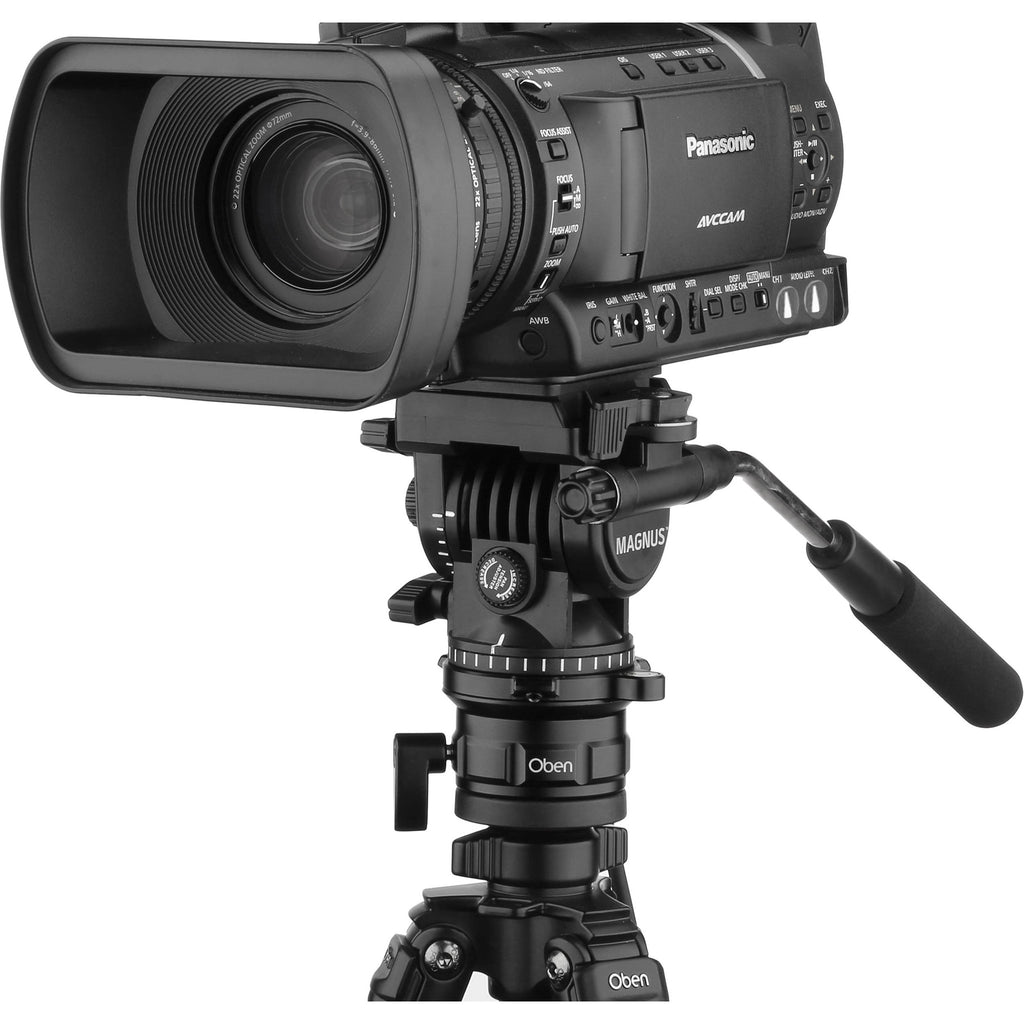

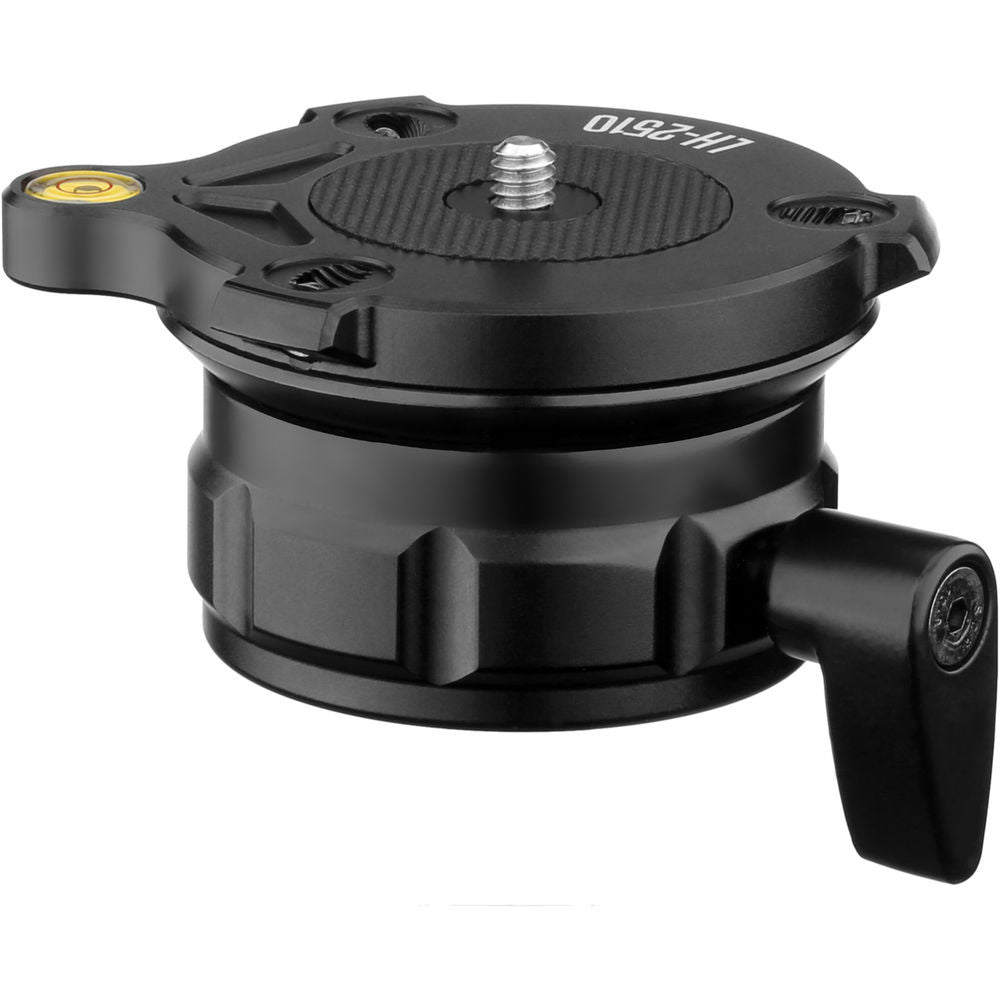

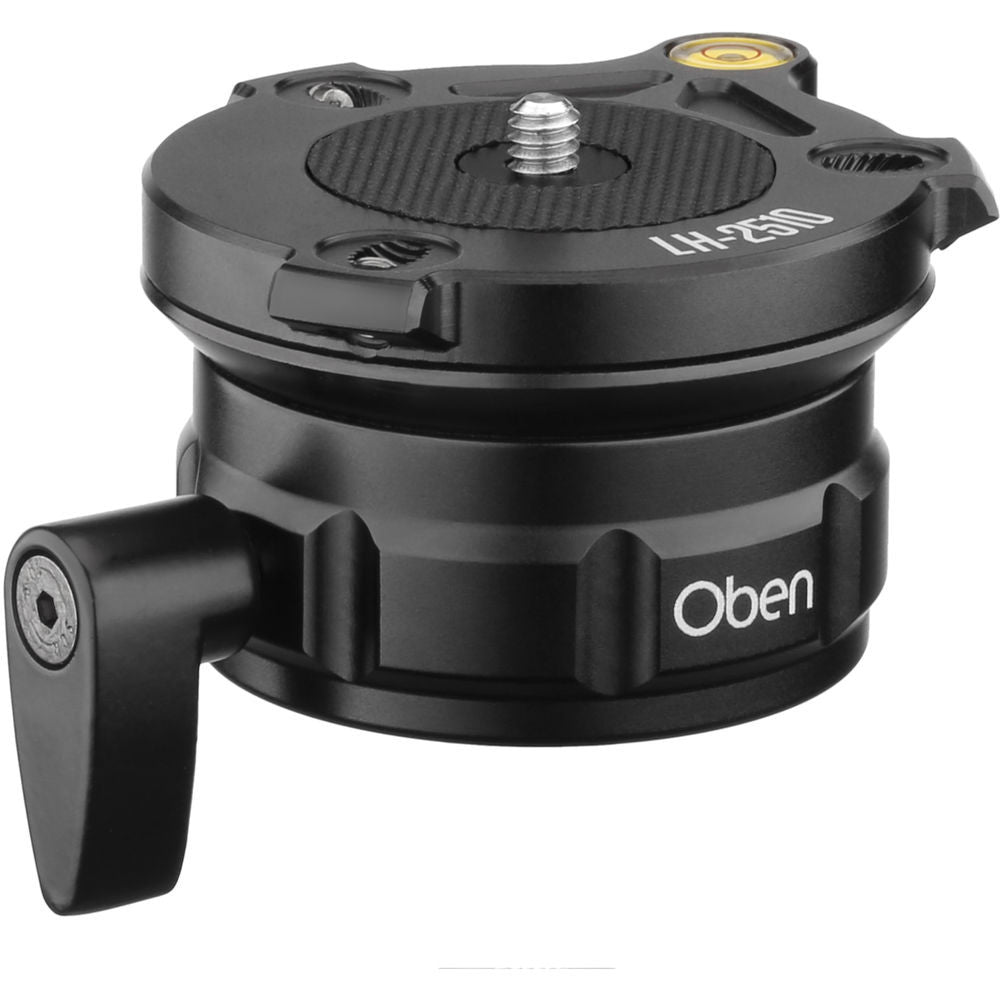

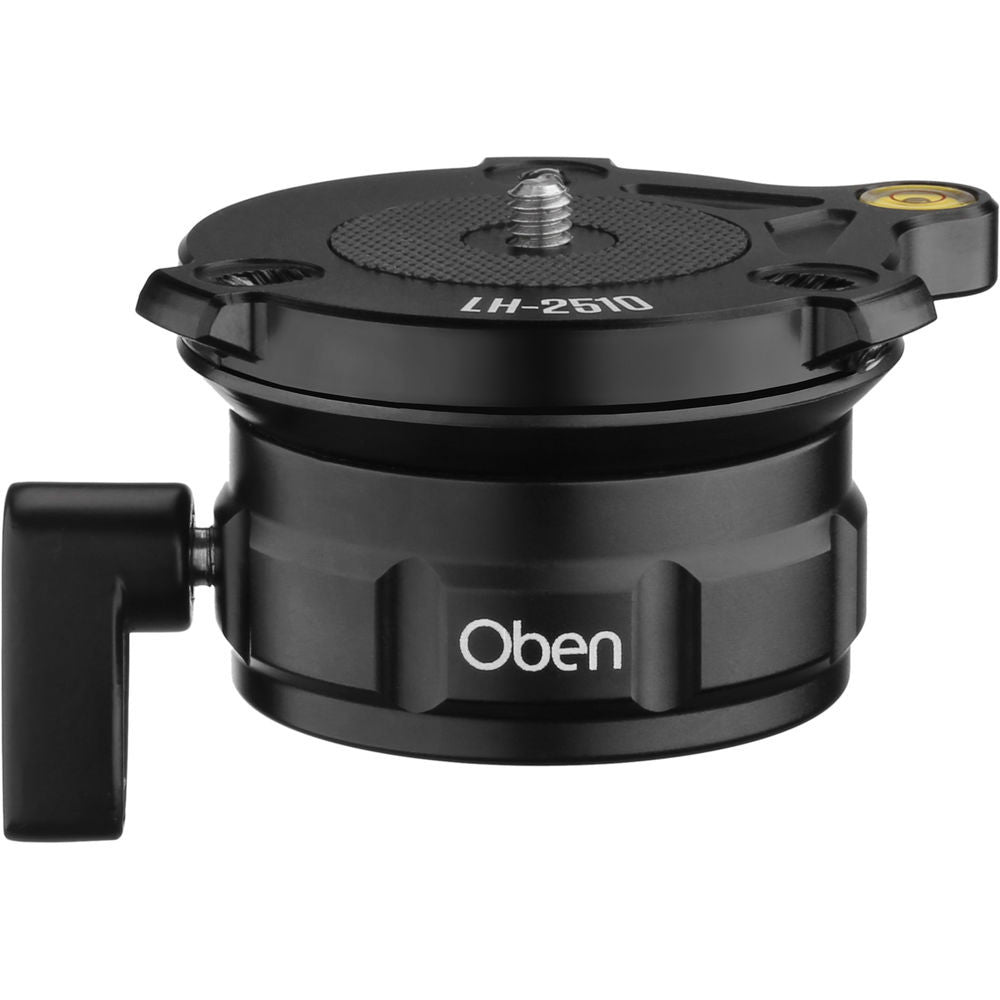

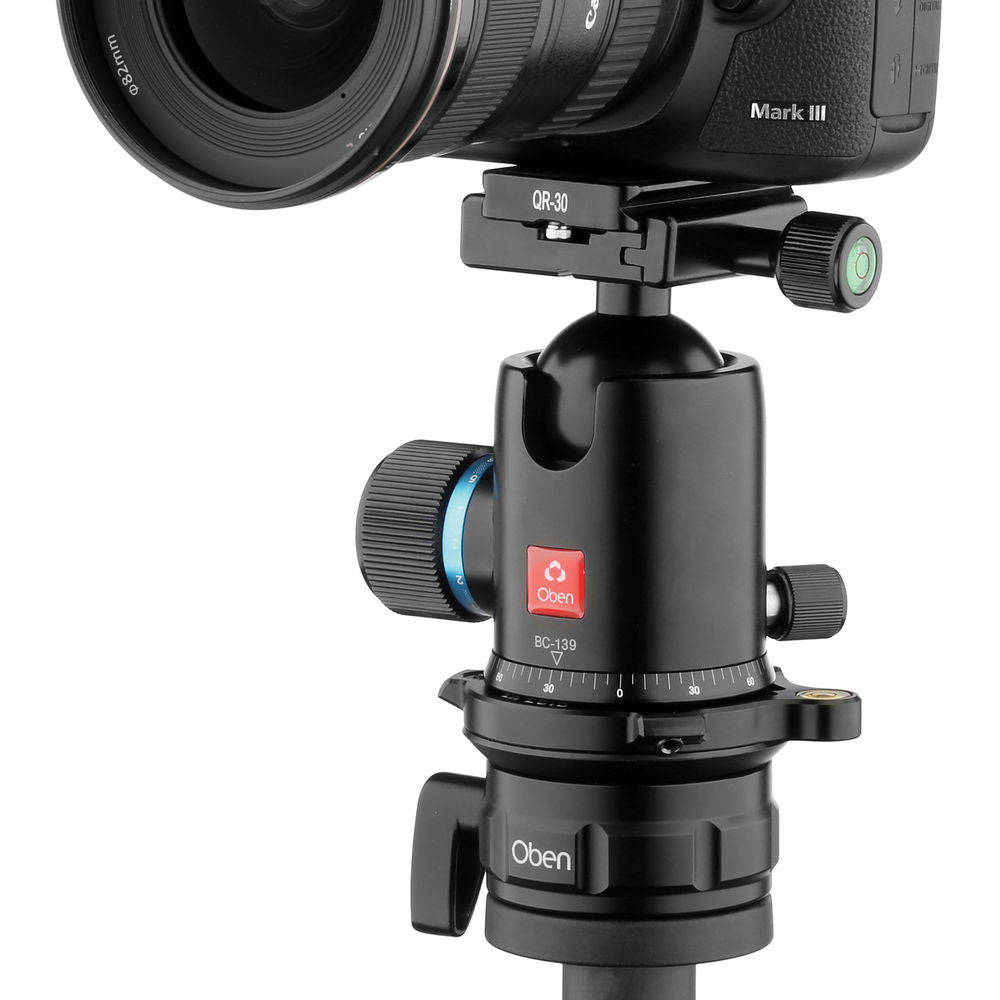

Especially helpful when shooting video pans or multiple panoramic images, the Oben LH-2510 Leveling Base Head can tilt 10° in any direction and hold up to 25 lb. It can be placed between a tripod and a head to allow you to level your camera without readjusting the tripod's legs. A bullseye bubble helps ensure that your base is level to the horizon, and a ratcheted knob adjusts friction and locks the base.

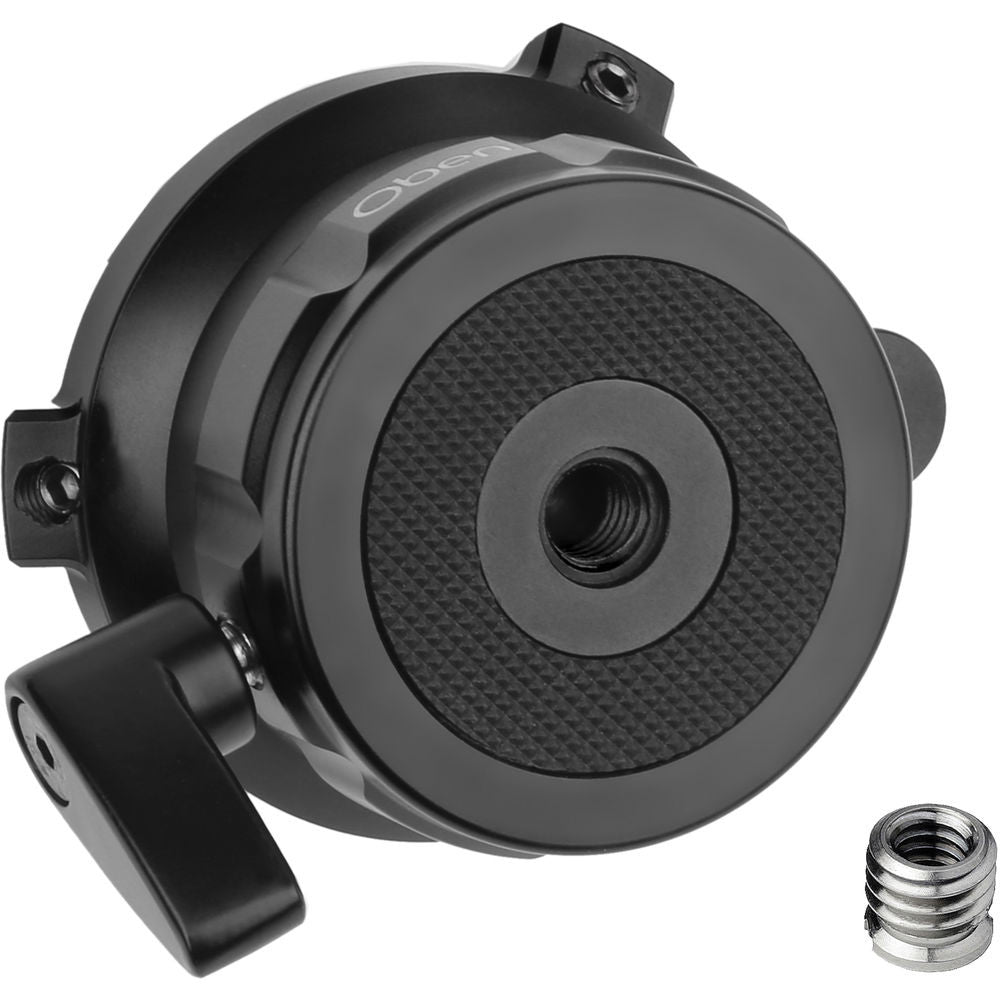

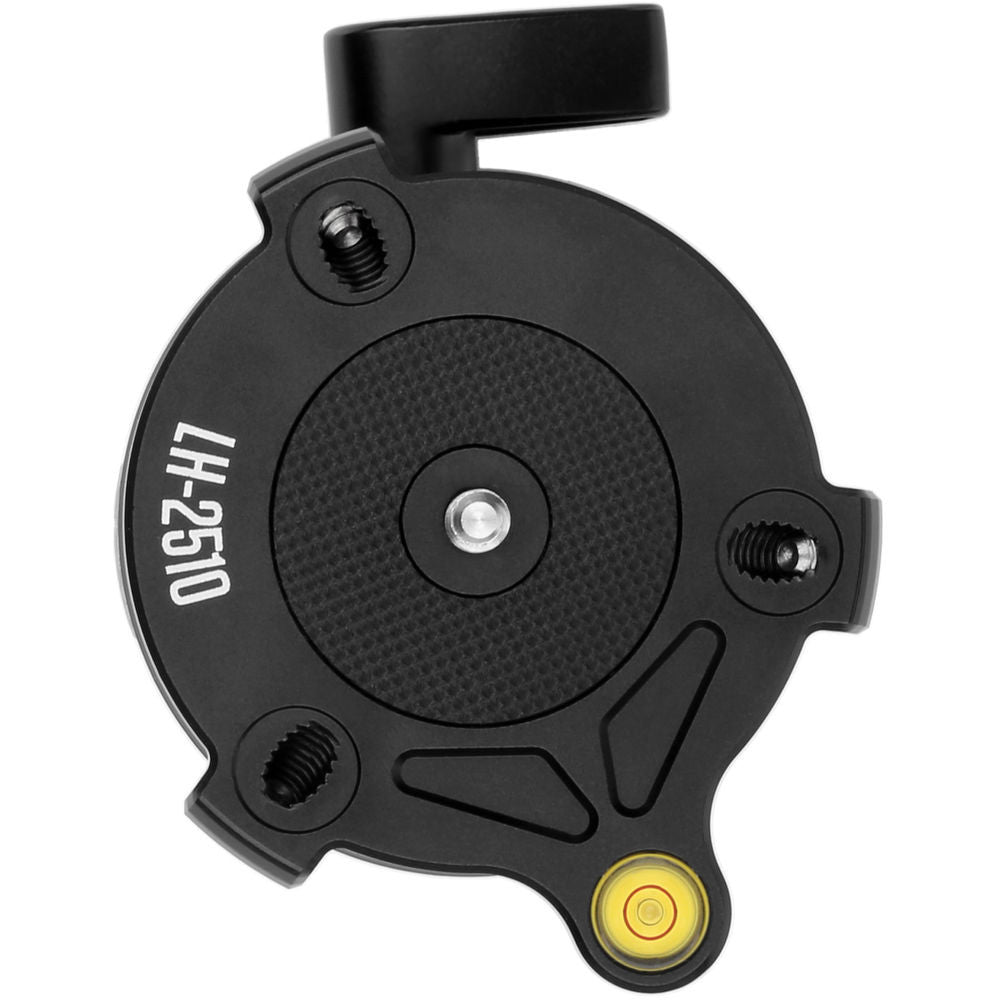

The LH-2510 is 2" high, and weighs 11 oz. It has a base diameter of 2.5" and a top platform diameter of 2.75". The bottom of the base has a 3/8"-16 female thread for attaching to the tripod and a 1/4"-20 male threaded stud on top for mounting a camera or head. Two bushing adapters are included to change the 1/4"-20 thread to 3/8"-16 and vice versa. A hex key is included to tighten three built-in set screws to the tripod head.
UPC: 847628586246
| Material | Aluminum alloy |
| Load Capacity | 25 lb (11.3 kg) |
| Height | 2" (5.1 cm) |
| Adjustment Range | 10° in any direction |
| Diameter | Base: 2.5" (6.3 cm)
Platform: 2.75" (7 cm) |
| Weight | 11 oz (312 g) |
| Packaging Info |
| Package Weight | 0.9 lb |
| Box Dimensions (LxWxH) | 3.8 x 3.8 x 2.5" |
In the Box
Oben LH-2510 Leveling Base Head
- 2 x Bushing Adapters
- Hex Key
- Limited 5-Year Warranty
