Description
Ocean Matrix 07HMHM0004 Overview
- 1Description
- 24x1 Switcher
- 38K60 Video Support
- 4Display Functions
- 5HDMI Audio Formats

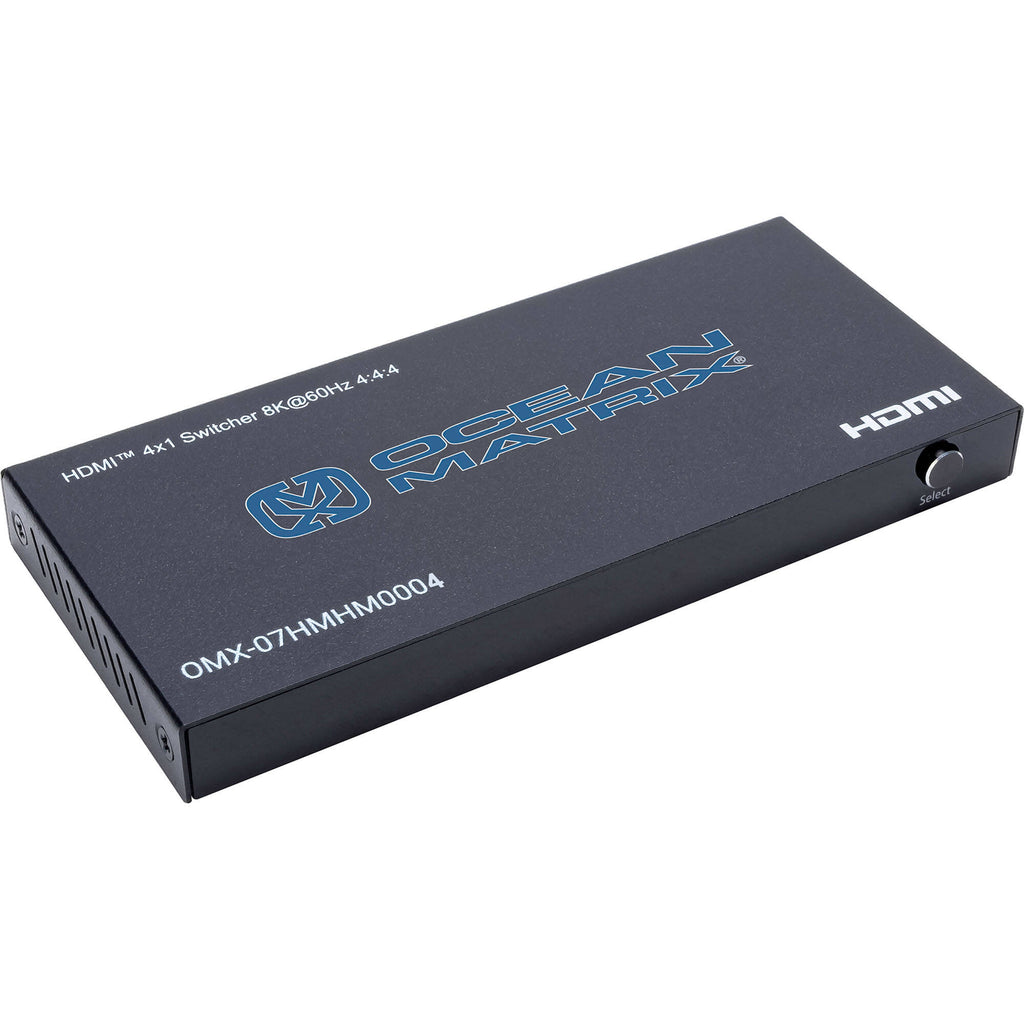

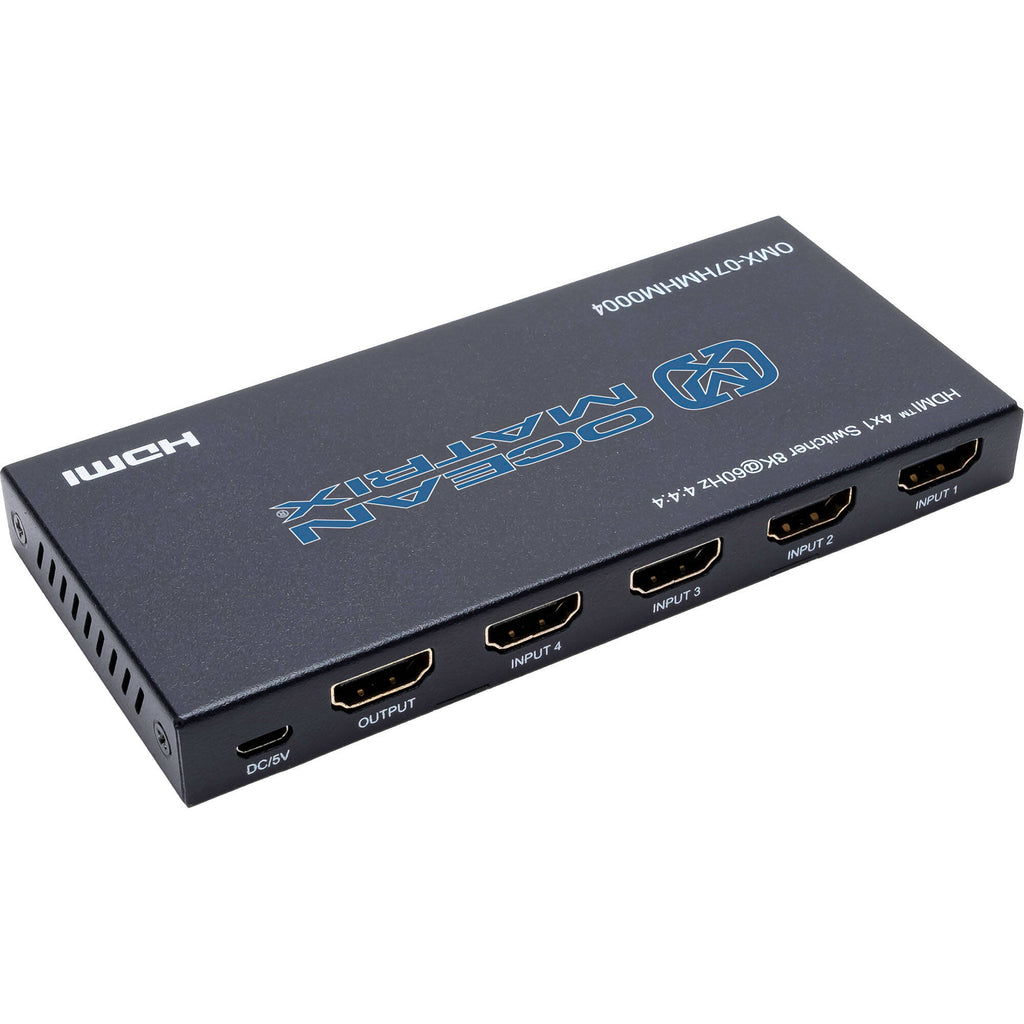

The 8K60 4:4:4 HDR HDCP 2.3 HDMI 4x1 Switcher from Ocean Matrix enables you to switch between four HDMI video sources for output to a single HDMI display. This switcher supports up to 8K60 4:4:4 12-bit resolution video, HDR, HDR10/10+, 3D, and HDCP 2.3 functions. It has four HDMI inputs, one HDMI output, and embedded HDMI audio pass through. The switcher incorporates an equalizer and a driver and offers retiming, variable refresh rates, an auto low-latency mode, and a quick frame transport function. Control options include manual, automatic, and remote control switching.
4x1 Switcher
Independent HDMI inputs enable you to connect up to four video sources and output video to a single HDMI display
8K60 Video Support
- Supports up to UHD 8K60, 4:4:4, 12-bit resolution video
- Supports HDR, HDR10/10+, and HDCP2.3 functions
- Total data transfer rates of up 48 Gb/s
Display Functions
- VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) functions
- Backwards compatibility with UHD 4K and 1080 ensures optimal digital signage use
HDMI Audio Formats
Supports LPCM 7.1-CH and Dolby Digital including DTS-HD Master Audio and Dolby TrueHD
In the Box
- Ocean Matrix 8K60 4:4:4 HDR HDCP 2.3 HDMI 4x1 Switcher

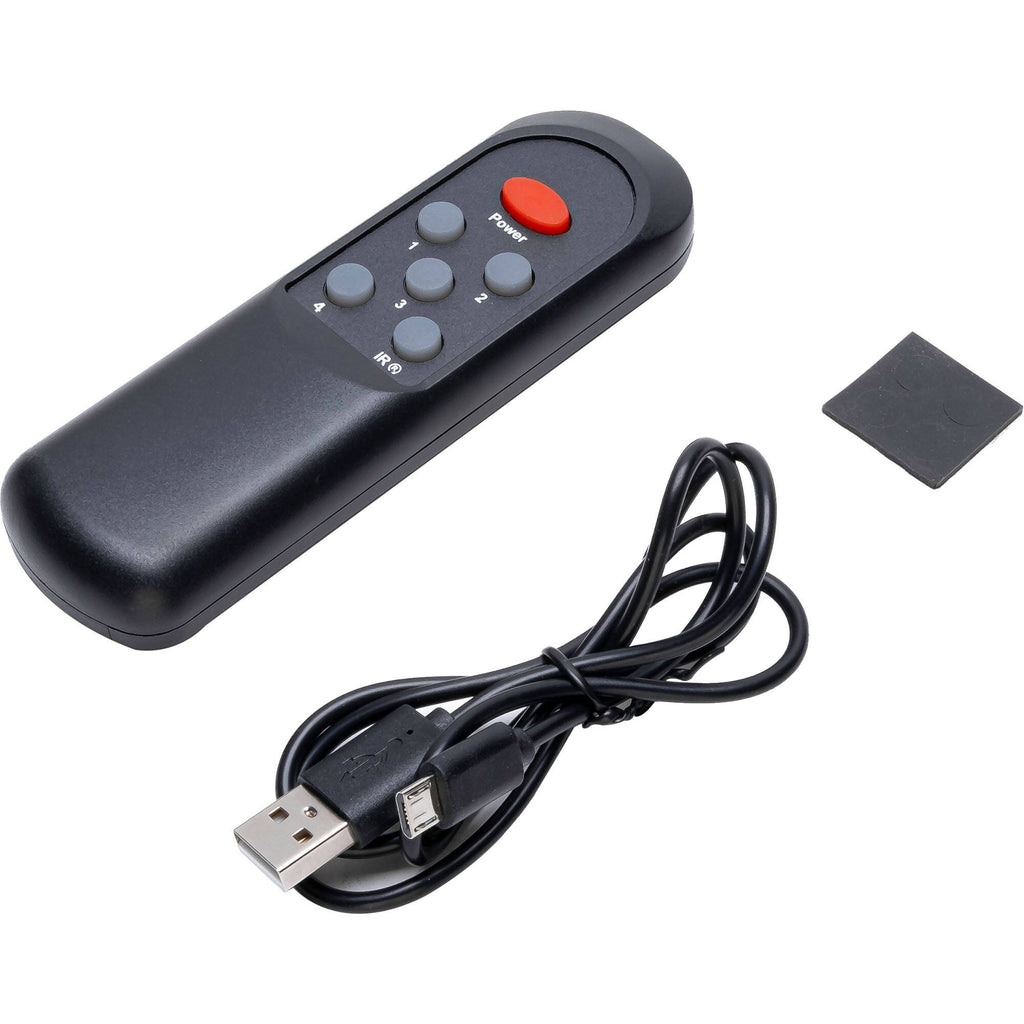

- USB-A to Micro-USB Power Cable
- Remote Control
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- 4x1 Switcher
- 8K60 Video Support
- Display Functions
- HDMI Audio Formats
Ocean Matrix 07HMHM0004 Specs
Processing
| Switching Type |

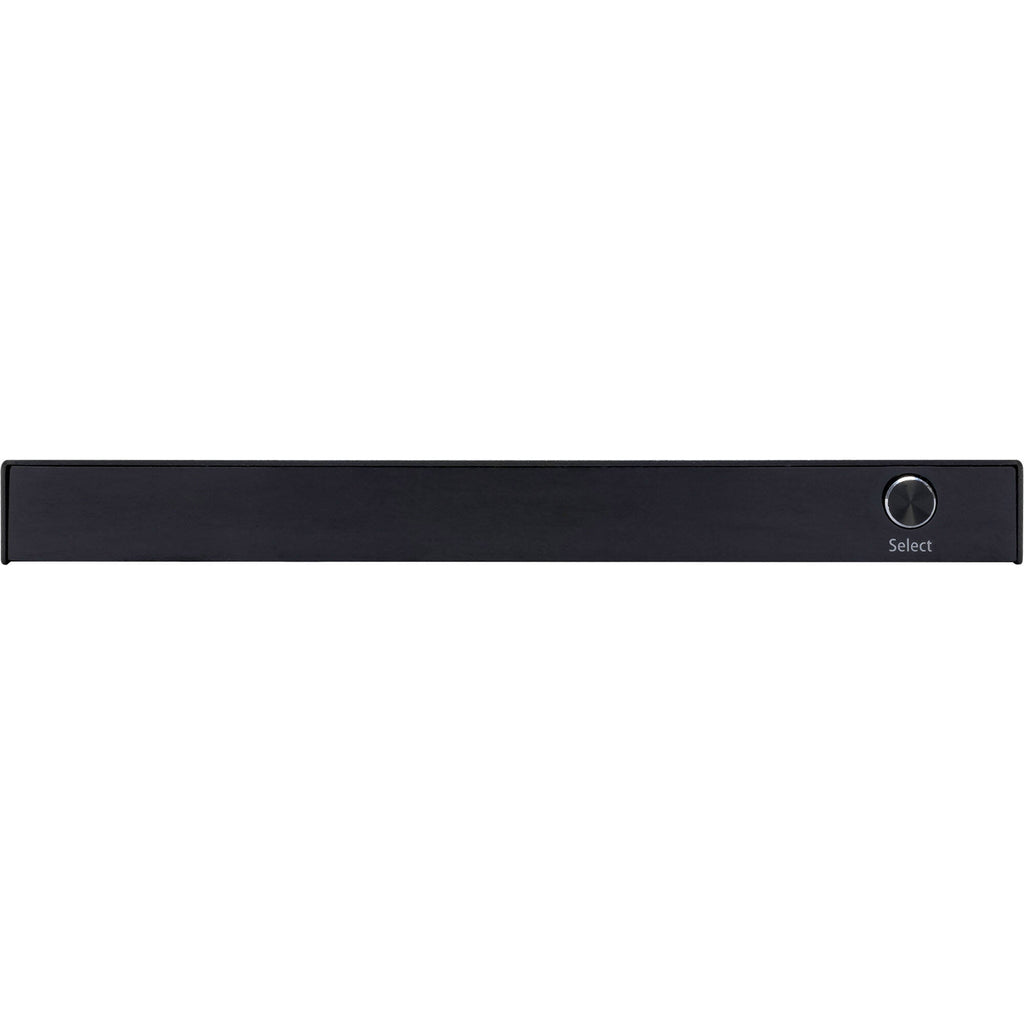

Pushbutton
|
| Processing Resolution |
8K at 60
|
| Color Processing |
12-Bit 4:4:4
|
Input

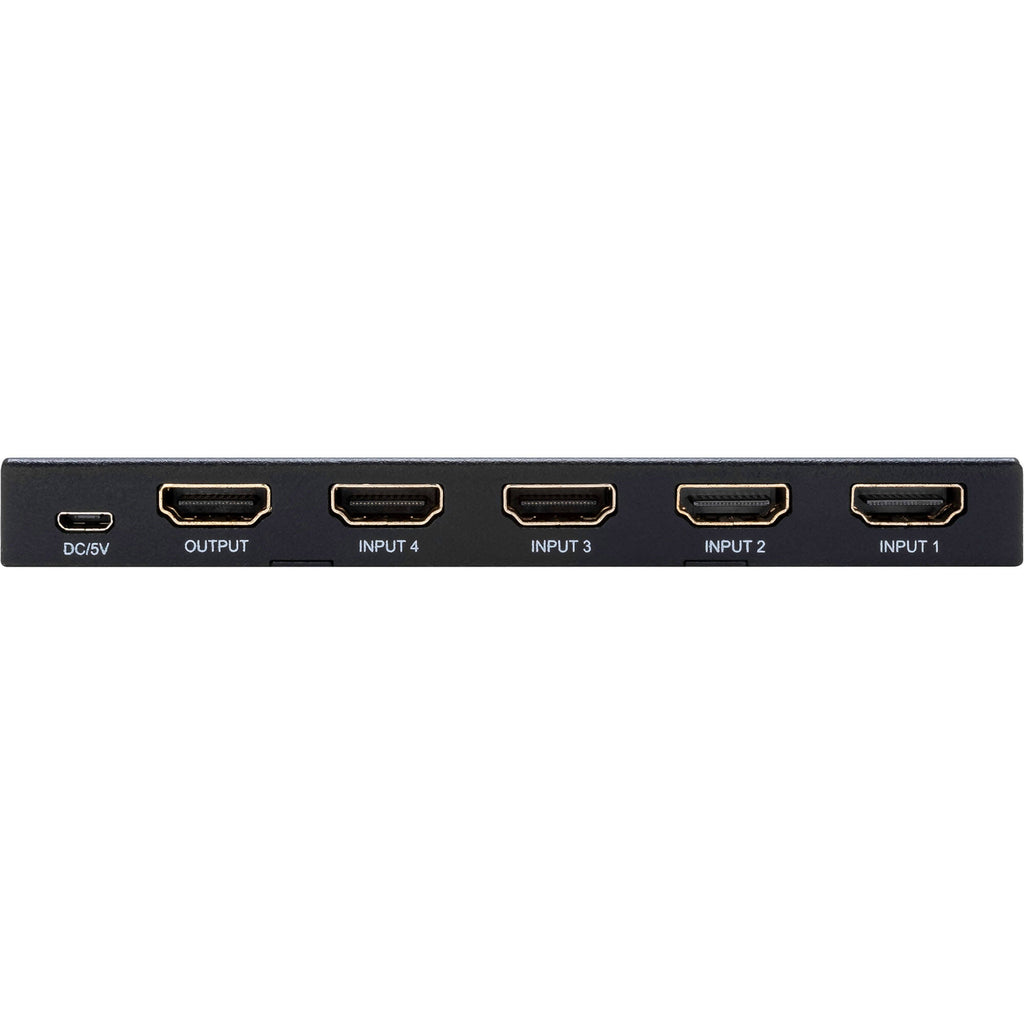

| Video Inputs |
4 x HDMI
|
| Input Video Format |
HDMI (12-Bit 4:4:4)
8K at 24/30/50/60 fps UHD 4K at 24/25/30/50/60/100/120 fps 1080p at 50/60/100/120/240 fps 1080i at 50/60 fps 576i / 625 lines at 50/60 fps 480i / 525 lines at 50/60 fps |
| Embedded Audio Input |
HDMI
|
Output
| Video Outputs |
1 x HDMI
|
| Output Video Format |
HDMI (12-Bit 4:4:4)
8K at 24/30/50/60 fps UHD 4K at 24/25/30/50/60/100/120 fps 1080p at 50/60/100/120/240 fps 1080i at 50/60 fps 576i / 625 lines at 50/60 fps 480i / 525 lines at 50/60 fps |
| Embedded Audio Output |
HDMI
|
Connectivity
| HDCP Support |
, Version 2.3
|
| HDR Compatibility |
HDR10, HDR10+, Dolby Vision
|
| DTS Compatibility |
DTS, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Digital, Dolby TrueHD
|
Hardware
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
1 x Micro-USB (5 VDC) Input
|
| Power Consumption |
5 W
|
Environmental
| Operating Temperature |
32 to 158°F / 0 to 70°C
|
| Operating Humidity |
5 to 90% (Non-Condensing)
|
General
| Certifications |
FCC, CE, RoHS
|
| Dimensions |
5.35 x 2.41 x 0.56" / 13.59 x 6.12 x 1.42 cm
|
| Weight |
5.7 oz / 163 g
|
