Description
Ocean Matrix OMX-07HMHM Overview
- 1Description
- 24x4 HDMI Matrix Switcher
- 3UHD 4K60 Video
- 4Integrated Downscaling
- 5Audio Extraction
- 6HDR Support
- 7Control Options
- 8HDCP & EDID

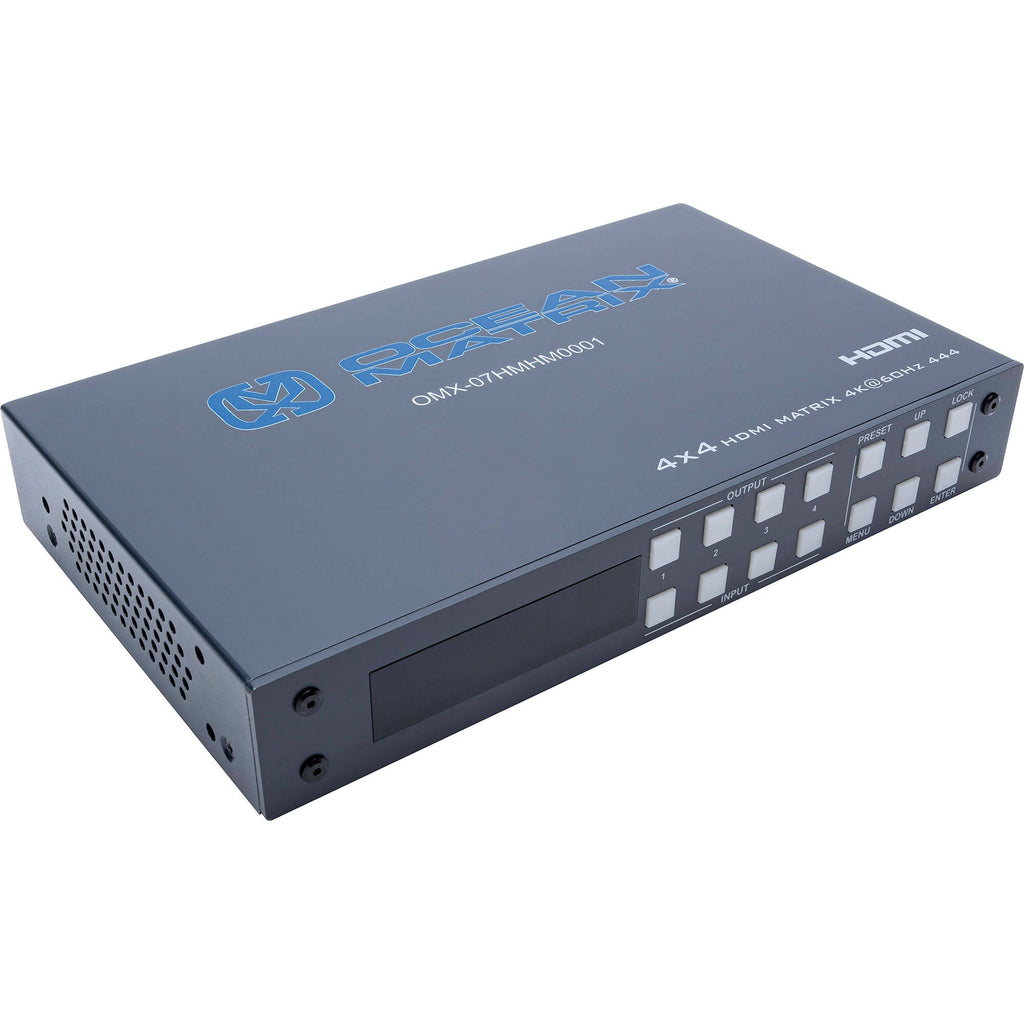

Distribute up to four UHD 4K HDMI sources to four HDMI displays using the UHD 4K HDR 4x4 HDMI Matrix Switcher from Ocean Matrix. This switcher supports up to UHD 4K60 resolution video and offers built-in downscaling for connecting to 1080p displays. This HDMI 2.0 unit supports flexible switching options, HDCP 2.2, EDID management, and both digital and analog audio extraction. Control the switcher using the front-panel buttons, the included IR remote, RS-232 input, TCP/IP, or a web GUI.
4x4 HDMI Matrix Switcher
Distributes up to four HDMI sources to four connected HDMI displays
UHD 4K60 Video
Supports up to UHD 4K60 video in up to RGB, YCbCr, and YUV 4:4:4 color, and YCbCr 4:2:2/4:2:0
Integrated Downscaling
Has built-in downscaling to support a simultaneous mix of UHD 4K and 1080p display outputs
Audio Extraction
Provides digital and analog audio extraction
HDR Support
Supports HDR10, HLG, and Dolby Vision

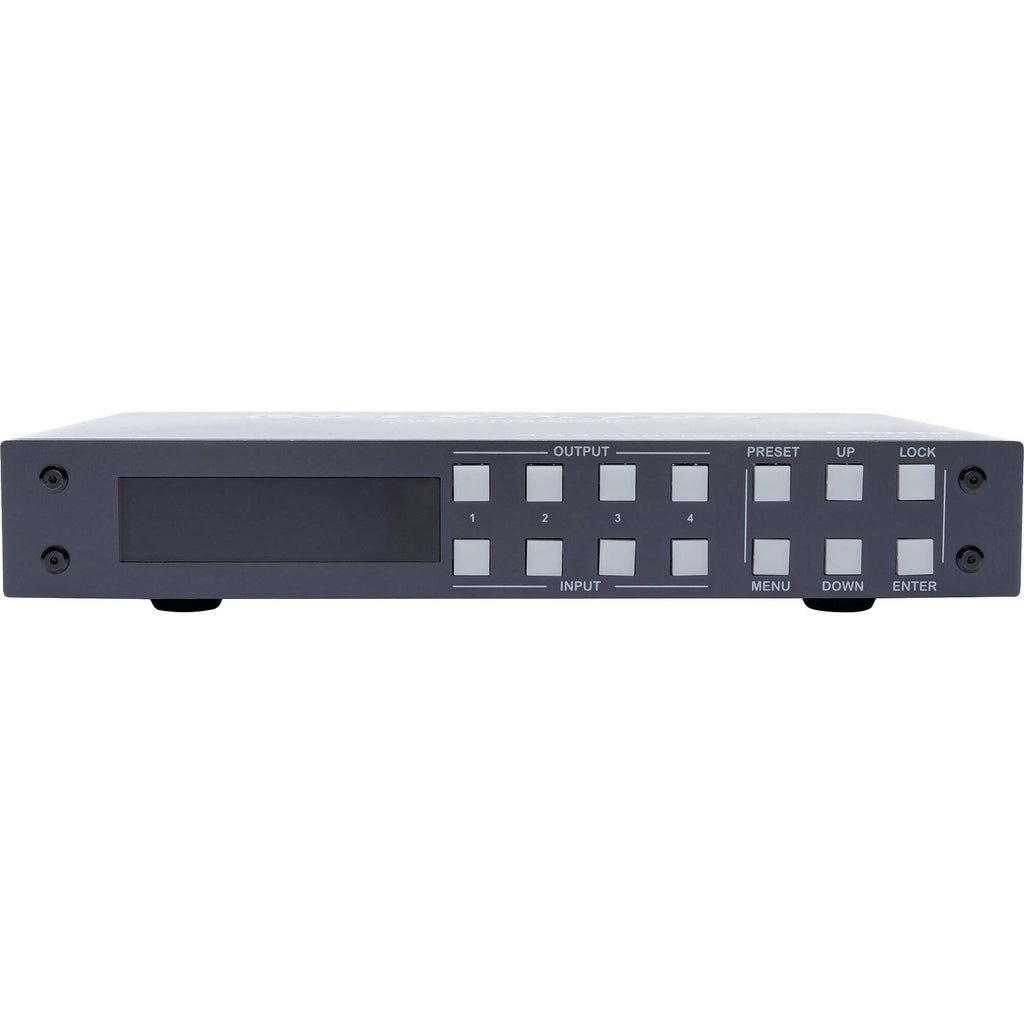

Control Options
Offers IR, RS-232, TCP/IP, web GUI, and front-panel button control options
HDCP & EDID
HDCP 2.2/1.4 compliant, offers EDID management and learning

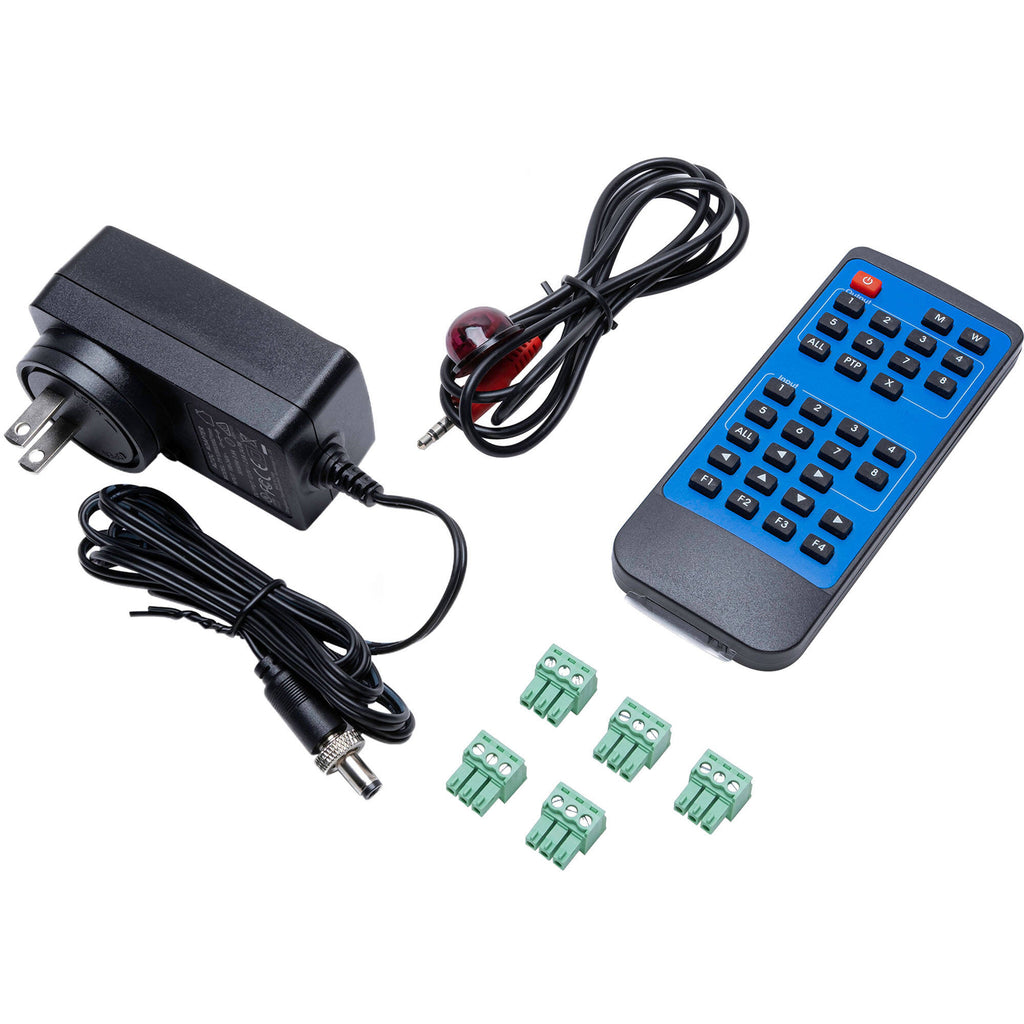

In the Box
- Ocean Matrix UHD 4K HDR 4x4 HDMI Matrix Switcher with Downscaling
- Power Supply (12 VDC, 2A)
- Remote Control
- IR Extender Receiver Cable
- 5 x Phoenix Plug for RS232 & L/R Audio Termination
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- 4x4 HDMI Matrix Switcher
- UHD 4K60 Video
- Integrated Downscaling
- Audio Extraction
- HDR Support
- Control Options
- HDCP & EDID
Ocean Matrix OMX-07HMHM Specs
Processing
| Switching Type | IR Remote, Pushbutton, Software |
| Color Processing | 8-Bit 4:4:4 RGB 8-Bit 4:4:4 YUV 8-Bit 4:2:2 YCbCr 8-Bit 4:2:0 YCbCr 10-Bit 4:2:2 YCbCr 10-Bit 4:2:0 YCbCr 12-Bit 4:2:2 YCbCr 12-Bit 4:2:0 YCbCr |
Input
| Video Inputs | 4 x HDMI (HDMI 2.0) Female |
| Input Video Format | HDMI (4:4:4) UHD 4K up to 60 fps 1080p up to 60 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio Input | HDMI: 2-Channel |
Output
| Video Outputs | 4 x HDMI (HDMI 2.0) Female |
| Output Video Format | HDMI (4:4:4/4:2:2/4:2:0) UHD 4K up to 60 fps 1080p up to 60 fps |
| Audio Outputs | 4 x RCA S/PDIF Female 4 x Block 3-Pin Analog Female |
| Output Audio Format | S/PDIF: 192 kHz Analog: 192 kHz LPCM (Linear Pulse-Code Modulation): 192 kHz |
| Embedded Audio Output | HDMI |
Connectivity
| Other I/O | 1 x Block 3-Pin RS-232 Input 1 x RJ45 Control, LAN, RS-232 Input/Output 1 x 1/8" / 3.5 mm IR Input |
| HDCP Support | , Version 2.2 |
| HDR Compatibility | HDR10, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS-HD Master Audio |
| Dolby Compatibility | Dolby TrueHD |
Hardware
| Wi-Fi | None |
| Bluetooth | None |
Power
| Power I/O | 1 x Barrel (12 VDC) Input |
| Power Consumption | Device: 14 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Dimensions | 8.5 x 5.1 x 1.3" / 21.6 x 13 x 3.3 cm |
| Weight | 1.03 lb / 467 g |
Packaging Info
| Package Weight | 2.99 lb |
| Box Dimensions (LxWxH) | 12.8 x 10.3 x 4.5" |
