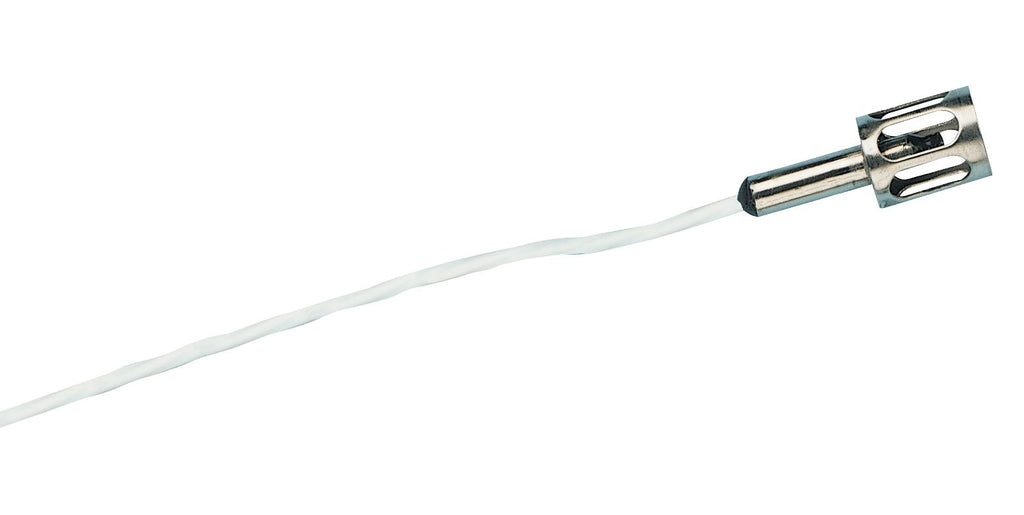

RTD-805 series is an air temperature RTD sensor. The platinum thin film RTD sensing element is exposed to air flow while being protected from passing debris by a vented housing. This construction uses a #26 AWG stranded nickel-plated copper, PFA insulated lead wire. This design comes standard with a removable miniature three pin connector.
- Mounts in any orientation
- Exposed sensing element has fast response times in air
- 3-wire construction for connecting to most instruments
- Perfect for air temperature monitoring and control in laboratories and laminar flow benches
- Steel housing
- 1m of PFA insulated lead wire
- MTP style connector termination
- 100 ohm class A DIN sensing element
- 230ºC maximum temperature
Footnotes Mating connector and other accessory sold separately.
Other details
| Brand |
OMEGA |
| Part Number |
RTD-805 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
