₹ 251.58 includes GST and import duties. | |
B2B customers can avail ₹ 38.37 ITC on this product | |
100% Secure Payments | 100% Genuine product |
Description
The MC33152PG is a dual non-inverting high speed MOSFET Driver designed for applications that require low current digital signals to drive large capacitive loads with high slew rates. This device feature low input current making them CMOS/LSTTL logic compatible, input hysteresis for fast output switching that is independent of input transition time and two high current totem pole outputs ideally suited for driving power MOSFETs. Also included is an under-voltage lockout with hysteresis to prevent system erratic operation at low supply voltages. Typical applications include switching power supplies, DC-to-DC converters and capacitor charge pump voltage doublers/inverters.
- Two independent channels with 1.5A totem pole outputs
- Output rise and fall times of 15ns with 1000pF load
- CMOS/LSTTL compatible inputs with hysteresis
- Under-voltage lockout with hysteresis
- Low standby current consumption
- Efficient high frequency operation
- Enhanced system performance with common switching regulator control ICs
Applications
Power Management, Signal Processing, Motor Drive & Control, Automotive
Product details
Output Delay | 40ns |
Operating Temperature Min | -40°C |
Peak Output Current | 1.5A |
Input Delay | 55ns |
Driver Case Style | DIP |
Operating Temperature Max | 85°C |
No. of Pins | 8Pins |
Product Range | - |
Automotive Qualification Standard | - |
Supply Voltage Min | 6.1V |
Packaging | Each |
Supply Voltage Max | 18V |
Driver Configuration | - |
MSL | - |
Other details
Brand | ON SEMICONDUCTOR |
Part Number | MC33152PG |
Quantity | Each |
Technical Data Sheet EN | ![]() |
Product Change Notice EN | ![]() |

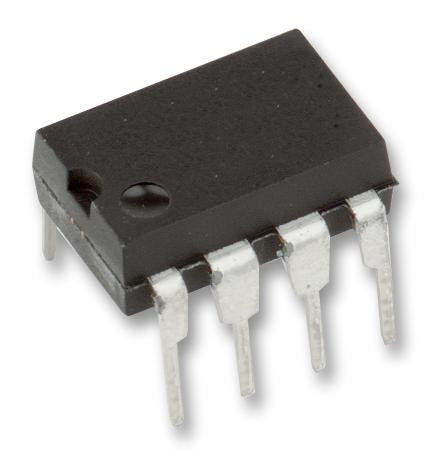

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 246.55 |
3-5 | ₹ 244.03 |
5-10 | ₹ 239.0 |
10+ | ₹ 233.97 |
Bulk discount will be automatically applied during checkout based on quantity.
