Description
Optex AX-130TN Overview
- 1Description
- 2IP65 Structure with High Sealing Rubber Packing
- 3Lightning & Surge Protection
- 4Anti-Frost Hood Cover
- 5Easy Angle Adjustment
- 6High Grade Spherical Lens
- 799% Beam Blocking Stability
- 8A.G.C. (Automatic Gain Control) Circuit
- 9Adjustable Beam Interruption Period
- 10Other Features

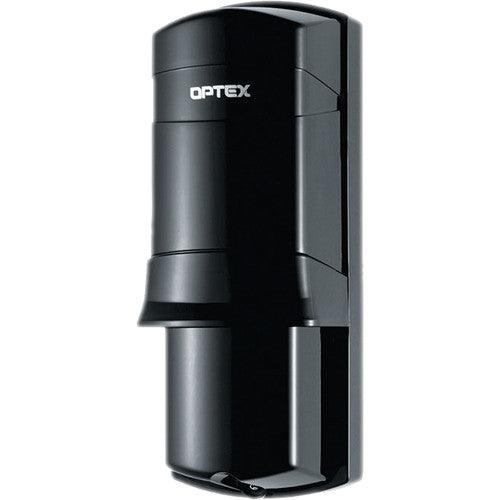

The AX-130TN Indoor / Outdoor Wired Short-Range Photoelectric Detector from Optex is compact in design with an IP65-compliant, highly durable structure. Rubber packing is used for all conceivable points where water, dust, or bugs may penetrate, such as wiring holes, wire ports, and the outer chassis. Preventing these factors helps deliver performance with higher reliability in severe outdoor environmental conditions. In addition, the length between the upper and lower optics and the width of the optics are ideally engineered to produce an intelligent detection pattern, which reduces false alarms by detecting only human intruders.
IP65 Structure with High Sealing Rubber Packing
Rubber packing is used for all conceivable points where water or dust may penetrate, such as wiring holes, wire ports, and the outer chassis. Prevention from dust, bugs, and water delivers performance with higher reliability against false alarms and breakdowns.
Lightning & Surge Protection
An improved electro-magnetic interference surge absorber and high surge resistive relay have been installed to protect from lightning surges and maintain stable operation.
Anti-Frost Hood Cover
A hood is installed to prevent frost formation on the lower beams. It also makes the maintenance easy because the surface of cover is flat.
Easy Angle Adjustment
It allows the installer to finely adjust the beam with ease.
High Grade Spherical Lens
The high grade spherical lens creates sharply defined and precise infrared beams compared to ordinary Fresnel lenses.
99% Beam Blocking Stability
Enables stable operation with as much as 99% loss of beam energy caused by heavy rain, dust storms, fog, or snow.
A.G.C. (Automatic Gain Control) Circuit
A.G.C. circuit continually monitors for gradual changes in the signal's strength caused by changing weather conditions. It adjusts the sensitivity accordingly to maintain a proper signal level for the current environmental conditions.
Adjustable Beam Interruption Period
The beam interruption time can be adjusted to fit any application. For example, when protecting a wall or fence, a longer interruption time will catch intruders.
Other Features
High-performance waterproof structure
Horizontal dial alignment for user friendliness
Adjustable beam interruption period
Tamper function
Horizontal dial alignment for user friendliness
Adjustable beam interruption period
Tamper function
UPC: 788924084077
In the Box

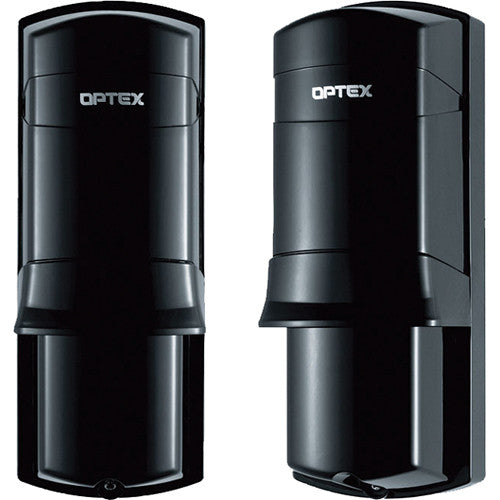

- Optex AX-130TN Wired Short-Range Photoelectric Detector (130 ft)
- Transmitter
- Receiver
- 4 x Pole Bracket
- 8 x Mounting Plate Lock Screw
- 8 x Pole Lock Screw
- 4 x Wall Mounting Screw
Table of Contents
- Description
- IP65 Structure with High Sealing Rubber Packing
- Lightning & Surge Protection
- Anti-Frost Hood Cover
- Easy Angle Adjustment
- High Grade Spherical Lens
- 99% Beam Blocking Stability
- A.G.C. (Automatic Gain Control) Circuit
- Adjustable Beam Interruption Period
- Other Features
Optex AX-130TN Specs
| Detection Range | 130' (40 m) max when used outdoors (Range doubles when used indoors) |
| Technology | Active infrared |
| Installation | Commercial, Residential |
| Zones | Perimeter, interior, approach |
| Maximum Distance | Arrival: 1,300' (400 m) |
| Detection Method | Infrared beam interruption detection |
| Method | Interruption: Selectable between 50, 100, 250, 500 ms (4 steps) |
| Power Supply | 10.5 to 28 VDC |
| Current Consumption | Transmitter & Receiver: 41 mA (maximum) T: 17 mA, R: 21 mA |
Output
| Alarm Output | N.C 28 VDC, 0.2 A maximum |
| Alarm | Period: 2 sec ± 1 nominal |
| Switch | Tamper: (N.C) Open when cover is removed. 28 VDC, 0.2 A maximum |
Indicator
| Power | Transmitter: Power On = On (Green), Power Off = Off Alarm Indicator (Receiver): Alarm On = Red, Light receiving = Off |
| Alignment | Angle: ±90° horizontal, ±5° vertical |
| Installation | Location: Indoor / outdoor, wall / pole mounting |
| Protection | Internal: IP65 |
| Humidity | Environmental: 95% maximum |
| Operating Temperature | -31 to 140°F (-35 to 60°C) |
| Weight | Transmitter & Receiver: 23 oz (652 g) |
Packaging Info
| Package Weight | 2.3 lb |
| Box Dimensions (LxWxH) | 8.95 x 6.9 x 3.05" |
