Description
Optex iVision+ Connect Overview

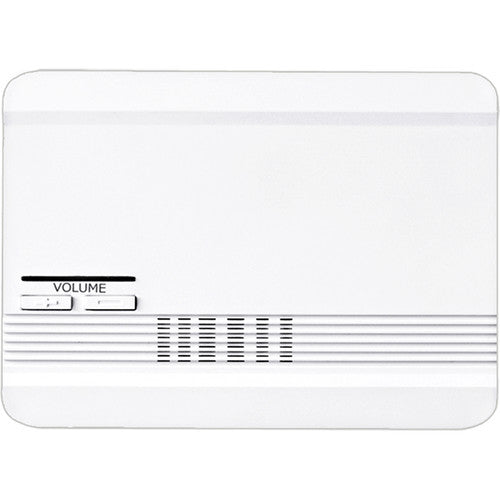

The IVPC-DI from Optex is a door interface unit for the iVision+ Connect Wireless Video Intercom System (IVPC). It provides door unlocking functionality with five chime tones that can be set by the IVPC-MS Mobile Station (available separately) or a device running the OPTEX vision app. The IVPC-DI can be used as a chime, dry relay output, or both.
Suitable for commercial, government, industrial, and residential applications
Hardwired unit can be used as a chime, dry relay output, or both
External output to electric strike or maglock doors
Five selectable chimes
Chime volume up to 80 dB (3 levels)
Speaker with volume adjustment
Relay output duration selectable up to 60 seconds
OPTEX Vision app for iOS and Android
Mode and pairing switches
Pairs with the IVPC-DS Door Station (available separately) via the IVPC-MS Mobile Station (available separately) or the OPTEX Vision app
LED indicators
Mounting plate included
UPC: 788924502618
In the Box
- Optex IVPC-DI iVision+ Connect Door Interface
- Mounting Plate
- Screws and Anchors
Guides & Manuals
Optex iVision+ Connect Specs
| Frequency | 916 MHz |
| Power | 10 to 24 VAC/VDC, 500 mA Maximum |
| Chimes | 5 |
| Chime Volume | Approximately 80 dB Maximum 3 Levels and Mute |
| Relay Output | Duration: 1, 5, 10, 30, or 60 Seconds Rating: 1C Relay, 1 A Maximum, 50 VAC / 24 VDC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | <90% RH (No Condensation) |
| Dimensions | 4.33 x 3.15 x 1.1" / 110 x 80 x 28 mm |
Packaging Info
| Package Weight | 0.845 lb |
| Box Dimensions (LxWxH) | 10.4 x 5.5 x 3.5" |
