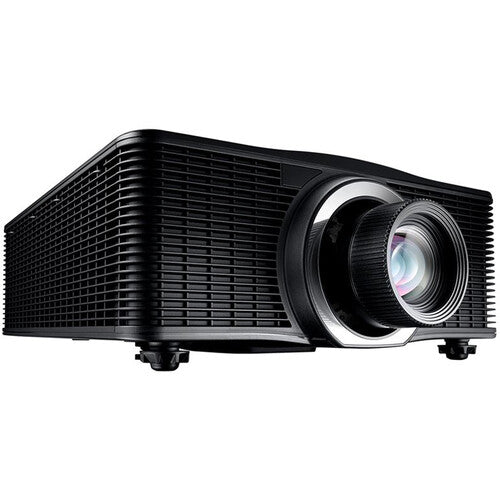

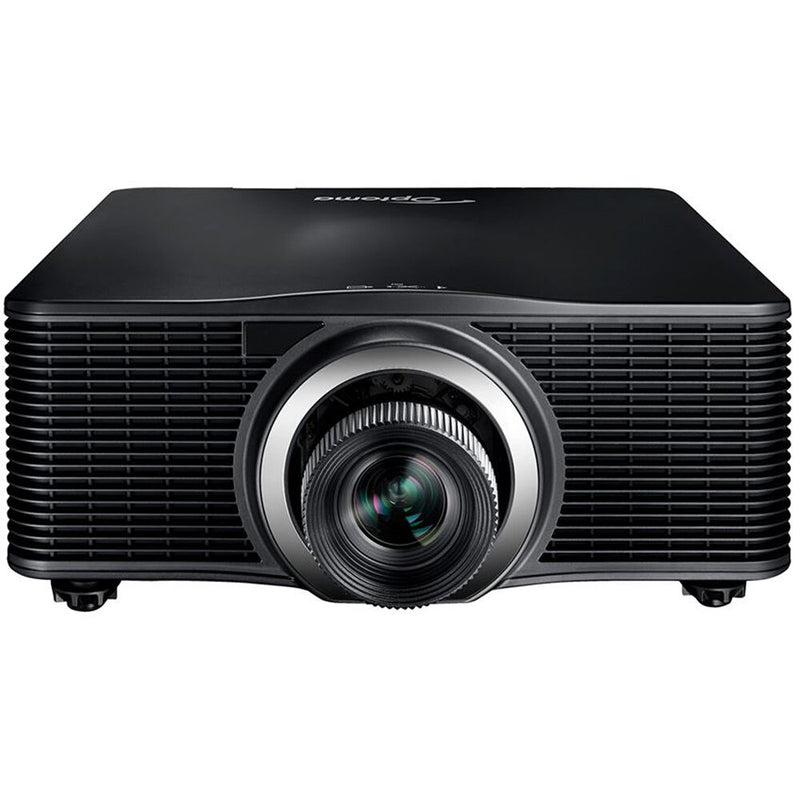

Optoma Technology ZU1100 9600-Lumen WUXGA Laser DLP Projector (No Lens)

The Optoma Technology ZU1100 9600-Lumen WUXGA Laser DLP Projector is a professional installation projector designed for consistent imaging, low maintenance, and long-time reliability. It includes a full suite of professional features, such as image warping and blending, color and brightness management, full lens shift, and 360° placement capability. Along with a complete lineup of separately available interchangeable lenses to cover an array of projection sizes and distances, the ZU1100 is ready for even the most complex installations.

Dust Resistant DuraCore Laser Technology

A long light source lifetime is achieved using Optoma's DuraCore technology, which implements advanced laser diode cooling techniques and an innovative dust-resistant design. The ZU1100 has been independently tested and certified to IEC standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with exceptional brightness ensures industry leading durability; ideal for 24/7 maintenance free operation in challenging environments.

An integrated warping and edge blending processor enables multiple projectors to be warped and blended without additional dedicated hardware, reducing the cost and complexity of installation. Warping and edge blending is configured using either the projectors on screen display or with PC software depending on model.

Optoma projectors provide reliable color performance suitable for a wide variety of content and environments. From accurate sRGB colors for lifelike images, to vibrant punchy presentations, the ZU1100 has a display mode to specifically meet your needs. Built-in color management provides you with the flexibility to fine-tune the color settings for optimal precision. Additionally, brightness matching is a valuable feature of any professional installation incorporating more than one projector. Multiple units of the same model and similar lamp usage can be fine-tuned to give the same brightness levels, which is especially important when installing projectors side by side.

With 360° projection, images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location. Additionally, you can rotate your projector 90 degrees to project a portrait image.

HDBaseT

HDBaseT input compatibility provides uncompressed Full HD video, audio, network, and control commands, all delivered on a single CAT-type cable. HDBaseT is typically capable of transmitting signals up to 328 feet without loss making installation hassle-free. HDBaseT simplifies cabling requirements and reduces installation complexity saving both time and reducing costs.

Integrator Friendly Control

The ZU1100 features a wide range of options to control and monitor the projector remotely.

• RS232: Optoma projectors come with an extensive set of RS232 commands making it simple and easy to manage using any control system.
• AMX compatible: Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.
• Crestron RoomView: Using the compatible RoomView software you can power on/off, monitor, manage, and control up to 250 projectors at the same time from any computer.
• Extron IPLink compatible: Allows for easy installation with Extron control systems.
• PJLink: Allows for easy installation with PJLink compatible control systems.
• Telnet: This model can receive commands via telnet allowing for easy installation with Telnet compatible control systems.

Additional Features

• 4K and HDR compatible
• Manage power for longest life, brightest picture, or anywhere in between
• Constant brightness helps maintain consistent brightness levels over time for long running installations
• True AV mute gives 100% screen blackout with instant on and off
• Full lens shift
• Picture-by-picture, picture-in-picture
• Full 3D capability
• Wired remote control option

Optoma Technology ZU1100 Specs

Display System	1-Chip DLP
Native Resolution	1920 x 1200
Maximum Brightness	9600 Lumens (ANSI) 11,500 Lumens
HDR Support	Yes

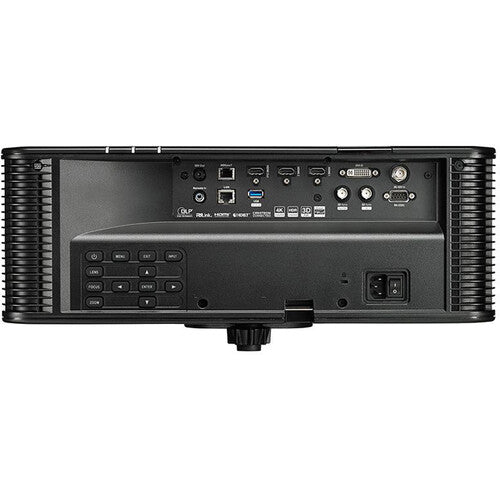

Inputs/Outputs	2x HDMI Audio, Video Input 1x DVI-D Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x BNC (3G-SDI) Video Input 1x HDMI Video Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8" / 3.5 mm Mini Remote Input 1x USB-A Power Output 1x 12 V Trigger Control Input 1x RJ45 LAN Input
Light Source	Laser Phosphor

Display System	1-Chip DLP
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness	9600 Lumens (ANSI) 11,500 Lumens
Uniformity	90%
Aspect Ratio	Native: 16:10 Supported: 16:9 Supported: 4:3
Dynamic Contrast Ratio	2,000,000:1
DLP Link 3D	Yes
Supported 3D Formats	Side by Side (up to 1080i) Frame Packing (up to 1080p) Top Bottom (up to 1080p)

Includes Lens

No

Keystone Correction	Horizontal: ± 20° Vertical: ± 20°
HDR Support	Yes
Multi-Input Support (PIP/PBP)	Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Inputs/Outputs	2x HDMI Audio, Video Input 1x DVI-D Video Input 1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input 1x BNC (3G-SDI) Video Input 1x HDMI Video Output 1x BNC (VESA 3D Sync) Control Input 1x BNC (VESA 3D Sync) Control Output 1x DE-9/DB-9 (RS-232) Control Input 1x 1/8" / 3.5 mm Mini Remote Input 1x USB-A Power Output 1x 12 V Trigger Control Input 1x RJ45 LAN Input
HDCP Support	Yes
Media/Memory Card Slot	No

Mobile App Compatible	No
Wireless LAN / Wi-Fi	No
Bluetooth	No

Light Source	Laser Phosphor
Expected Lamp Life	Medium Brightness: 30,000 Hours
Fan Noise	Low Brightness: 38 dB Full Brightness: 40 dB
Security	Cable Lock Slot Security Bar
Supported Languages	Danish English French German Indonesian Italian Japanese Portuguese Russian Simplified Chinese Spanish
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 680 W Low Brightness: 360 W Standby Mode (Lamp Off): < 0.5 W
Operating Conditions	41 to 104°F / 5 to 40°C at 10 to 85% Humidity
Dimensions (W x H x D)	19.1 x 8.2 x 20.8" / 484.0 x 207.8 x 529.0 mm (Overall, Without Lens)
Weight	46.3 lb / 21 kg
