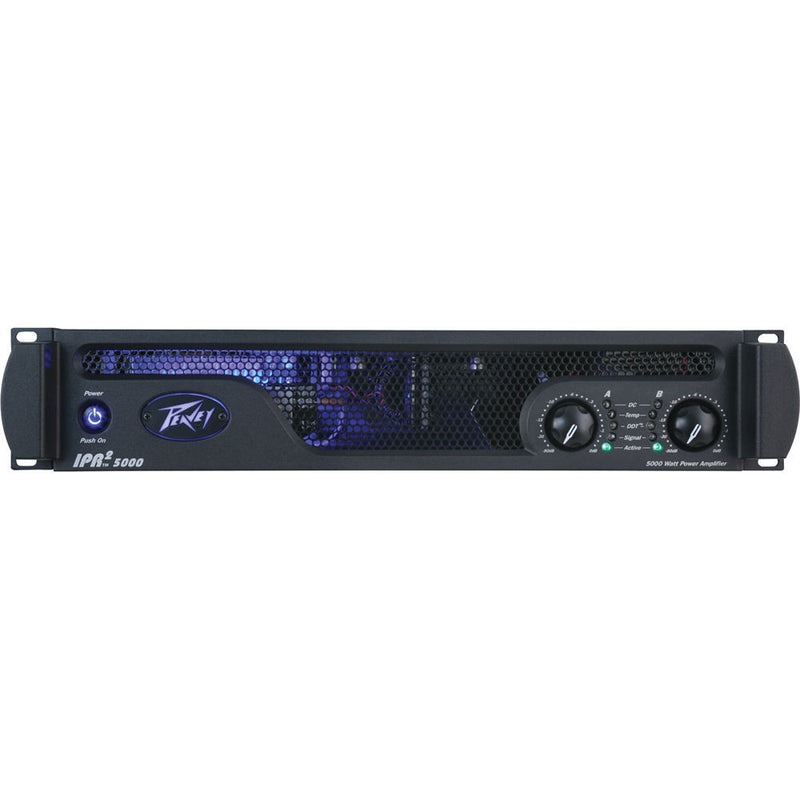

Peavey IPR2 5000 2-Channel Power Amp


	₹ 157485.0 includes GST and import duties.
	B2B customers can avail ₹ 24016.46 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Peavey
SKU:	8908187920
MPN:	3004350
UPC/HSN:	014367153422

Share this product

The Peavey IPR2 5000 2-Channel Power Amp features an advanced design that makes it lightweight while increasing output power, reliability and thermal efficiency. This amplifier is designed with a resonant switch-mode power supply and a high-speed Class D topology that yields a high audio resolution and efficiency. Advanced technology and extensive protection circuitry allow for efficient operation under difficult loads and power conditions.

The DDT (Distortion Detection Technique) circuitry ensures trouble-free operation into loads as low as 2?. DDT protects drivers and ensures that sonic integrity is maintained, even in extreme overload conditions. This amp also features 2-channel independent fourth order Linkwitz-Riley crossovers and a variable-speed fan housed in a lightweight aluminum chassis. The amplifierï¿½s high-efficiency design allows it to operate at very low temperatures without the need for massive heat sinks to cool.

2-channel independent, fourth-order Linkwitz-Riley crossovers

DDT protection for trouble-free operation into loads as low as 2 ?

IPR Class D topology

Detented input controls

Combination XLR 1/4" inputs

4-pole twist lock output connectors

Lightweight design

Individual signal pass 1/4" jacks on each channel

LED illuminated

Standby, LED power present indication

UPC: 014367153422

In the Box

Peavey IPR2 5000 2-Channel Power Amp

Limited 2-Year Warranty

Note: The warranty period can be extended by 3 years if the optional Warranty Registration Card is completed and returned to Peavey by the original retail purchaser within 90 days of purchase.

Rated Power	2ch x 2 ?: 3,230 W 20ms repetitive burst / 2,530 W 1% THD both channels driven @ 1 kHz 2ch x 4 ?: 1,985 W 20ms repetitive burst / 1,700 W 1% THD / 1,470 W 0.15% THD, both channels driven @ 1 kHz 2ch x 8 ?: 1,175 W 20ms repetitive burst / 1,025 W 1% THD / 880 W 0.15% THD, both channels driven @ 1 kHz Rated power readings made with BW: <10 Hz to 22 kHz. All power measurements made at 120 and 240 VAC. 2 ? power is time limited by circuit breaker.
RMS Power	1 x 2,900 W at 2 ? 1 x 1,780 W at 4 ? 1 x 975 W at 8 ? 2 x 2,525 W at 2 ? 2 x 1,510 W at 4 ? 2 x 890 W at 8 ?
Minimum Load Impedance	2 ?
RMS Voltage Swing	105 V (maximum)
Frequency Response	20 Hz to 22 kHz; +/- 0.5 dB at 1 W 20 Hz to 20 kHz 2ch x 2 ?: <0.5% @ 2,250 W 20 Hz to 4 kHz, decreasing to 1,640 W @ 20 kHz, both channels driven 20 Hz to 20 kHz 2ch x 4 ?: <0.15% @ 1,400 W 20 Hz to 10 kHz, decreasing to 1,350 W @ 20 kHz, both channels driven 20 Hz to 20 kHz 2ch x 8 ?: <0.15% @ 860 W 20 Hz to 4 kHz, increasing to 1,000 W @ 20 kHz, both channels driven
CMRR	Input: > - 75 dB @ 1 kHz
Voltage Gain	x 40 (+32dB)
Crossover	100 Hz switchable 2nd order high pass and 3rd low pass per channel
Crosstalk	> -60 dB @ 1 kHz @ 700 W power @ 8 ?
Hum and Noise	> -105 dB, "A" weighted referenced to rated power @ 4 ?
Slew Rate	> 12 V / ?s
Damping Factor	> 210:1 @ 20 Hz to 1 kHz @ 8 ?
Input Sensitivity	1.95 V +/- 3% for 1 kHz 4 ? rated power, 1.83 V +/- 3% for 1 kHz 2 ? rated power
Input Impedance	20 k?, balanced and 10 k?, unbalanced
Current Draw	@ 1/8: 1,435 VA (890 W) @ 2 ?, 920 VA (525 W) @ 4 ?, 625 VA (335 W) @ 8 ? @ 1/3: 3,050 VA (2,155 W) @ 2 ?, 1,880 VA (1,200 W) @ 4 ?, 1,200 VA (715 W) @ 8 ?
Idle Consumption	195 VA, 90 W
Cooling	3 temperature-dependent variable speed fans
Controls	2 front-panel attenuators, crossover select switch for HPF, Normal and LPF
LED Indicators	5 LED indicators per channel: Active, Signal, DDT, Temperature and DC
Protection	Thermal, DC, subsonic, incorrect loads, under and over voltage
Connectors	Inputs: Dual combination 1/4" XLR Outputs: 2 x 1/4" thru, 1 x 2-pin & 1 x 4-pin twist-lock connector
Construction	0.062" (0.16 cm) thick aluminum
Dimensions	3.5 x 19.0 x 17.0" (9.0 x 48.3 x 43.2 cm) Handle: 0.6" (1.5 cm)
Weight	13.6 lb (6.2 kg) (without power cord)

Packaging Info
Package Weight	21.0 lb
Box Dimensions (LxWxH)	21.6 x 20.9 x 7.1"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
