| ₹ 209.55 includes GST and import duties. | |
| B2B customers can avail ₹ 31.96 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

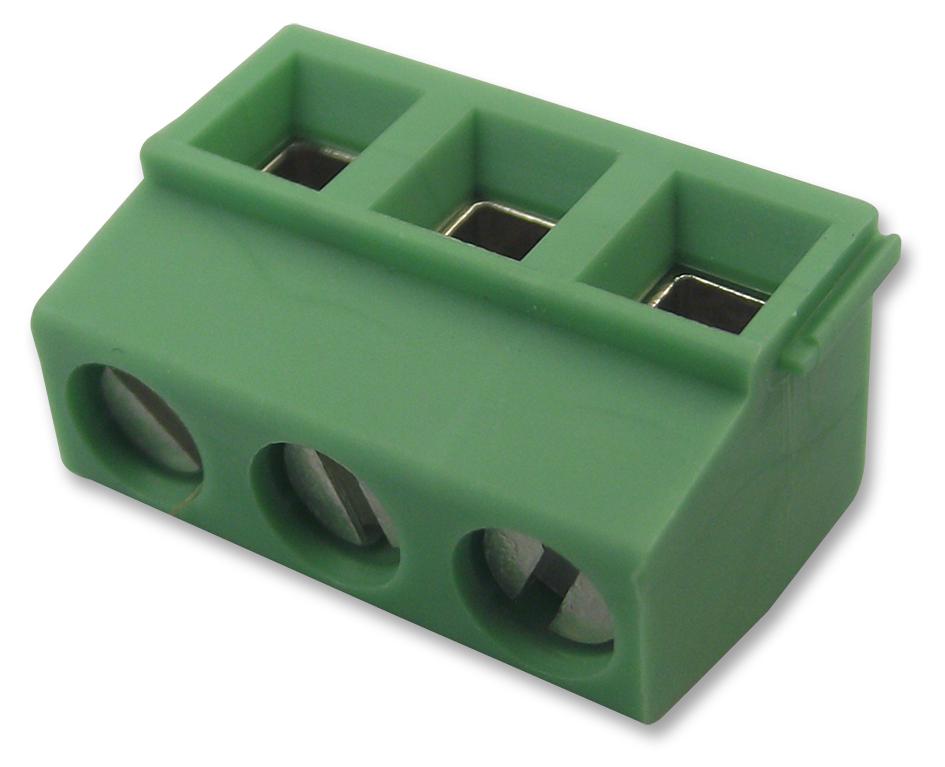

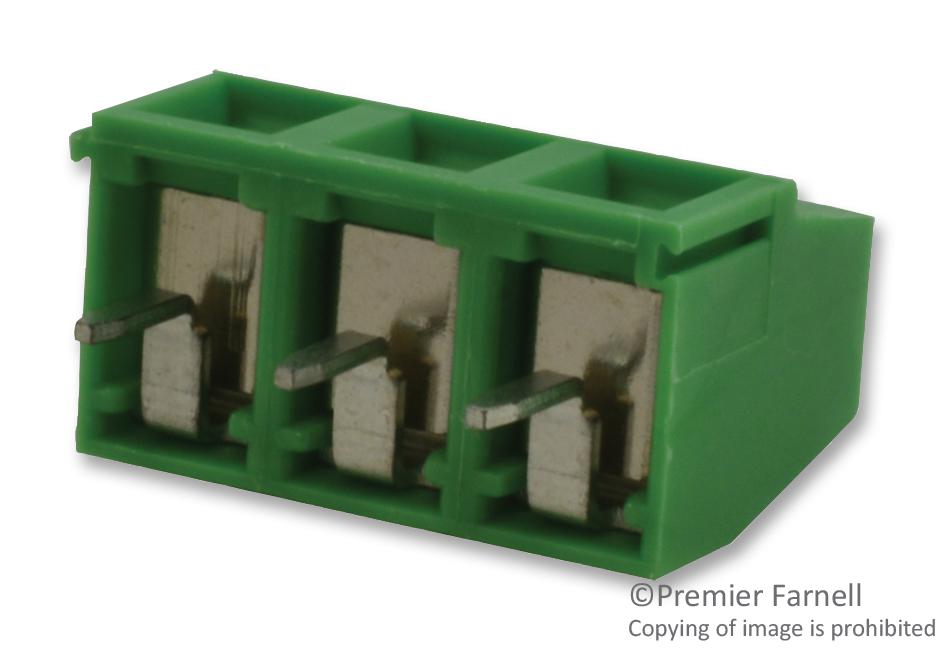

The 1729131 from Phoenix Contact is a through hole, 3 position PCB terminal block with 5.08mm lead spacing. Terminal block is made of PA insulating material and suitable for wire size ranging from 26AWG to 16AWG.
- Dimension of terminal block is 8.1mm x 10.16mm x 13.5mm (L x W x H)
- Green colour terminal block
- Sn solder pin surface
- Hole diameter of 1.3mm
- UL94 V-0 inflammability rating
- CSA, SEV, GL, CCA, EAC, UL and cULus recognized
- Screw connection
- Right angle wire orientation
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 3Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 13.5A |
| Rated Voltage: 250V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDSN |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1729131 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 205.36 |
| 3-5 | ₹ 203.26 |
| 5-10 | ₹ 199.07 |
| 10+ | ₹ 194.88 |
Bulk discount will be automatically applied during checkout based on quantity.
