| ₹ 376.7 includes GST and import duties. | |
| B2B customers can avail ₹ 57.45 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

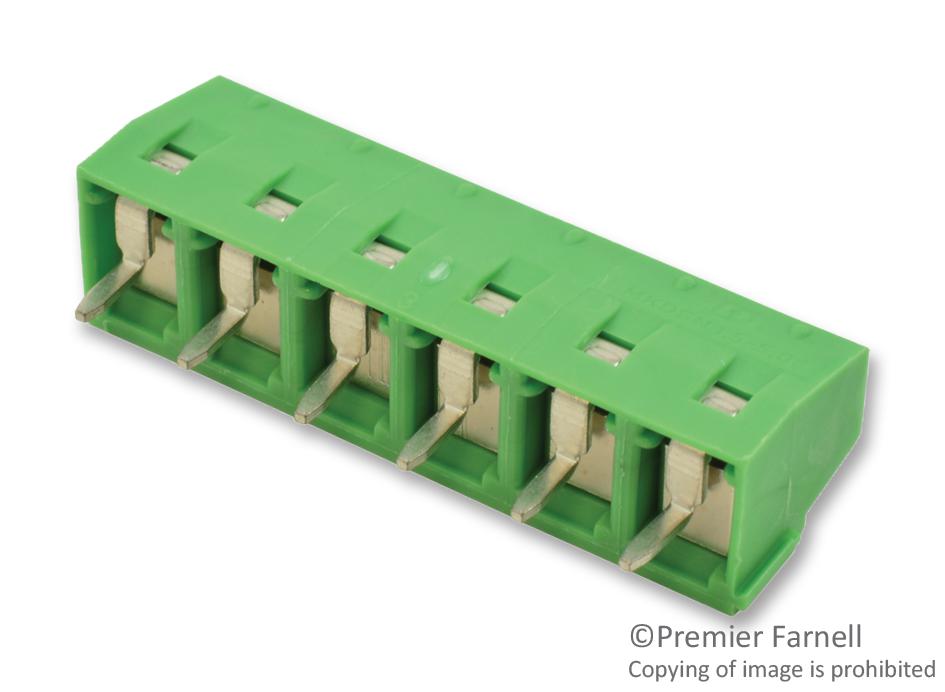

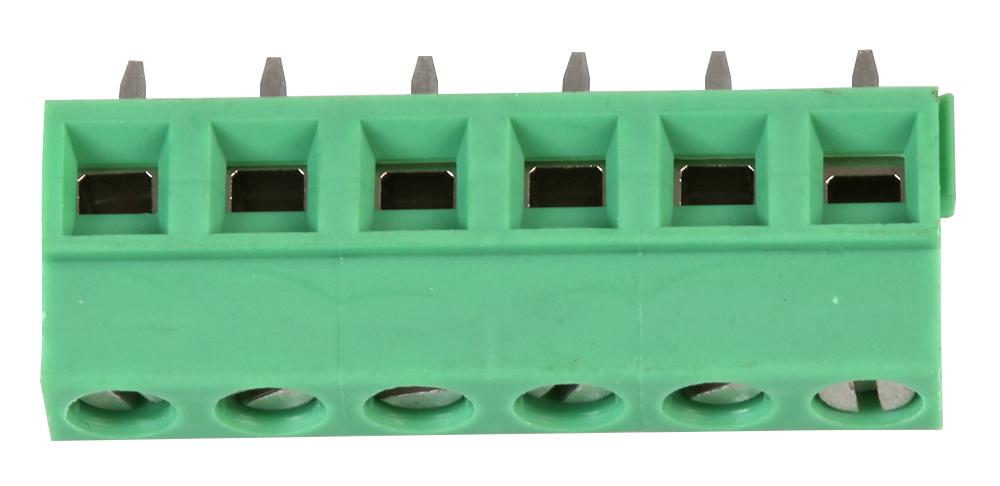

The 1729160 is a 6-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This MKDSN 1,5/ 6-5,08 terminal block has fully developed contact geometries and surfaces. It has compact housing dimensions and low design height. It accepts 26 to 16AWG wire range.
- Space-saving and safe
- Single-row type with horizontal connection direction
- 6mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 6Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 13.5A |
| Rated Voltage: 250V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDSN |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1729160 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 369.17 |
| 3-5 | ₹ 365.4 |
| 5-10 | ₹ 357.87 |
| 10+ | ₹ 350.33 |
Bulk discount will be automatically applied during checkout based on quantity.
