| ₹ 620.29 includes GST and import duties. | |
| B2B customers can avail ₹ 94.59 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

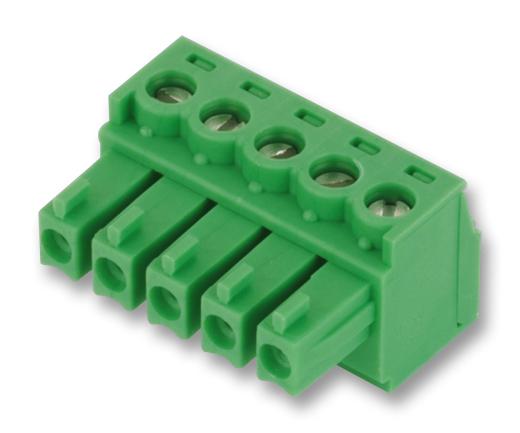

The 1803604 from Phoenix Contact is a 5 position pluggable terminal block with screw connection. This terminal block comes with 3.81mm pitch spacing and suitable for wire size ranging from 28AWG to 16AWG.
- Green colour insulation
- Tin contact surface
- Plug-in direction parallel to the conductor axis
- Individual position coding by removing the coding tab & connecting the coding profile to the header
- Polyamide (PA) insulating material
- UL94 V-0 flammability rating
- CSA, VDE, IECEE CB, CCA, EAC and cULus recognized
- Dimension of terminal block 16.1mm x 11.1mm x 19.84mm (L x H x W)
Applications
Industrial
Product details
| Pitch Spacing: 3.81mm |
| No. of Positions: 5Ways |
| Wire Size (AWG): 28AWG to 16AWG |
| Conductor Area CSA: 1.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 8A |
| Rated Voltage: 160V |
| Product Range: MC |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1803604 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 607.88 |
| 3-5 | ₹ 601.68 |
| 5-10 | ₹ 589.28 |
| 10+ | ₹ 576.87 |
Bulk discount will be automatically applied during checkout based on quantity.
