Description
PortaCom COM-40FC/C-S Overview

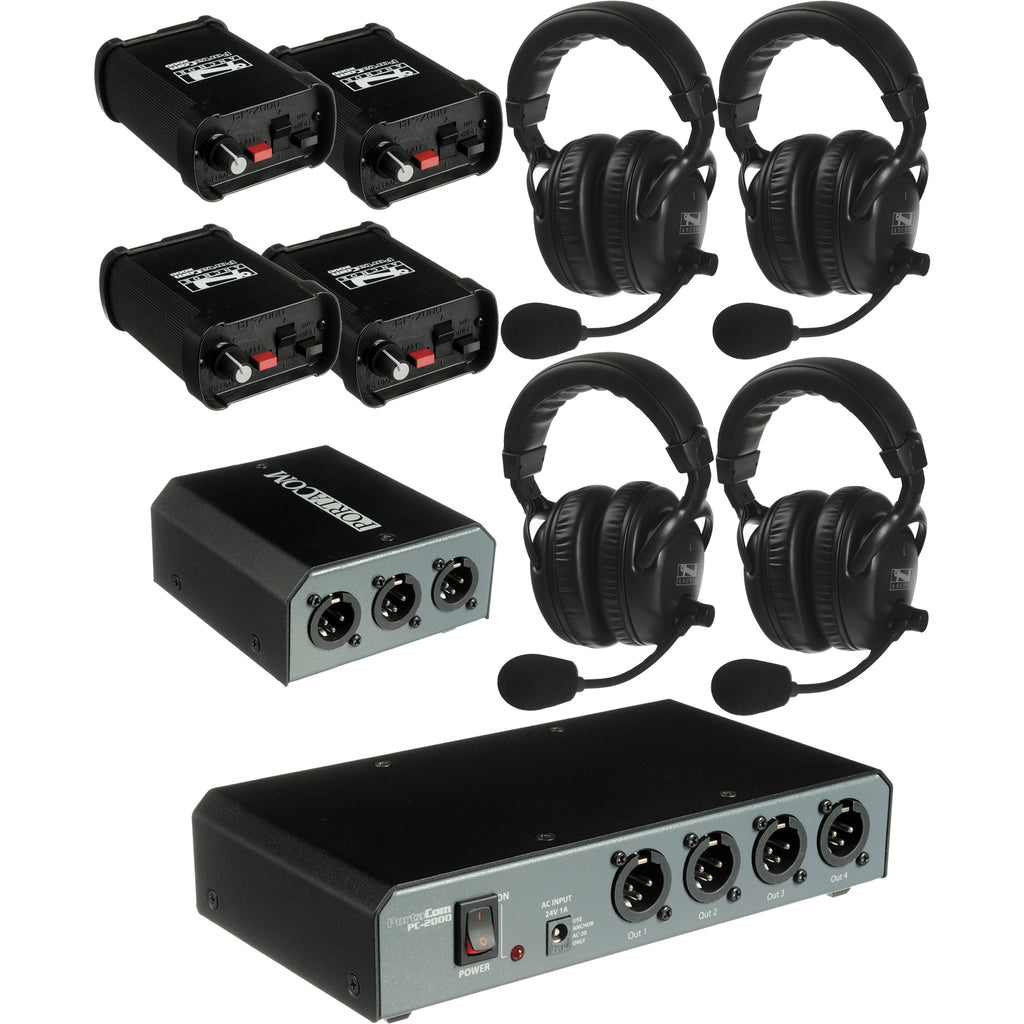

The Portacom COM-40FCC is a low-cost, complete wired intercom system that serves the production communication needs of video and film, broadcast sporting events, cable access television, houses of worship, and educational institutions.
The COM-40FCC is a two-channel wired intercom system, consisting of a central power supply, 4 belt packs, featuring a volume control knob and call light, mic on/off, and A/B channel select buttons, 4 XLR connector cables, a branch box, and 4 dual, noise cancelling headsets. A rugged, foam lined carrying case holds the system in place for transportation and storage.
The COM-40FCC offers support of up to twenty headsets, made possible by the use of separately purchased, additional branch-box expander units, and connections are made via standard 3-pin XLR cables. The system provides either AC or battery powered operation, and the portable base station power supply may also be rackmounted.
The Portacom COM-40FC is a low-cost, complete wired intercom system that serves the production communication needs of video and film, broadcast sporting events, cable access television, houses of worship, and educational institutions.
The COM-40FC is a two-channel wired intercom system, consisting of a central power supply, 4 belt packs, featuring a volume control knob and call light, mic on/off and A/B channel select buttons, a branch box, and 4 dual, noise cancelling headsets with an adjustable dynamic microphone. A rugged, foam lined carrying case holds the system in place for transportation and storage.
The COM-40FC offers support of up to twenty headsets, made possible by the use of separately purchased, additional branch-box expander units, and connections are made via standard 3-pin XLR cables. The system provides either AC or battery powered operation, and the portable base station power supply may also be rackmounted.

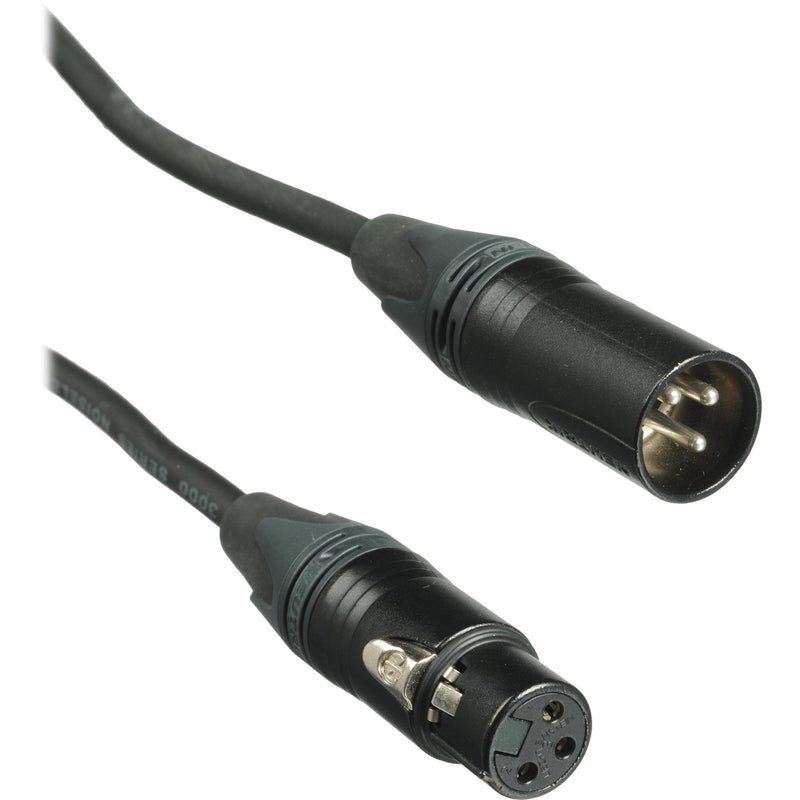

The black Kopul Premium Performance 3000 Series XLR Male to XLR Female Microphone Cable (50') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. The 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.

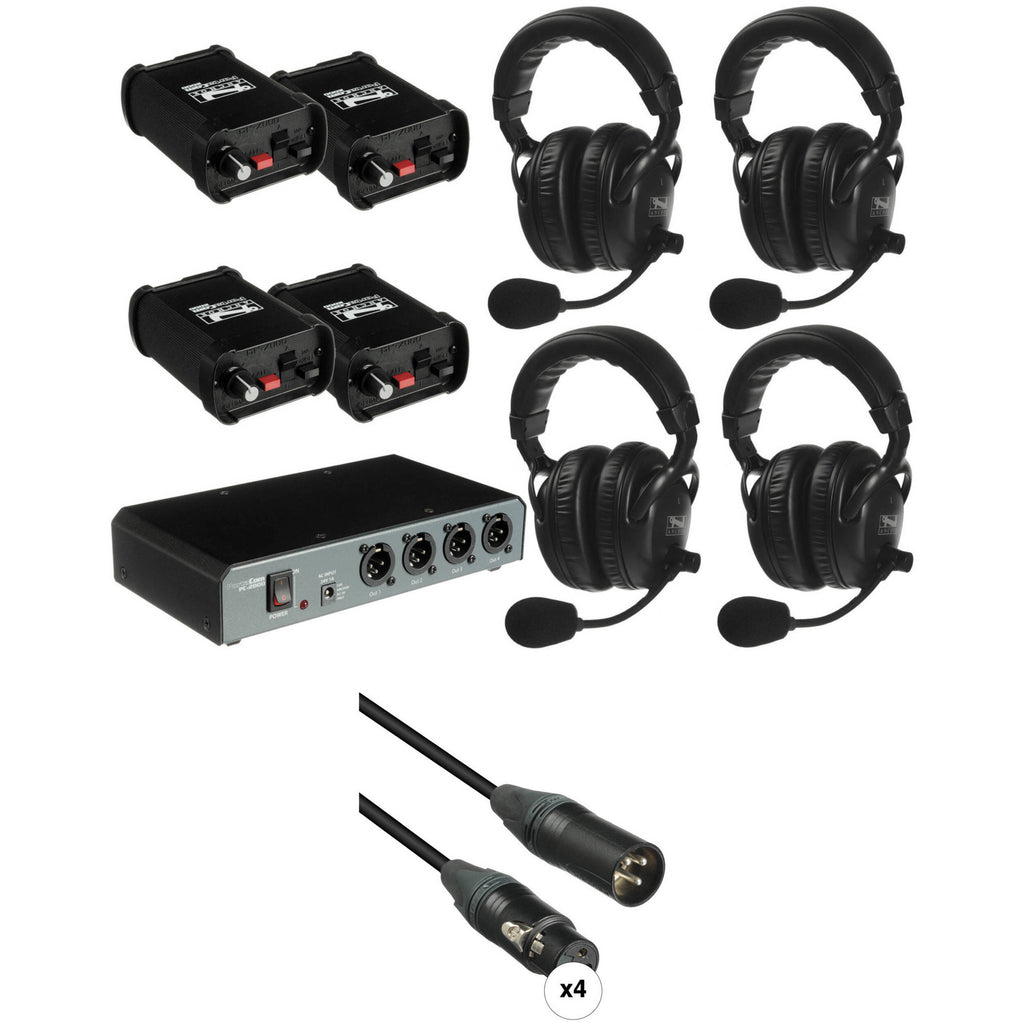

In the Box
- PortaCom COM-40FC 4 Headset Intercom System with Foam Insert Case
- PC-100 Powering Console
- AC-20 Power Supply
- 4 x H-200 Headsets
- 4 x BP-200 Beltpacks
- Limited 1-Year Manufacturer Warranty
- 4 x Kopul Premium Performance 3000 Series Neutrik XLR Male to XLR Female Microphone Cable (50', Black)
- Limited 3-Year Manufacturer Warranty
- PC-100 Powering Console
- AC-20 Power Supply
- 4 x H-200 Headsets
- 4 x BP-200 Beltpacks
PortaCom COM-40FC 4 Headset Intercom System with Foam Insert Case Specs
| System | |
| Type | Two-channel Wired Intercom |
| Distortion | < 0.5% |
| Interconnecting Cable | 3-pin XLR Male to Female, Standard 1-pair, Shielded |
| Type | PC-100 Two-Channel Power Console with External AC Power Adapter |
| # of Output Connectors | 4 x 3-Pin XLR Male |
| Voltage Output to Belt Packs | 22 V DC |
| Maximum Current Capacity | 400 mA |
| Maximum # of Belt Packs | 20 BP-100 Belt Packs |
| Input Power Requirement | 24 V AC, 50/ 60 Hz, 750 mA 30-40 V DC, 500 mA |
| Dimensions | 1.75 x 8.5 x 4.5" (45 x 216 x 114mm) |
| Weight | 3.6 lbs. (1.7 Kg.) |
| Type | BP-200 Belt Pack with Volume Control, A/B Channel Switch, Microphone Mute Switch and Call Light |
| Input Line Connector | 3-Pin XLR Female |
| Headset Connector | 4-Pin XLR Male |
| Bridging Impedance | 10k Ohms Minimum |
| DC Current Requirements | 20 mA Maximum |
| Dimensions | 3.6 x 2.6 x 2.1" (91 x 66 x 53 mm) DxWxH |
| Weight | 0.46 lbs. (0.2 Kg.) |
| Input Line Connector | 1 x 3-pin XLR Female |
| # of Output Connectors | 3 x XLR Male |
| Dimensions | 1.9 x 4.1 x 4.25" (48 x 105 x 108mm) |
| Weight | 1.2 lb (0.5 kg) |
| Type | H-200 Dual Earpiece Headset |
| Microphone | Yes, Lo-Z/Dynamic, Noise Cancelling Microphone |
| Type of Connector | 4-Pin XLR Male |
| Cable Length | 6' (1.8 m) |
| Dimensions | 3.5 x 7.4 x 7.9" (89 x 188 x 201mm) |
| Weight | 16 oz (453.4 g) |
| Package Weight | 15.5 lb |
| Box Dimensions (LxWxH) | 24.5 x 20 x 10" |
Kopul Premium Performance 3000 Series Neutrik XLR Male to XLR Female Microphone Cable (50', Black) Specs
| Cable Length | 50' / 15.2 m |
| Shielding | 95% Spiral |
| Wire Gauge | 24 AWG |
| Contact Plating | Silver |
| Package Weight | 1.5 lb |
| Box Dimensions (LxWxH) | 11.1 x 9.5 x 1.35" |
