Description
PORTKEYS BM7 II Overview

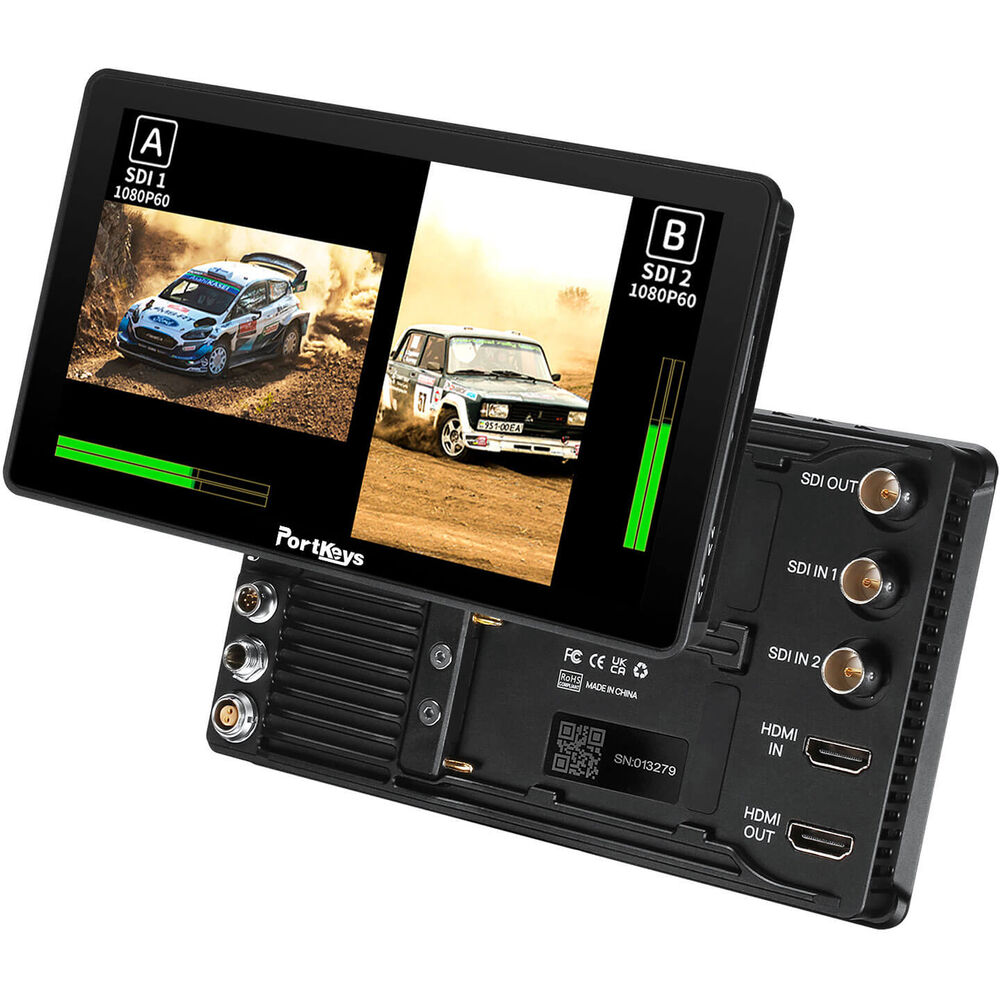

Bright enough for outdoor use, the BM7 II DS 7" High-Bright Monitor with Wireless Camera Control and Sun Hood from PORTKEYS is a 1920 x 1080 display with support for up to 1080p resolution video. The BM7 II DS U features a maximum brightness of 2200 cd/m², a contrast ratio of 1000:1, and a durable aluminum frame. The monitor's main feature is the ability to remotely control your camera via Wi-Fi, Bluetooth, or using an optional control cable, depending on your camera's model. It can also be used to control lens motors such as Tilta's Nucleus M/N. This model includes a sun hood and protective rubber case.
Support for 3D LUTs enables you to view your log footage in your chosen color space or palette. This monitor incorporates one 3G-SDI input, one 3G-SDI output, one HDMI input, one HDMI output, a 3.5mm headphone audio output, and a USB-A port used to load 3D LUTs or upgrade firmware. A 170° viewing angle enables off-axis viewing without color and contrast shifts.
The latest Cinenorm OS provides numerous image display tools, including custom pages and 26 tools such as waveform, histogram, focus peaking, false color, 3G-SDI-to-HDMI cross conversion, image flip, and selectable aspect ratios. You can power this super bright monitor via its dual Sony L-series type battery plate or from a D-Tap power source using the included DC cable. Four 1/4"-20 threads enable you to support the monitor from whichever side works best for each setup.
- Custom pages with preset monitoring tools and functions
- 26 different image tools in 6 categories
- Camera control for Sony, Canon, RED, ARRI, Panasonic, Z CAM, Blackmagic Design, and Nikon cameras
- Camera control of numerous functions such as menu, ISO, white balance, shutter, start/stop, touch focus, aperture, and more
- Display tools include waveform, vectorscope, focus peaking, false color, image flip, histogram, guides, timecode, anamorphic squeeze
- Color grading with 3D LUTs and HDR/HLG
- Multi-screen PIP/PBP
- Set user profiles
- Custom screen color calibration
- Customize quick access tools and record button
Sony a9 II, a1, a7C, FX3, FX30, RX10, a7S III, a7 IV, RX0, a7 III
Blackmagic Pocket Cinema Camera 6K
Blackmagic Pocket Cinema Camera 6K Pro
Tilta Nucleus-N and Nucleus-M lens motor
Items Included
- PORTKEYS BM7 II DS U 7" High-Bright Monitor with Wireless Camera Control and Sun Hood
- USB Drive
- DC Barrel to D-Tap Power Cable
- Safety Case
- Wrench
- Sun Hood
- 2 x Drop-Proof Rubber Case
- Limited 1-Year Manufacturer Warranty
Additional Resources
Firmware Updates
vN/A, Nov ' 24
PORTKEYS BM7 II Specs
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Video I/O |
2x BNC (3G-SDI) Input
1x HDMI (Unspecified Signal) Input 1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output |
| Media/Memory Card Slot |
No
|
| Video Format |
SDI (4:4:4/4:2:2 YUV)
1080p: 30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50 HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
| Battery Type |
2x L-Series
|
| Power Consumption |
15 W (Maximum)
|
| Mounting |
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Bottom) |
| Panel Type |
LCD
|
| Display Size |
7.0" / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170° (85/85)
Vertical: 170° (85/85) |
| Touchscreen |
Yes
|
| Maximum Brightness |
2200 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
1.07 Billion Colors (8-Bit+FRC)
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
314 ppi
|
| Color Gamut |
85% DCI-P3
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Vectorscope, Waveform, Zebra
|
| Video I/O |
2x BNC (3G-SDI) Input
1x HDMI (Unspecified Signal) Input 1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI: 2-Channel
SDI: 8-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x LEMO 2-Pin Input
1x Barrel 2.1 mm Input |
| Other I/O |
1x Mini-USB (Camera Control)
1x Unspecified 5-Pin (Motor Control) 1x USB-A (Firmware/LUT Upload) |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Mobile App Compatible |
No
|
| Video Format |
SDI (4:4:4/4:2:2 YUV)
1080p: 30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50 HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94/50 480i: 60/59.94/50 |
| Video Signal Conversion |
HDMI to SDI
|
| Input Power |
7 to 24 VDC
|
| Battery Type |
2x L-Series
|
| Power Consumption |
15 W (Maximum)
|
| Mounting |
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Bottom) |
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Material of Construction |
Aluminum
|
| Dimensions |
7.1 x 4.2 x 1.2" / 179.3 x 106.8 x 31 mm
|
| Weight |
1.01 lb / 460.00 g
|
| Package Weight |
2.375 lb
|
| Box Dimensions (LxWxH) |
9.8 x 6.8 x 2.6"
|
