Description
PORTKEYS HS8 Overview

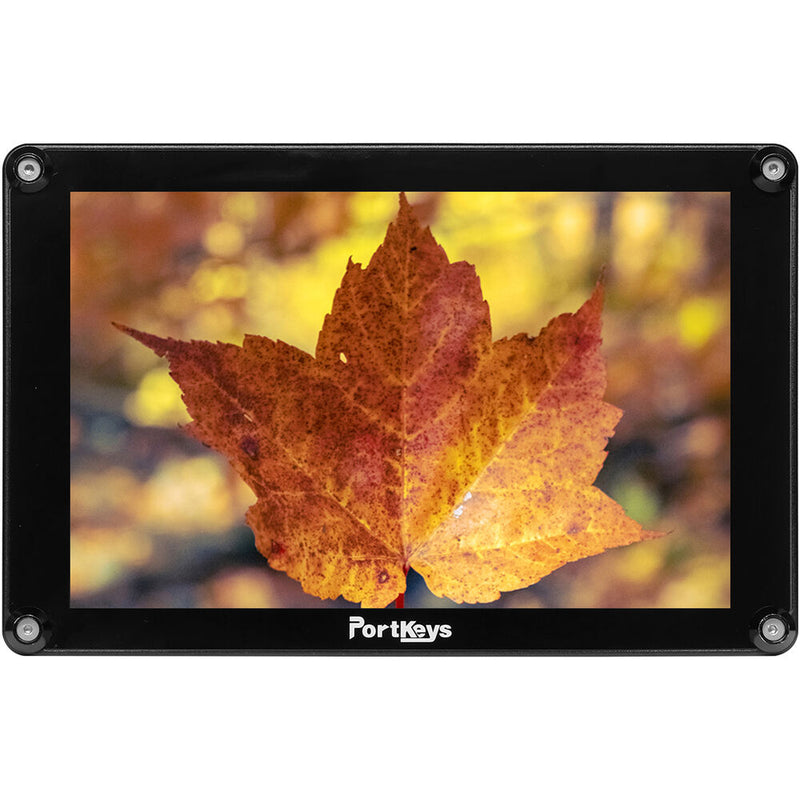

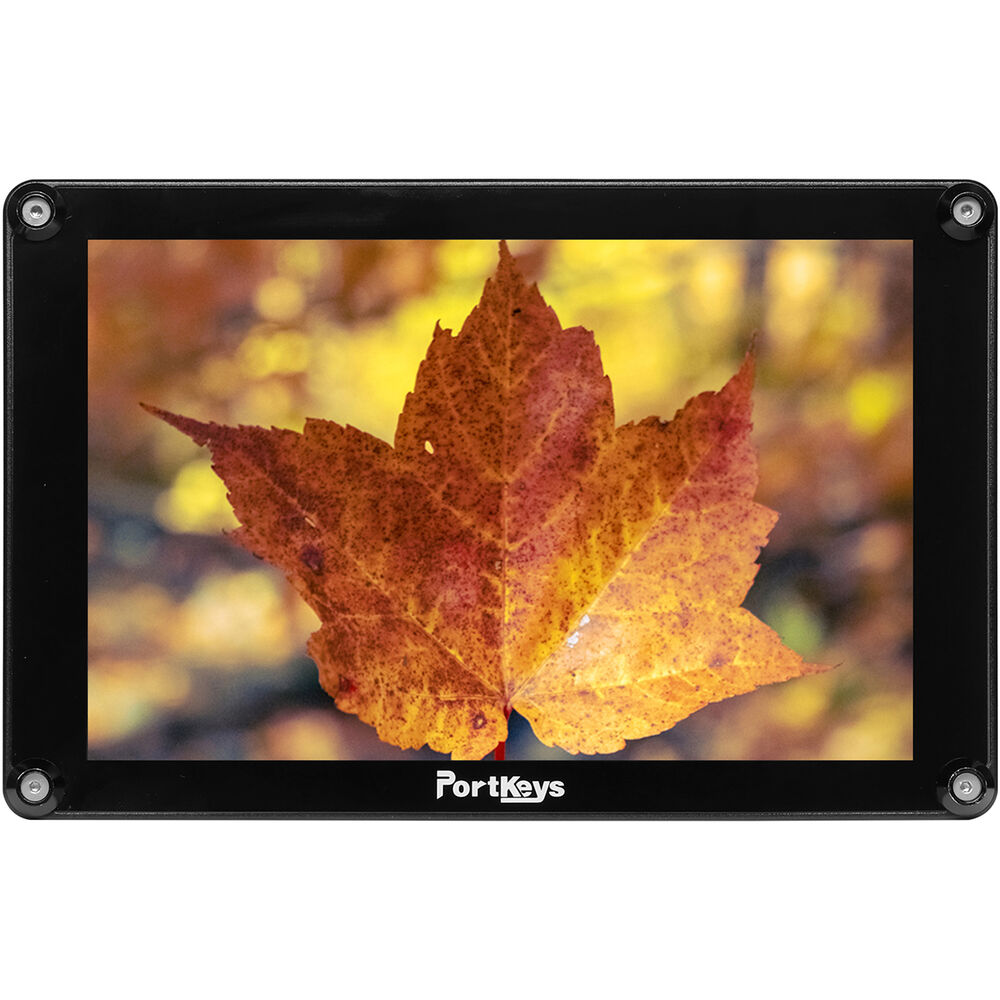

View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit color, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.
HDMI and 3G-SDI Input/Output

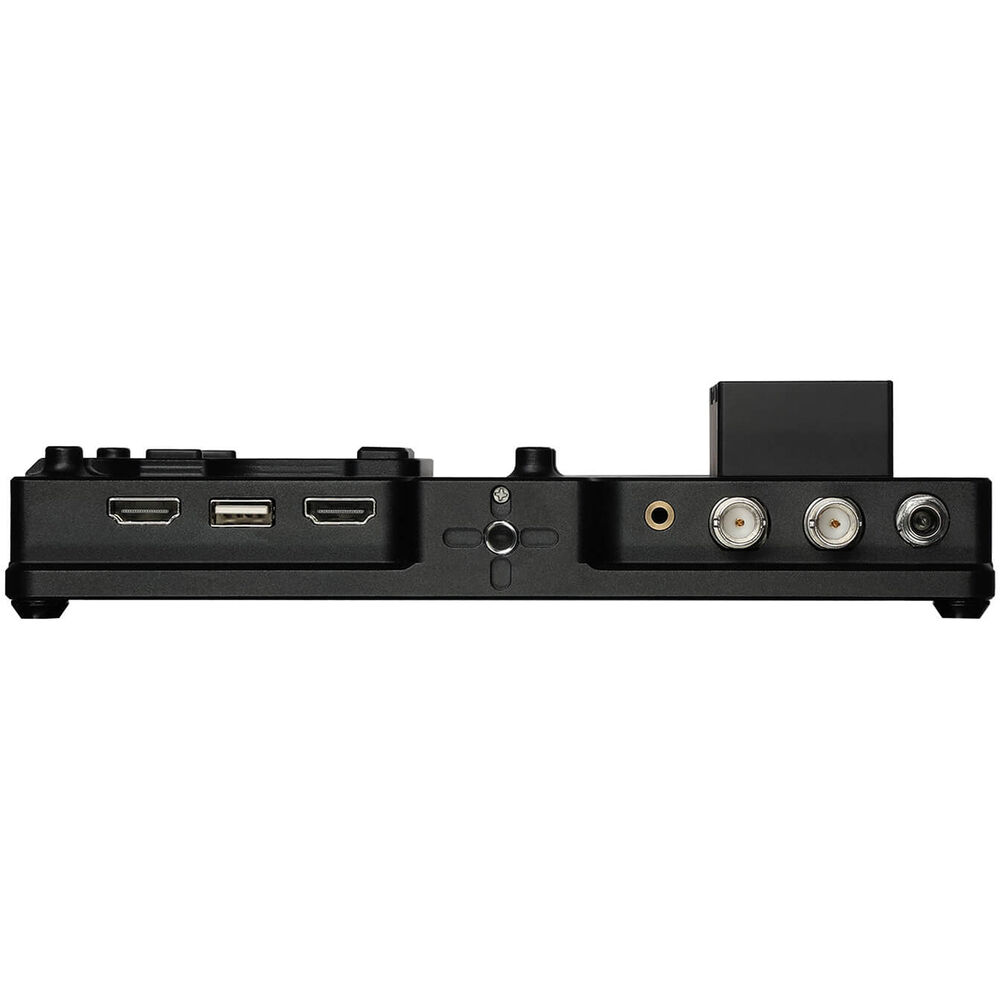

4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs
3D LUT Support
3D LUTs for color grading and monitoring can be applied to both the HDMI and SDI outputs
Hi-Bright Monitor

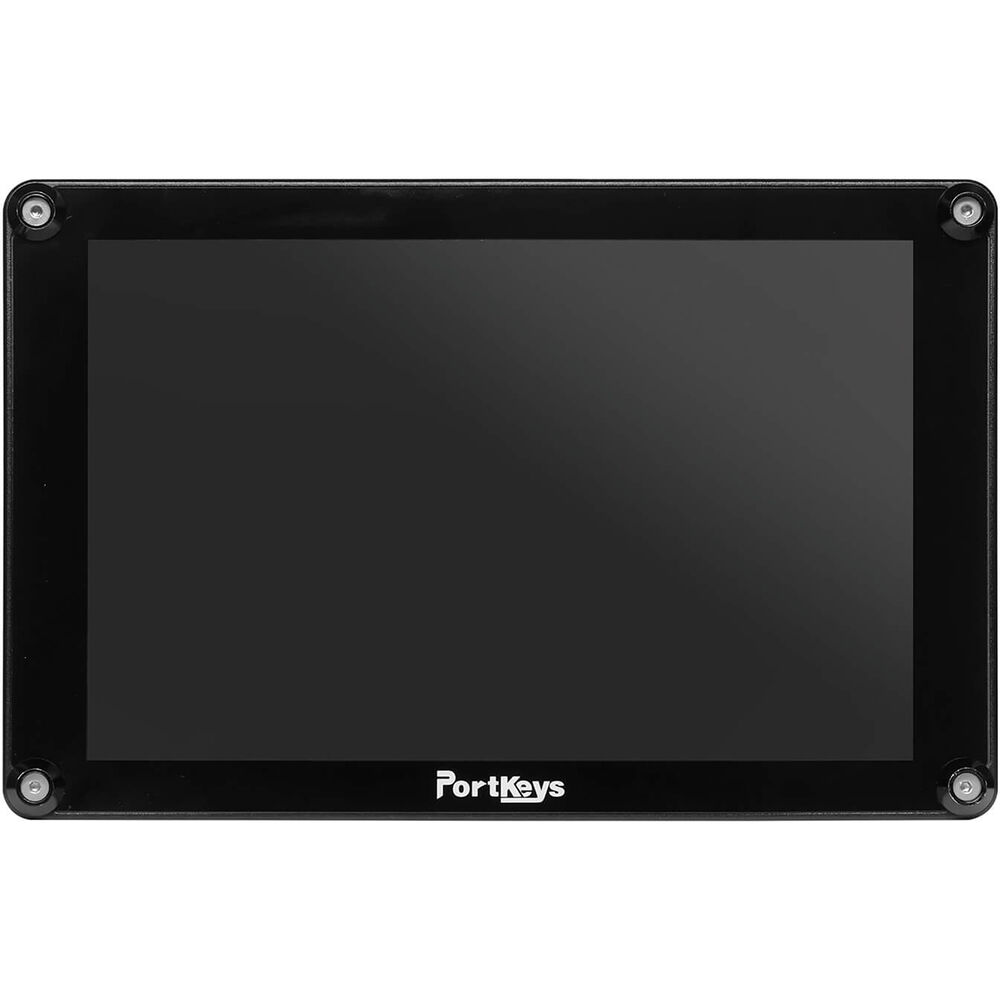

8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio
Durable Housing

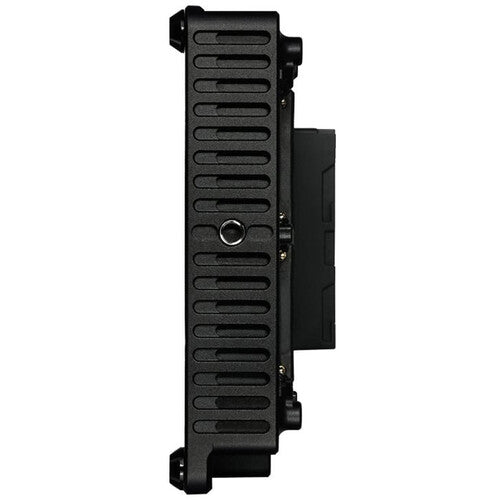

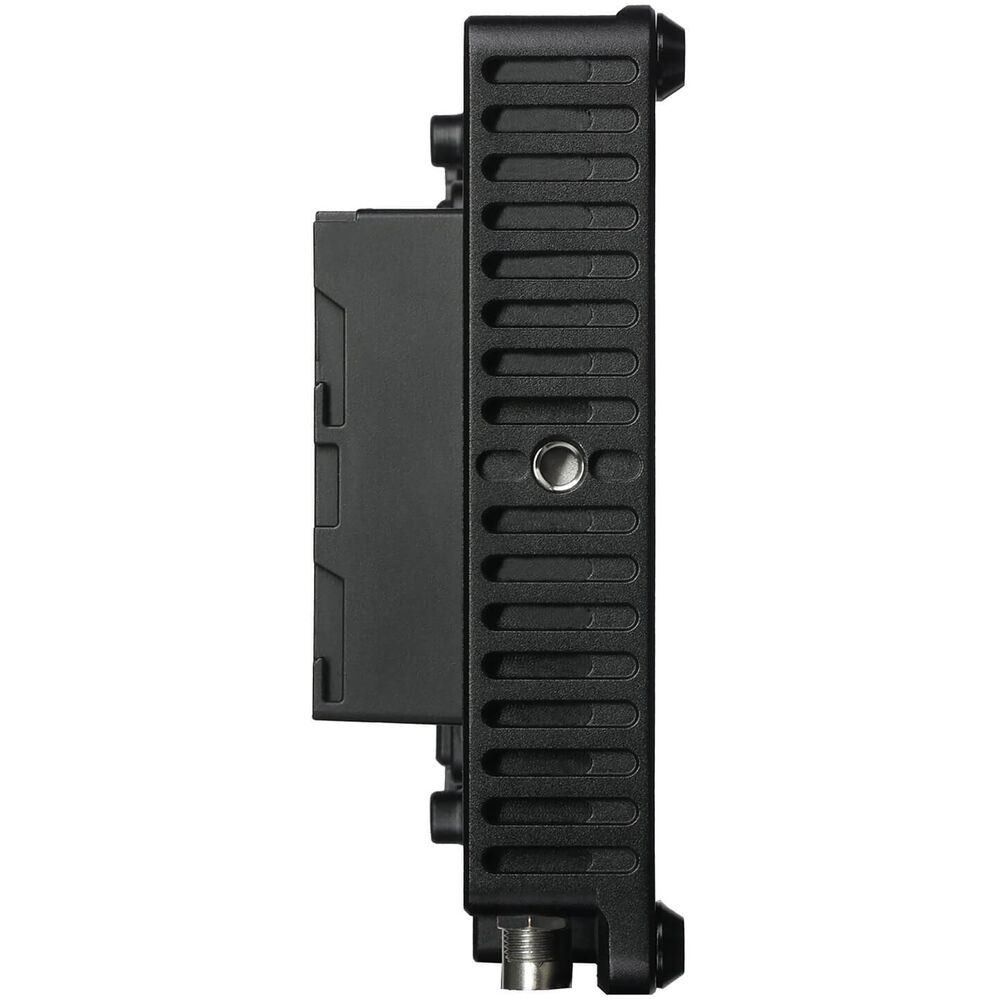

- Rugged, heat-dissipating CNC-machined aluminum alloy housing
- Top and bottom 1/4"-20 thread mounts

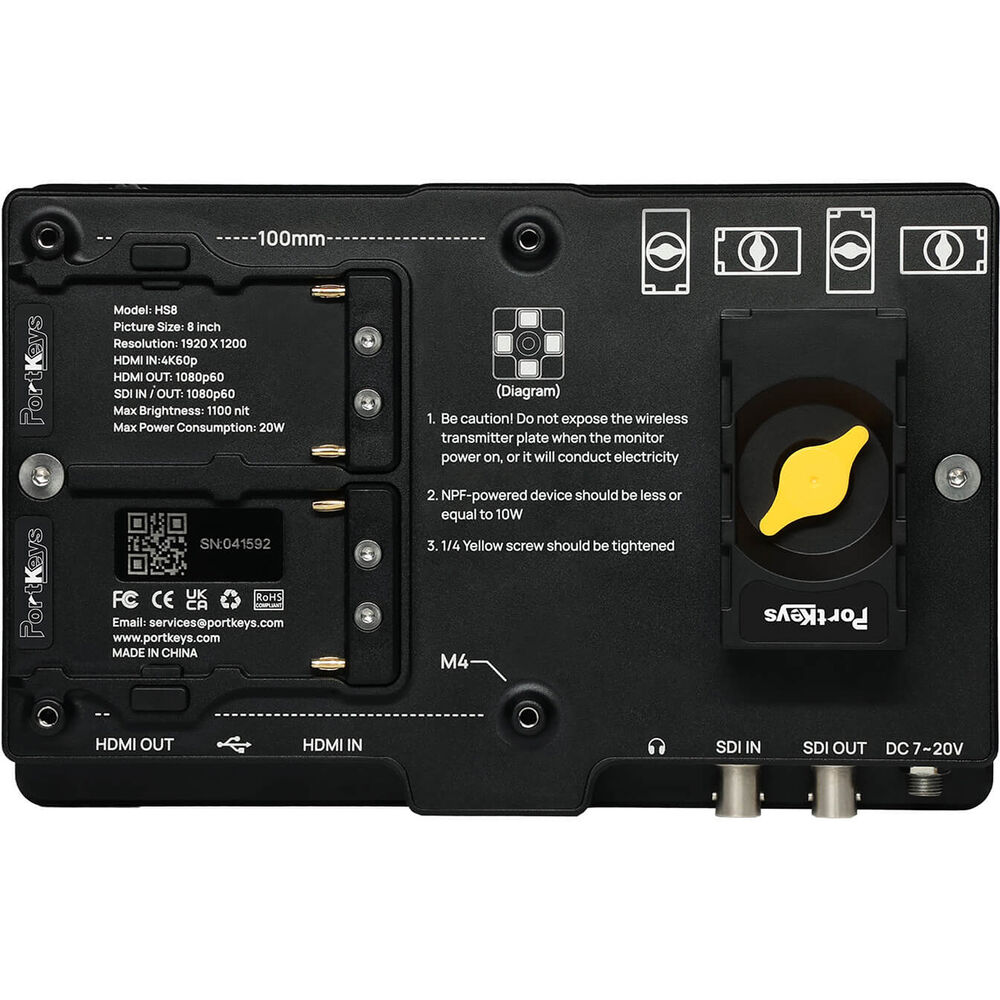

Hot-Swappable Battery Plates
- Hot-swappable, dual Sony L-series-type battery plates
- DC input port for power supply
Optional Wireless Video Transmitter
Comes with a detachable cover for the wireless video transmitter mount
Items Included
- PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
- D-Tap to DC Barrel Power Cable
- Screen Cleaning Cloth
- M2 Allen Key
- 4 x M3 Allen Screw
- 4 x Cup Head Gasket
- Micro-USB Flash Drive
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
PORTKEYS HS8 Specs
Key Specs
| Display Size |
8.0" / 20.3 cm
|
| Native Resolution |
1920 x 1200
|
| Touchscreen |
No
|
| HDR Support |
Yes
|
| Video I/O |
1x BNC (3G-SDI) Input
1x HDMI (Unspecified Signal) Input 1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 SDI (4:4:4/4:2:2/4:2:0 RGB, YUV) 1080PsF: 30/29.97/25/24/23.98 SDI (4:4:4/4:2:2) 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Battery Type |
2x L-Series
|
| Power Consumption |
20 W (Maximum)
|
| Mounting |
2x 1/4"-20 Female
|
Display
| Panel Type |
LCD
|
| Display Size |
8.0" / 20.3 cm
|
| Native Resolution |
1920 x 1200
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
No
|
| Maximum Brightness |
1100 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Color Support |
1.07 Billion Colors (8-Bit+FRC)
|
| HDR Support |
Yes
|
| Pixels Per Inch (ppi) |
283 ppi
|
| Color Gamut |
100% Rec. 709
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
|
Inputs/Outputs
| Video I/O |
1x BNC (3G-SDI) Input
1x HDMI (Unspecified Signal) Input 1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output |
| Embedded Audio |
HDMI
SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Power I/O |
1x Barrel (20 VDC) Input
|
| Other I/O |
1x USB-A (LUT Upload)
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI (4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 SDI (4:4:4/4:2:2/4:2:0 RGB, YUV) 1080PsF: 30/29.97/25/24/23.98 SDI (4:4:4/4:2:2) 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Video Signal Conversion |
HDMI to SDI
SDI to HDMI |
Power
| Input Power |
7 to 20 VDC
|
| Battery Type |
2x L-Series
|
| Power Consumption |
20 W (Maximum)
|
Mounting
| Mounting-Hole Pattern |
100 x 100 mm
|
| Mounting |
2x 1/4"-20 Female
|
General
| Material of Construction |
Aluminum
|
| Dimensions |
81.9 x 52.6 x 19.9" / 208 x 133.7 x 50.5 cm
|
| Weight |
23.81 oz / 675.00 g
|
Packaging Info
| Package Weight |
2.44 lb
|
| Box Dimensions (LxWxH) |
9.6 x 7.3 x 2.6"
|
