Description
PTZOptics HDSDI Overview
- 1Description
- 2Connect 3G-SDI Components
- 3Plenum Rated
- 4Belden Cable

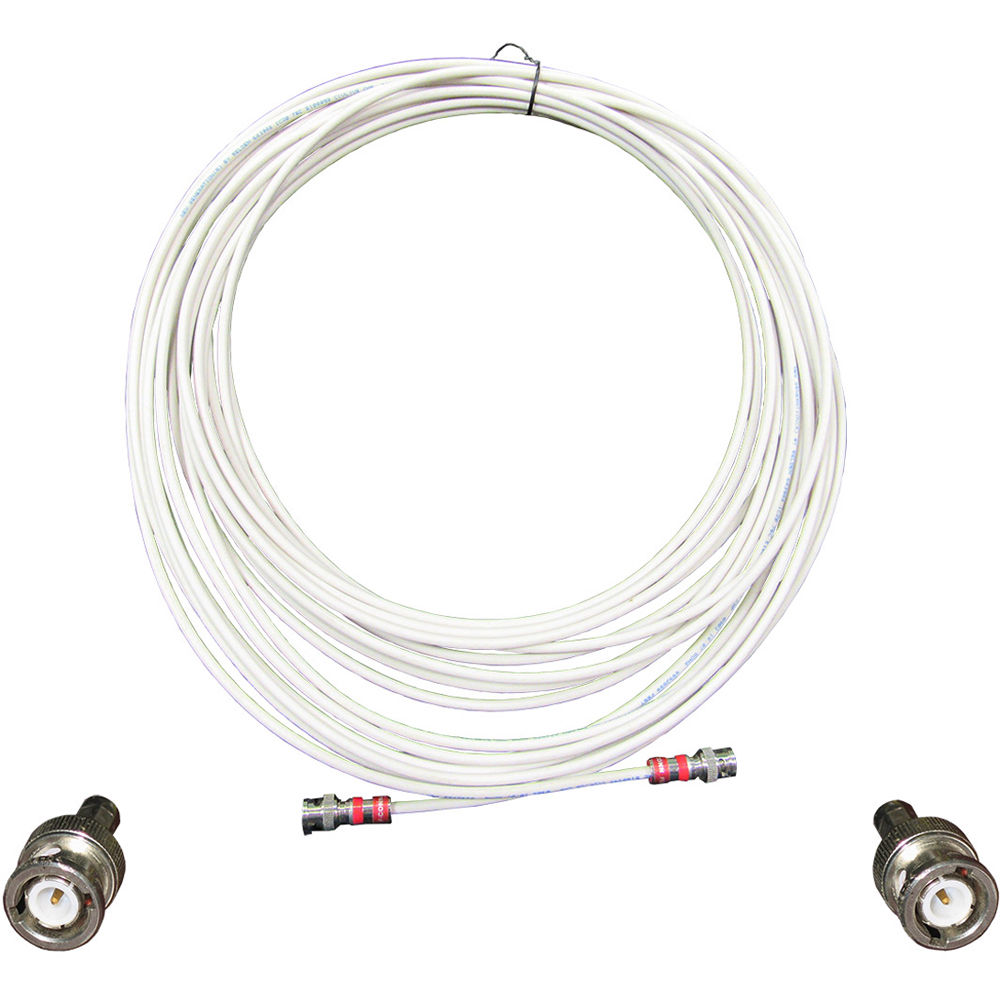

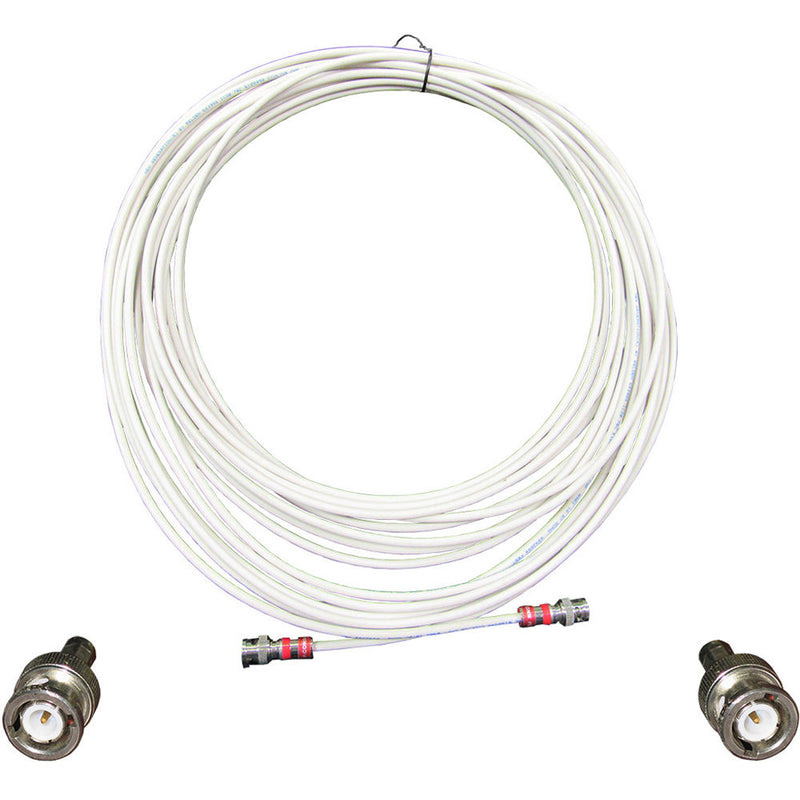

The 25' 3G-SDI Plenum Video Cable from PTZOptics is made from Belden 1695A cable with a male BNC connector on each end. Used to connect your camera to a video switcher or frame grabber, this white cable is plenum-rated, offering increased fire resistance compared to standard cables.
Connect 3G-SDI Components
Outputs a 3G-SDI signal from your camera to a switcher, frame grabber, or another video component
Plenum Rated
Plenum rated for increased fire resistance in your installations
Belden Cable
Constructed from Belden 1695A premium cable for durability
UPC: 053176516400
In the Box
- PTZOptics 3G-SDI Plenum Video Cable (25', White)
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Connect 3G-SDI Components
- Plenum Rated
- Belden Cable
PTZOptics HDSDI Specs
General
| Connector 1 |
1 x BNC
|
| Connector 2 |
1 x BNC
|
| Cable Length |
25' / 7.6 m
|
| Signal Type |
3G-SDI
|
| Coaxial Type |
RG-6 (1695A)
|
| Conductor Material |
Copper
|
| Insulation Type |
Foamed-Polyethylene (FM-PE)
|
| Jacket Type |
Polyvinyl Chloride (PVC)
|
| Shielding |
Tinned Copper Braid
|
| Wire Gauge |
18 AWG
|
Environmental
| Certifications |
CMP, EU, REACH, RoHS
|
| Operating Temperature |
32 to 107°F / 0 to 75°C
|
Packaging Info
| Package Weight |
1.1 lb
|
| Box Dimensions (LxWxH) |
11.7 x 11.6 x 1.7"
|
