Description

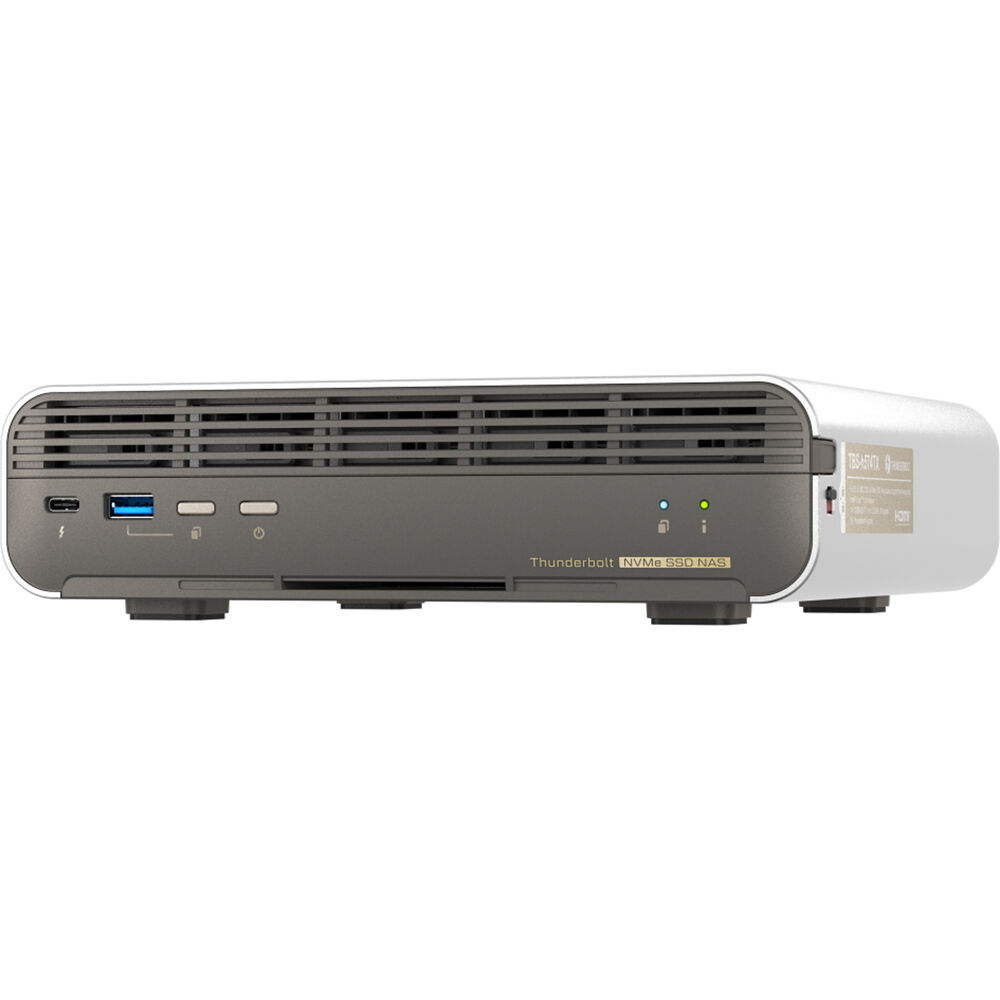

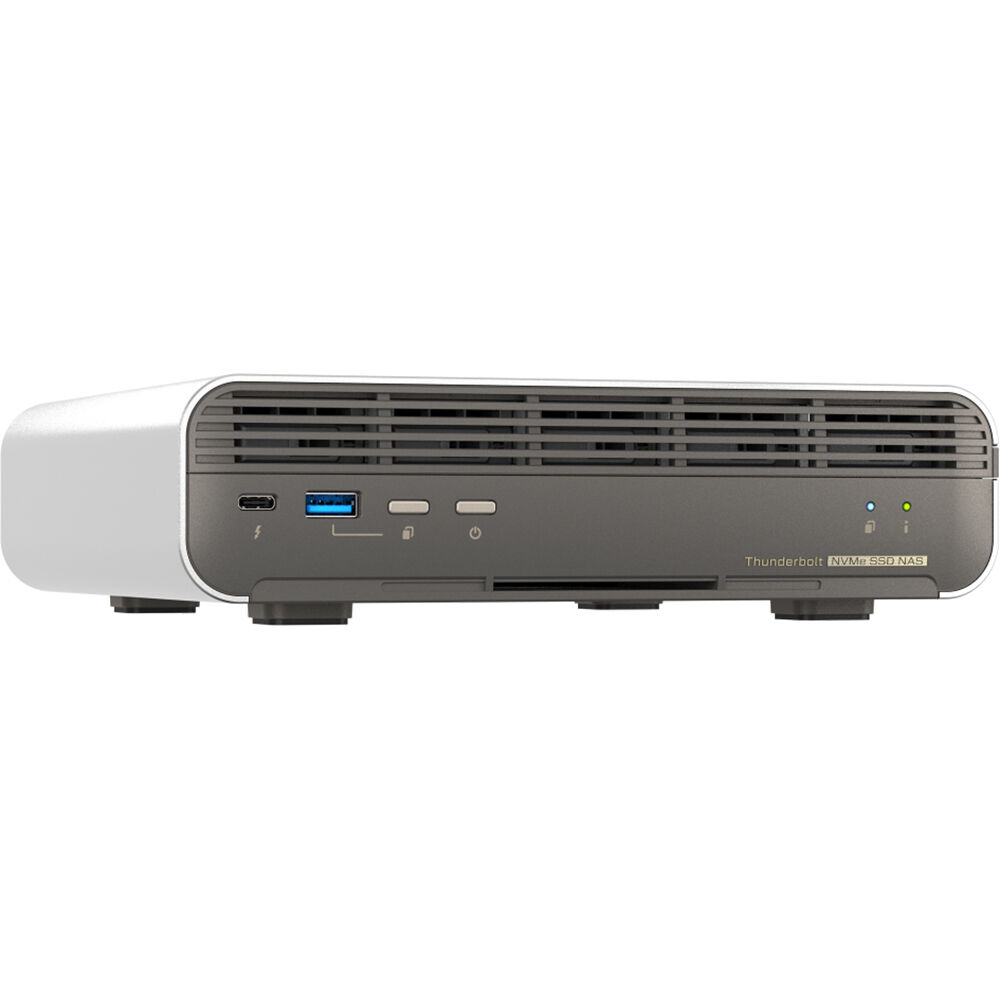

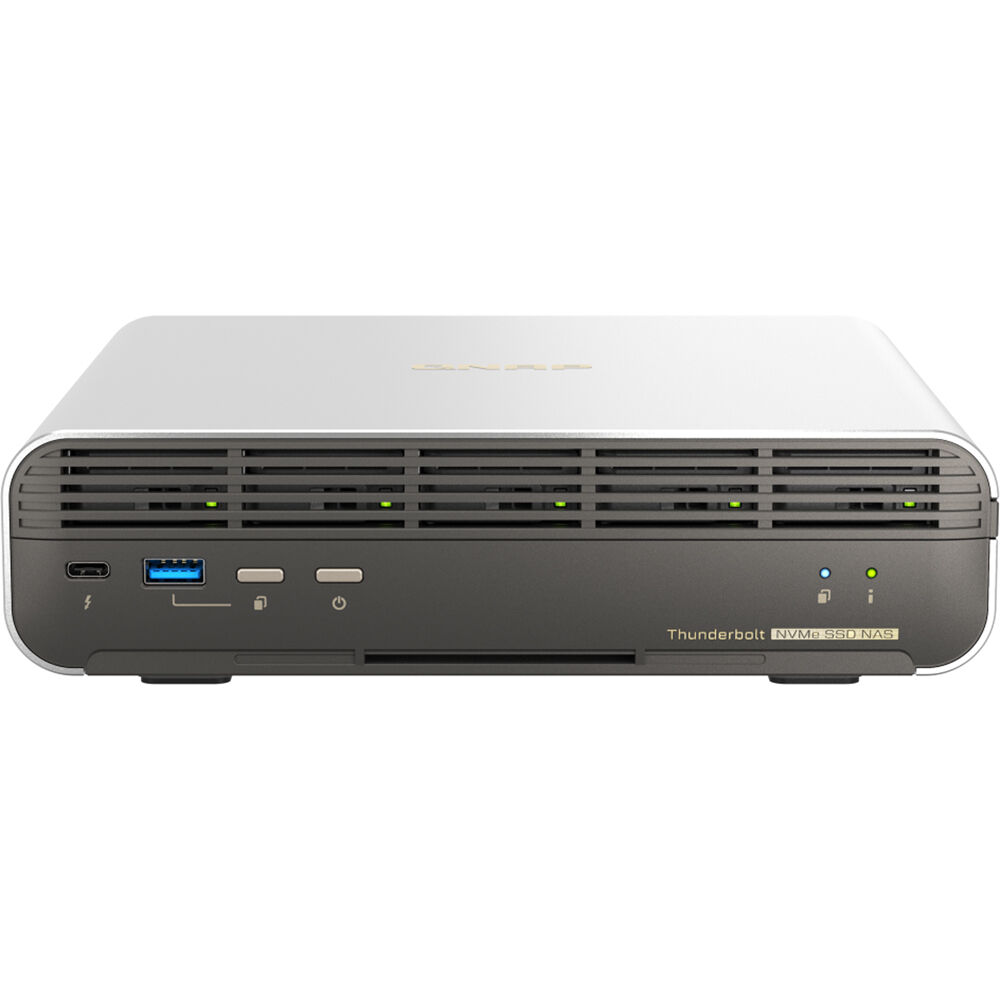

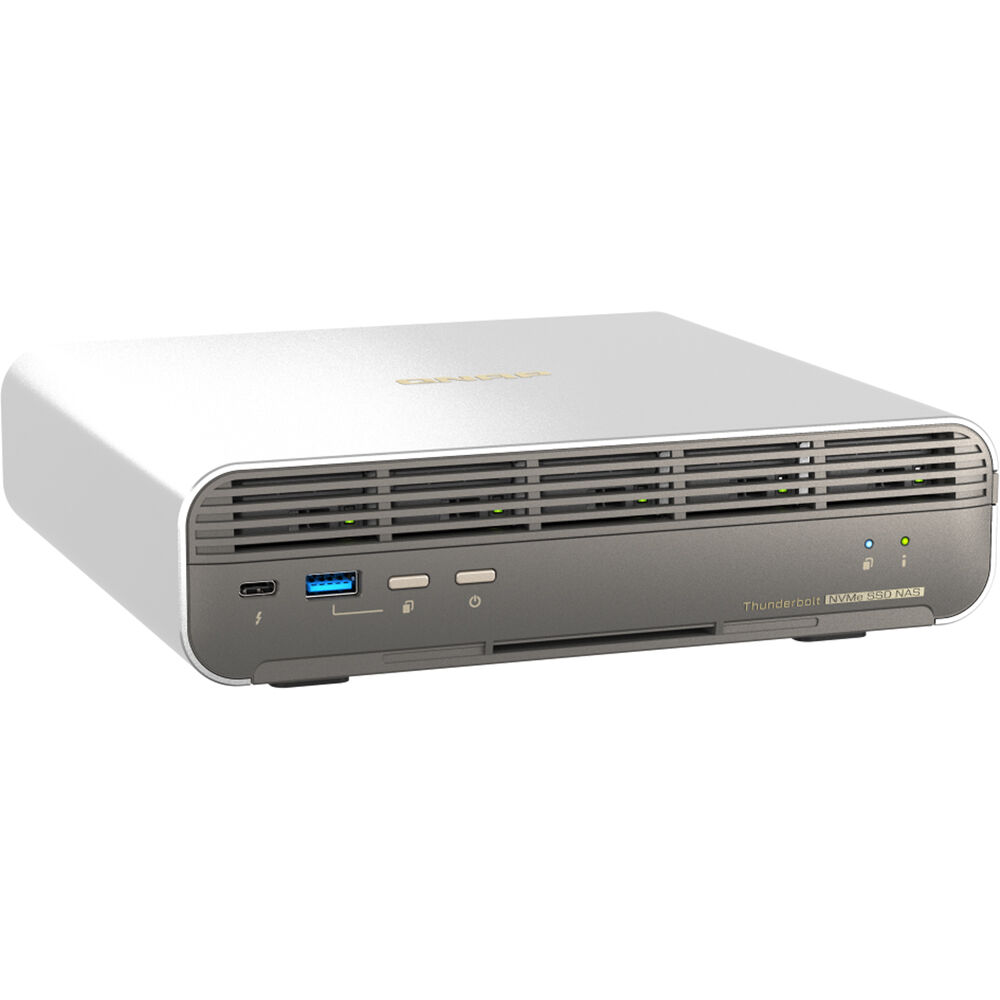

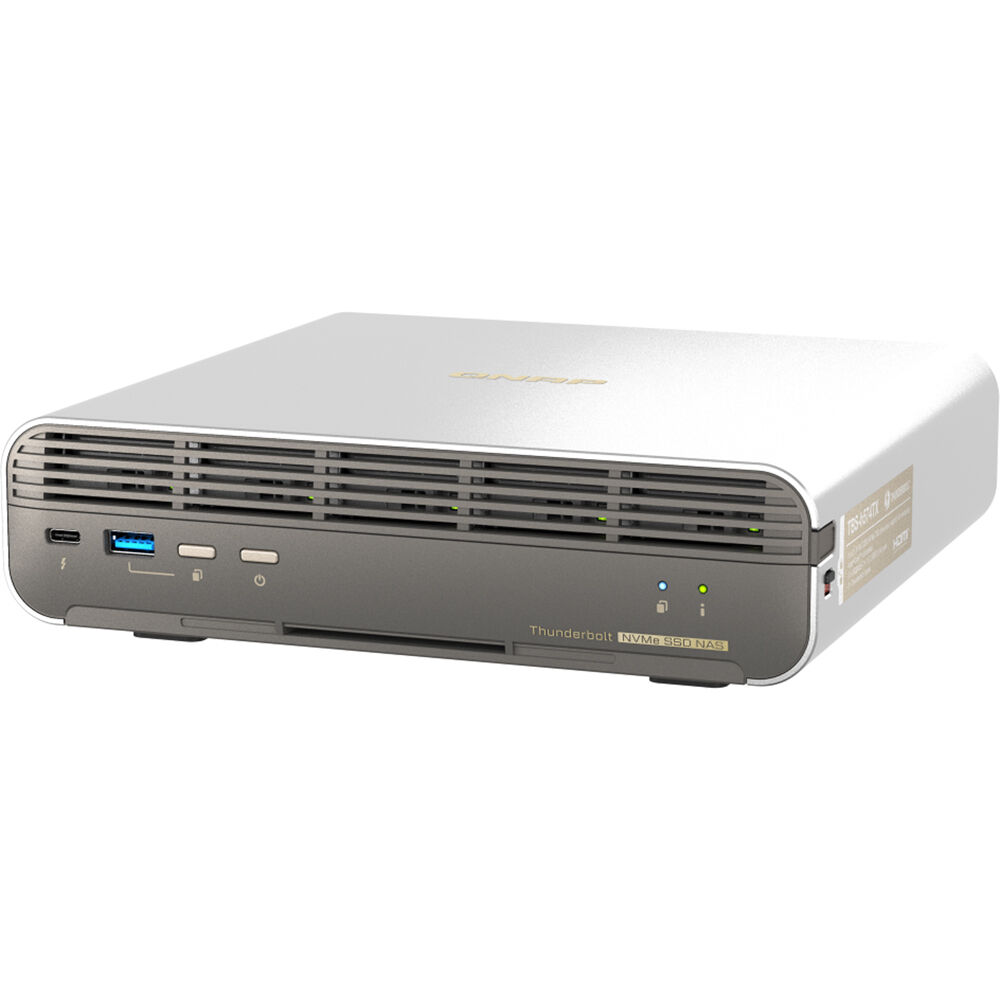

QNAP TBS-h574TX External HDD/SSD Overview
- 1Description
- 2All-Flash NASbook Supporting E1.S/M.2 NVMe SSDs - A Good Companion for Video Production
- 3M.2 SSD
- 4E1.S SSD
- 5Enabling Hot-Swappable M.2 SSDs
- 6High-Performance SSDs with Effective Heat Dissipation.
- 7Thunderbolt 4 Direct Connection to Workstations for Higher Productivity
- 8Transmission Efficiency
- 9Diverse I/O, Greater Possibilities
- 10Compact, Aesthetic, Yet Unmatched Performance
- 11Next-Gen Intel Core Processors with Hybrid Architecture for Multitasking Potential
- 12Recommended Video Production Scenarios
- 13Pre-Production
- 14Post-Production
- 15Remote Collaboration
- 16Ultimate Visual Experience with Real Time Video Transcoding and 4K HDMI Output
- 17Manage Your Video Projects Flexibly with myQNAPcloud Storage
- 18Build a Music Server with Roon
- 19ZFS-Based QuTS hero Operating System Unleashes SSD Performance, Reliability, and Endurance
- 20Flexibly Switch to the QTS Operating System
- 21Extend the Hardware Warranty to 5 Years
Designed for film sets, small studios, small-scale video production teams and SOHO users, the TBS-h574TX Thunderbolt 4 NASbook from QNAP elevates video production for optimum productivity. It packs high-speed I/O and Intel Core performance required by video production, allowing creators using Mac or Windows to enjoy a smooth experience in real-time video editing, large file transfer, video transcoding, and backup. The TBS-h574TX, as the bridge between pre-production and post-production, takes video projects and team collaboration to the next level.
Powered by a Intel Core i5-1340PE 12-Core processor, the TBS-h574TX has one 10GbE port, one 2.5GbE port, two Thunderbolt 4 ports, two USB-A 3.2 Gen 2 ports, and one USB-A 2.0 port for accelerating file transfer and versatile applications. The TBS-h574TX provides five E1.S NVMe PCIe 3.0 x2 SSD slots, all of which are preinstalled with an M.2 2280 adapter, and has one 4K / 30 Hz HDMI 1.4b output for transcoding and graphical computing for converting videos to different formats smoothly via integrated Intel Iris Xe Graphics. Included is a 10Gb Ethernet cable, an AC adapter, and a power cord. Protection is provided by a limited 3-year warranty.
All-Flash NASbook Supporting E1.S/M.2 NVMe SSDs - A Good Companion for Video Production
Compared to large rackmount all-flash array storage, the TBS-h574TX all-flash NASbook features a compact, portable design with five SSD slots, yet delivers extreme performance. It is the ideal choice to accelerate ongoing creative video projects from pre-production to post-production, and seamlessly works with USB DAS (TR-004) for file backup/archiving. The TBS-h574TX is always ready for your next project. An E1.S to M.2 SSD adapter is attached to each drive bay of the TBS-h574TX, providing great flexibility to choose between M.2 SSDs and E1.S SSDs on demand.
M.2 SSD
- Supports M.2 2280 modules
- Smaller capacity but more available on the market
- More affordable and more vendor options; suited for diverse applications
- Faster than SATA SSDs
E1.S SSD
- Supports heights of 5.9, 9.5, and 15mm
- Larger capacity but less common on the market
- Suited for high-intensity data transfer and is more future-proof
- Compared to M.2 SSDs, E1.S SSDs are hot-swappable and have higher heat dissipation efficiency
- Advanced power-loss protection (PLP) that prevents data loss
Enabling Hot-Swappable M.2 SSDs
As a frontline video production team, there is the risk of project interruptions due to unexpected SSD failures in storage devices. The innovative TBS-h574TX makes M.2 SSDs become hot-swappable for easier drive replacement. Along with supporting automatic RAID replacement with spares (supported from QTS 5.1 / QuTS hero h5.1), if potential drive errors are detected, the system automatically moves data from the affected drive in a RAID group to a spare, before the data on the affected drive is completely corrupted. This reduces system downtime and data loss risks as it avoids RAID rebuilding.
High-Performance SSDs with Effective Heat Dissipation.
Designed with an excellent cooling system, the TBS-h574TX is equipped with dual fans and supports SSD heatsinks (heatsinks sold separately) to effectively enhance heat dissipation during intensive workloads, allowing creators to confidently enjoy the ultimate performance of SSD.
Thunderbolt 4 Direct Connection to Workstations for Higher Productivity
The TBS-h574TX has two Thunderbolt 4 ports for high-speed data transfer (up to 20 Gb/s bandwidth). Mac (including M1 and M2 chip models) or Windows workstations can directly connect to the TBS-h574TX for fast and smooth real time video editing, allowing for the transfer of a 1TB 4K video just in 11 minutes.
- QNAP Thunderbolt NAS adopts Thunderbolt Networking for peer-to-peer connection, up to 20 Gb/s
- Mac system requirement: macOS 13.5 (or later)
- Connect the TBS-h574TX to your Mac or Windows PC with Thunderbolt 4 / Thunderbolt 3 cables and your connected devices with the Thunderbolt icon
Transmission Efficiency
TBS-h574TX (1 x Direct Connected Client)
Writes up to 1637 MB/s, reads up to 1736 MB/s
TBS-h574TX (2 x Direct Connected Client)
Writes up to 3082 MB/s, reads up to 2876 MB/s
Writes up to 1637 MB/s, reads up to 1736 MB/s
TBS-h574TX (2 x Direct Connected Client)
Writes up to 3082 MB/s, reads up to 2876 MB/s
Diverse I/O, Greater Possibilities
2.5GbE and 10GbE Ports | Productive Teamwork
The 2.5GbE and 10GbE ports can be used with a network switch to add more connected devices to the TBS-h574TX for collaboration, significantly reducing file transfer times across devices.
USB 3.2 Gen 2 Ports | Faster File Import/Export
Creators and editors can easily import materials from external storage devices to the TBS-h574TX via two USB 3.2 Gen 2 (10 Gb/s) ports and one USB 2.0 port during pre/post-production.
USB Ports | Easier Storage Expansion
The TBS-h574TX capacity is scalable by connecting QNAP USB DAS TR-004 or USB JBOD TL-D800C to archive massive number of video files for ever-growing storage and backup needs.
The 2.5GbE and 10GbE ports can be used with a network switch to add more connected devices to the TBS-h574TX for collaboration, significantly reducing file transfer times across devices.
USB 3.2 Gen 2 Ports | Faster File Import/Export
Creators and editors can easily import materials from external storage devices to the TBS-h574TX via two USB 3.2 Gen 2 (10 Gb/s) ports and one USB 2.0 port during pre/post-production.
USB Ports | Easier Storage Expansion
The TBS-h574TX capacity is scalable by connecting QNAP USB DAS TR-004 or USB JBOD TL-D800C to archive massive number of video files for ever-growing storage and backup needs.
Compact, Aesthetic, Yet Unmatched Performance
The TBS-h574TX provides content creators the perfect combination of stylish design and performance. With its metal-finish case, it delivers optimized cooling performance. The set-top design makes the TBS-h574TX space-saving �smaller than A4 paper and with only 2.54L in volume� ideal for small-scale studios or video production teams looking for a portable solution.
Next-Gen Intel Core Processors with Hybrid Architecture for Multitasking Potential
The TBS-h574TX adopts the 13th Gen Intel Core hybrid-architecture?processor with P-core (Performance-core) and E-core (Efficient-core) performance. Multi-core and multi-thread advantages enable higher multitasking performance with lower CPU workloads and resource consumption, empowering creators with higher productivity.
Processor
Intel Core i5-1340PE 12-Core (4P + 8E) and 16-thread processor, up to 4.5 GHz
Memory
Built-in 16GB of DDR4 memory
GPU
Built-in Intel Iris Xe Graphics accelerate video processing and graphical computing
Encryption Engine
Features Intel AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data
Processor
Intel Core i5-1340PE 12-Core (4P + 8E) and 16-thread processor, up to 4.5 GHz
Memory
Built-in 16GB of DDR4 memory
GPU
Built-in Intel Iris Xe Graphics accelerate video processing and graphical computing
Encryption Engine
Features Intel AES-NI 256 hardware-accelerated encryption to boost system performance while securing sensitive data
Recommended Video Production Scenarios
Pre-Production
Best video file management solution for DIT, raw footage on-site editing and powerful video transcoding.
Post-Production
Productive team collaboration.
Remote Collaboration
Hot-swappable M.2 SSDs facilitate file sharing for collaboration and delivery.
Best video file management solution for DIT, raw footage on-site editing and powerful video transcoding.
Post-Production
Productive team collaboration.
Remote Collaboration
Hot-swappable M.2 SSDs facilitate file sharing for collaboration and delivery.
Pre-Production
DIT (Digital Imaging Technician) is the keyman to take responsibility of video file management on shooting site in a frontline video production team.
DIT can quickly import large raw footage from camera SD cards to the TBS-h574TX through USB 3.2 Gen 2 (10Gbps) ports and proceed with video transcoding on the NASbook. In addition to saving RAW files, DIT can easily share small files with remote teams for instant discussion and confirmation, or save files to external hard drives or cloud storage.
The TBS-h574TX comes with a built-in HDMI output, allowing on-site personnel to immediately play raw footage from the NASbook on a large screen. The team can also complete the rough cut on-site using Thunderbolt 4, significantly reducing the post-production team's workload.
Benefits for a Pre-Production Team
DIT can quickly import large raw footage from camera SD cards to the TBS-h574TX through USB 3.2 Gen 2 (10Gbps) ports and proceed with video transcoding on the NASbook. In addition to saving RAW files, DIT can easily share small files with remote teams for instant discussion and confirmation, or save files to external hard drives or cloud storage.
The TBS-h574TX comes with a built-in HDMI output, allowing on-site personnel to immediately play raw footage from the NASbook on a large screen. The team can also complete the rough cut on-site using Thunderbolt 4, significantly reducing the post-production team's workload.
Benefits for a Pre-Production Team
- Fast file import from SD cards to NASbook
- Store small files to myQNAPcloud Storage
- Remote access and sharing video files
- High-resolution video display using HDMI output
- Rough cut on-site using Thunderbolt 4
Post-Production
NAS is way more collaborative than DAS. The TBS-h574TX provides Thunderbolt 4 and 10GbE connectivity that allow the post-production team to edit video files directly from the NASbook, without waiting for files to move from drive to drive, computer to computer.
Once the post-production team finishes current video editing projects on the TBS-h574TX, they can save the final files to a USB DAS (such as TR-004) to free up the NASbook's storage space for the next project.
Benefits for a Post-Production Team
Once the post-production team finishes current video editing projects on the TBS-h574TX, they can save the final files to a USB DAS (such as TR-004) to free up the NASbook's storage space for the next project.
Benefits for a Post-Production Team
- Directly connect the NASbook to Mac via Thunderbolt 4
- Directly connect the NASbook to Windows workstations through 10GbE and 2.5GbE connectivity
- File storage and backup by connecting a DAS through the high-speed UBS 3.2 Gen 2 ports
Remote Collaboration
Due to the difficulty of sharing large media files over networks, remote teams often resort to physically exchanging files by using external hard drives. Now the TBS-h574TX also offers a portable file exchanging/delivery solution.
You can implement a TBS-h574TX for each of the remote work teams, configuring three M.2 SSDs in RAID 5, and the remaining two M.2 SSDs as single disk. The TBS-h574TX makes M.2 SSDs hot-swappable, allowing you to treat the two M.2 SSDs with single disk mode as portable external hard drives: simply remove SSDs from one NASbook and insert them to another NASbook for fast large-scale file transfer.
Benefits for a Remote Teamwork
You can implement a TBS-h574TX for each of the remote work teams, configuring three M.2 SSDs in RAID 5, and the remaining two M.2 SSDs as single disk. The TBS-h574TX makes M.2 SSDs hot-swappable, allowing you to treat the two M.2 SSDs with single disk mode as portable external hard drives: simply remove SSDs from one NASbook and insert them to another NASbook for fast large-scale file transfer.
Benefits for a Remote Teamwork
- Hot-swappable feature enables physically transferring large media files
Ultimate Visual Experience with Real Time Video Transcoding and 4K HDMI Output
The TBS-h574TX features built-in Intel Graphics that accelerates video transcoding and graphical computing for converting videos to different formats smoothly. You can also display videos from the TBS-h574TX to a large screen using HDMI (4K at 30 Hz) for capturing details and clearer quality.
The TBS-h574TX provides hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors (including playback software, file formats, system usage, and available bandwidth). H.265 hardware transcoding requires installing CAYIN MediaSign Player with a Plus license.
The TBS-h574TX provides hardware decoding, encoding, and transcoding capabilities. However, playback quality may vary due to factors (including playback software, file formats, system usage, and available bandwidth). H.265 hardware transcoding requires installing CAYIN MediaSign Player with a Plus license.
Manage Your Video Projects Flexibly with myQNAPcloud Storage
Elevate your video production with the compact and powerful TBS-h574TX. During pre-production, you can save large raw files (hot data) and handle video transcoding on the TBS-h574TX. In post-production you can store small files (cold data) to myQNAPcloud Storage for file archiving and backup, making it easier to remotely access, synchronize, and share files with cross-site team members.
Build a Music Server with Roon
Designed for music lovers, Roon Server identifies your entire music library stored on the TBS-h574TX and consolidates it into Roon's interconnected digital library. Experiencing smooth music streaming service, you just need to download Roon Server app from QNAP App Center and enable Roon music library on SSD storage devices with simple setting.
ZFS-Based QuTS hero Operating System Unleashes SSD Performance, Reliability, and Endurance
Self-Healing | Ensure Data Integrity
ZFS uses end-to-end checksums to detect, correct, and protect against silent data corruption, ensuring the data integrity of media files.
QSAL (QNAP SSD Antiwear Leveling) | Enhance Data Protection
QNAP's patented QSAL algorithm prevents simultaneous multi-SSD failures in an SSD RAID for greater data protection and system reliability.
SSD Extra Over-Provisioning | Unleash SSD Performance
Resolves SSD write performance degradation and write amplification. By configuring extra Over-provisioning for an SSD RAID, it improves random write performance and mitigates write amplification, thus extending SSD lifespans.
Power Failure Protection | Bolster Data Security
The QuTS hero operating system ensures that the TBS-h574TX can continue completing unfinished data writes after power outage followed by a power restoration, preventing data corruption while modifying data and without the need to wait for file system check.
Note: ZFS Inline Data Deduplication is disabled by default in the TBS-h574TX. Due to memory limitations, it is not recommended to enable this feature.
ZFS uses end-to-end checksums to detect, correct, and protect against silent data corruption, ensuring the data integrity of media files.
QSAL (QNAP SSD Antiwear Leveling) | Enhance Data Protection
QNAP's patented QSAL algorithm prevents simultaneous multi-SSD failures in an SSD RAID for greater data protection and system reliability.
SSD Extra Over-Provisioning | Unleash SSD Performance
Resolves SSD write performance degradation and write amplification. By configuring extra Over-provisioning for an SSD RAID, it improves random write performance and mitigates write amplification, thus extending SSD lifespans.
Power Failure Protection | Bolster Data Security
The QuTS hero operating system ensures that the TBS-h574TX can continue completing unfinished data writes after power outage followed by a power restoration, preventing data corruption while modifying data and without the need to wait for file system check.
Note: ZFS Inline Data Deduplication is disabled by default in the TBS-h574TX. Due to memory limitations, it is not recommended to enable this feature.
Flexibly Switch to the QTS Operating System
The TBS-h574TX also supports QTS �QNAP's standard NAS operating system� that provides great everyday performance, efficient memory utilization, and the advantage of Qtier auto-tiering. You can also migrate drives from your current QTS-based NAS to the TBS-h574TX.
QTS
Suited for cross-teams file sync, and HDD-SSD hybrid storage applications.
QuTS hero
Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications.
Note: QTS and QuTS hero use different file systems. You must remove all the drives from the TBS-h574TX before switching from QuTS hero to QTS.
QTS
Suited for cross-teams file sync, and HDD-SSD hybrid storage applications.
QuTS hero
Featuring highly reliable data protection and data reduction, and optimized for SSD-based applications.
Note: QTS and QuTS hero use different file systems. You must remove all the drives from the TBS-h574TX before switching from QuTS hero to QTS.
Extend the Hardware Warranty to 5 Years
The TBS-h574TX is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
UPC: 885022026869
In the Box
- QNAP TBS-h574TX Thunderbolt 4 NASbook
- 10GBASE-T Ethernet Cable
- AC Adapter
- Power Cord
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- All-Flash NASbook Supporting E1.S/M.2 NVMe SSDs - A Good Companion for Video Production
- M.2 SSD
- E1.S SSD
- Enabling Hot-Swappable M.2 SSDs
- High-Performance SSDs with Effective Heat Dissipation.
- Thunderbolt 4 Direct Connection to Workstations for Higher Productivity
- Transmission Efficiency
- Diverse I/O, Greater Possibilities
- Compact, Aesthetic, Yet Unmatched Performance
- Next-Gen Intel Core Processors with Hybrid Architecture for Multitasking Potential
- Recommended Video Production Scenarios
- Pre-Production
- Post-Production
- Remote Collaboration
- Ultimate Visual Experience with Real Time Video Transcoding and 4K HDMI Output
- Manage Your Video Projects Flexibly with myQNAPcloud Storage
- Build a Music Server with Roon
- ZFS-Based QuTS hero Operating System Unleashes SSD Performance, Reliability, and Endurance
- Flexibly Switch to the QTS Operating System
- Extend the Hardware Warranty to 5 Years
QNAP TBS-h574TX External HDD/SSD Specs
Key Specs
| Number of Bays |
5x E1.S
|
| Inputs/Outputs |
2x USB-C Thunderbolt 4
2x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0 1x HDMI 1.4b Output 1x RJ45 10GbE 1x RJ45 2.5GbE |
| Compatible Drive Interface |
NVMe
|
| RAID |
RAID 0/1/5/6/JBOD
|
Computing
| CPU |
12-Core:
Up to 4.5 GHz Performance (4 Cores) Up to 3.3 GHz Efficiency (8 Cores) |
| Processor |
Intel Core i5-1340PE (13th Gen)
|
| GPU |
Intel Iris Xe
|
| Total Installed Memory |
16 GB DDR4
|
| Flash Memory |
5 GB
|
General
| Number of Bays |
5x E1.S
|
| Inputs/Outputs |
2x USB-C Thunderbolt 4
2x USB-A 3.1/3.2 Gen 2 1x USB-A 2.0 1x HDMI 1.4b Output 1x RJ45 10GbE 1x RJ45 2.5GbE |
| Compatible Drive Interface |
NVMe
|
| Media Card Slots |
No
|
| Form Factor |
Portable
|
| RAID |
RAID 0/1/5/6/JBOD
|
