Description

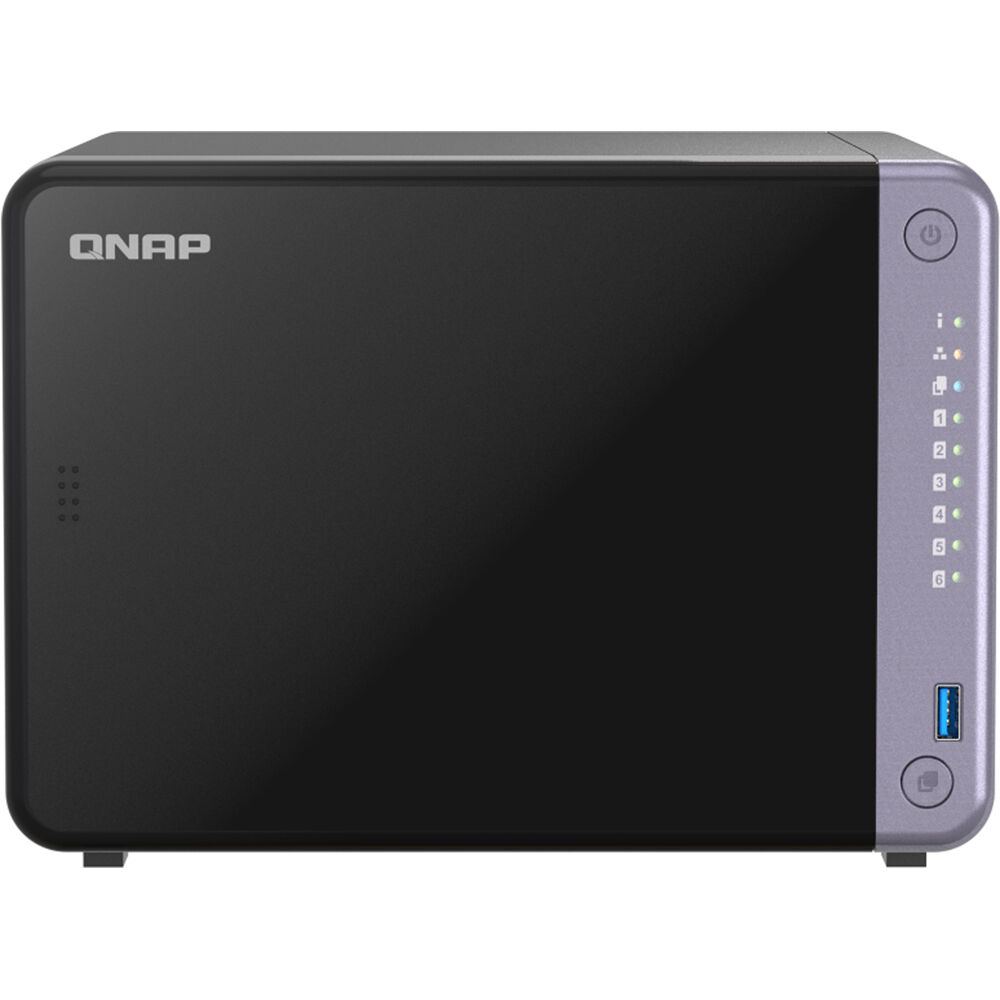

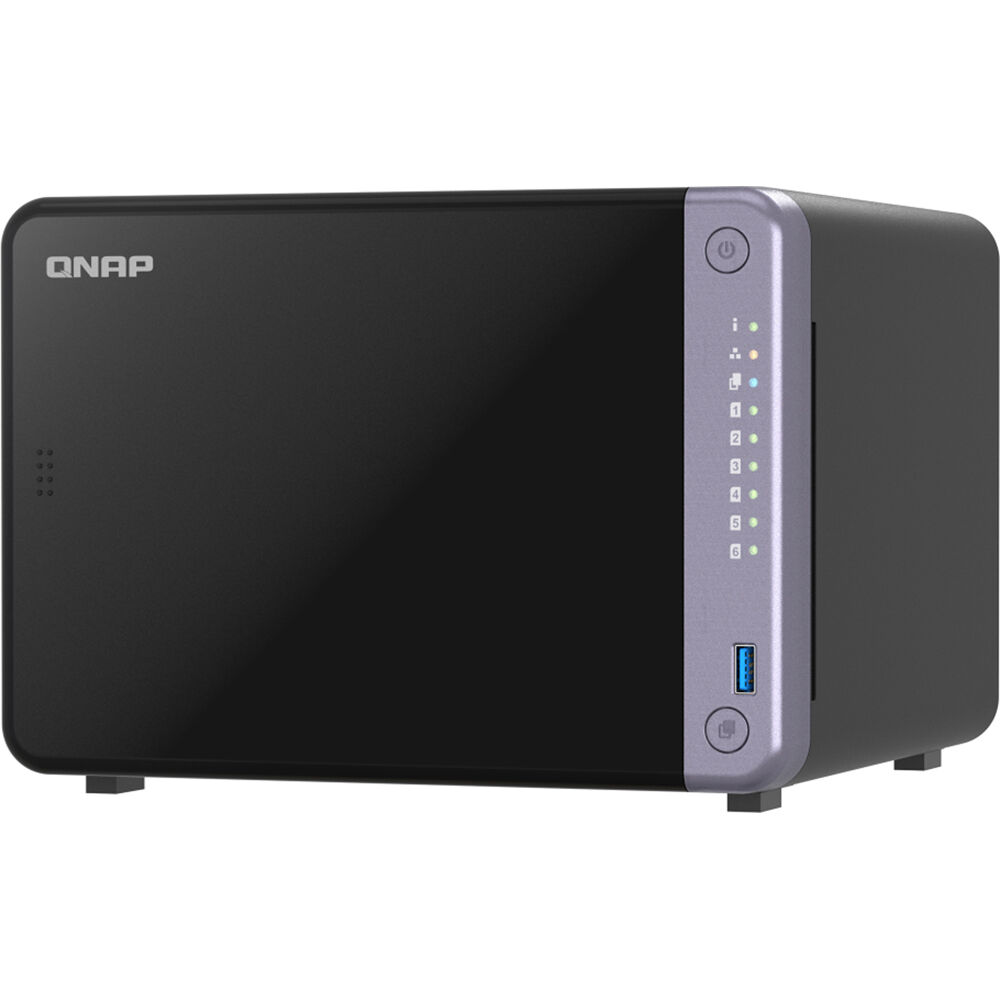

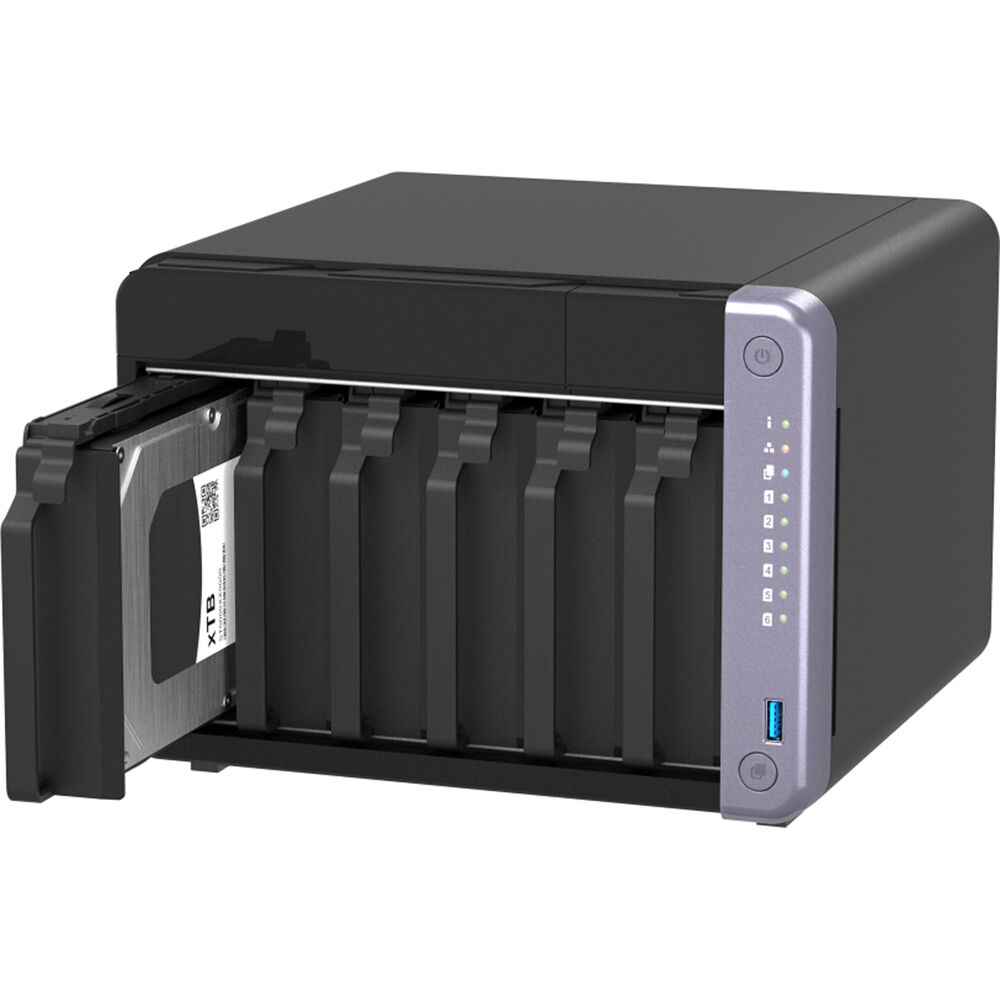

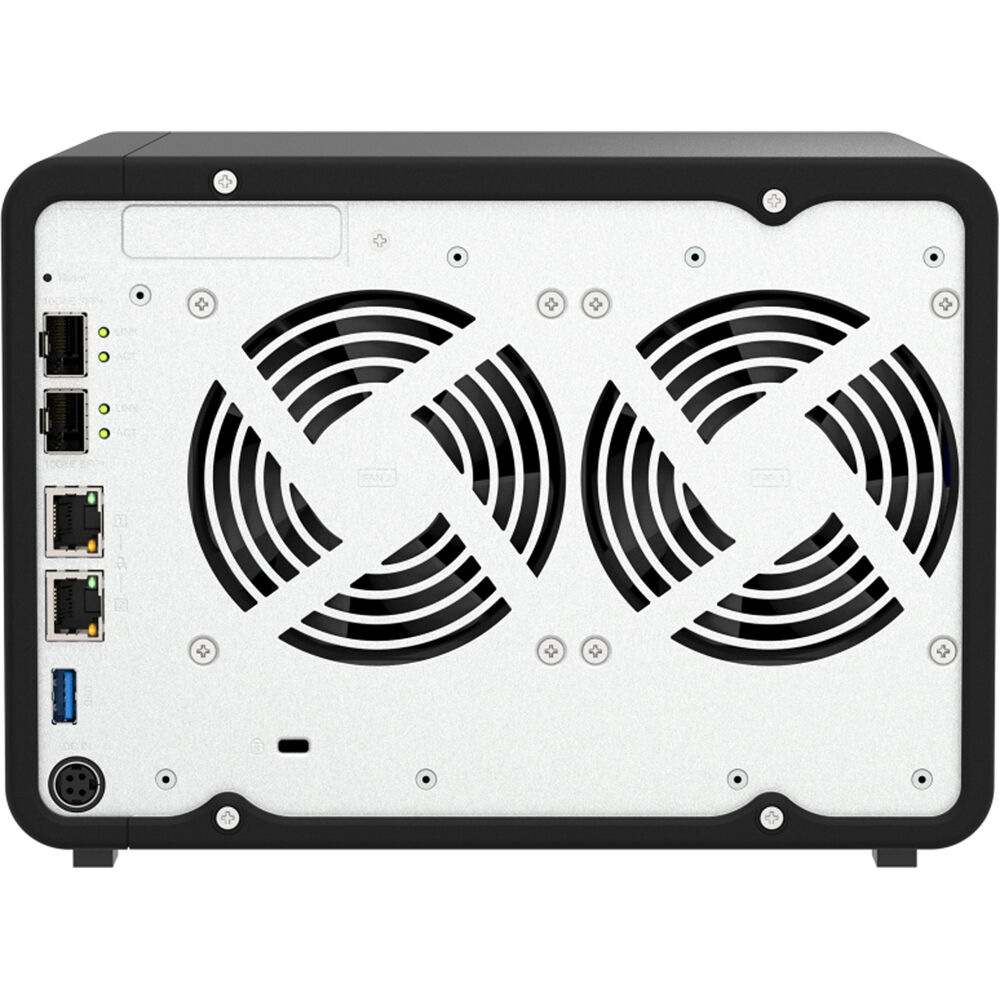

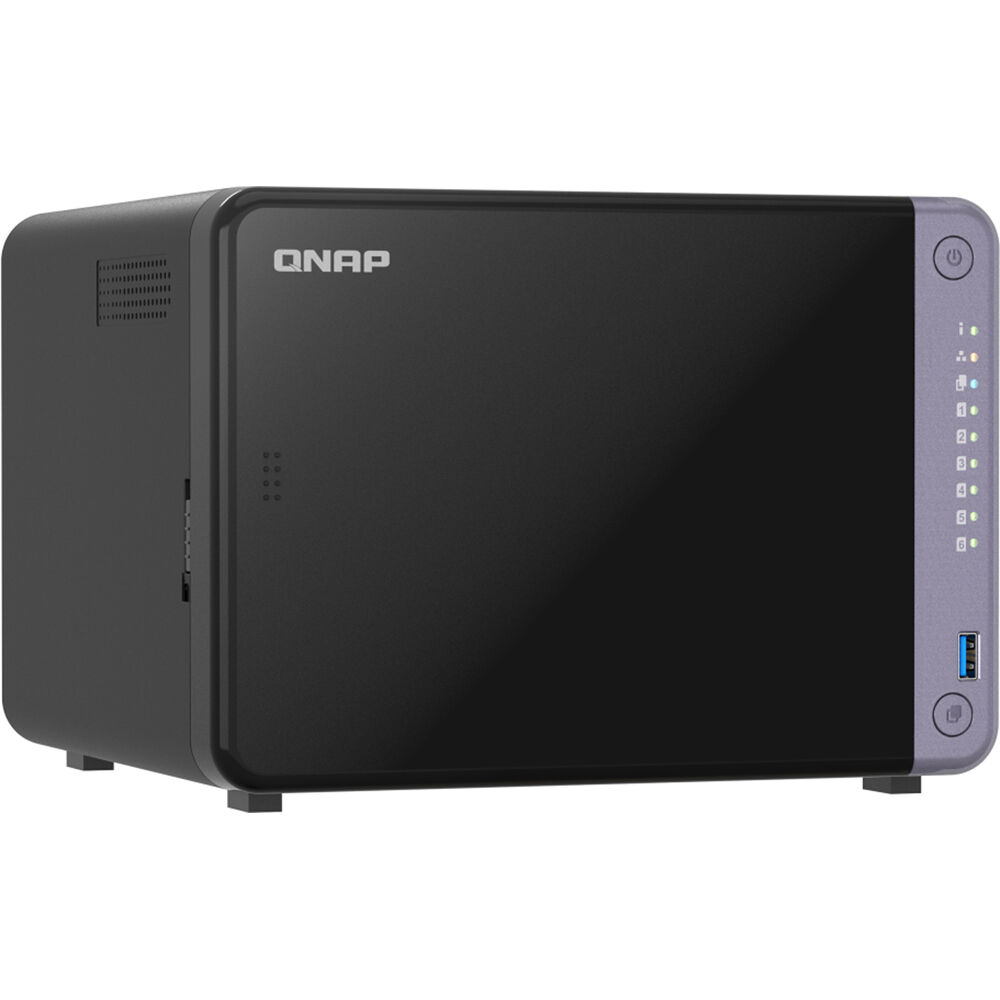

QNAP TS-632X-4G-US Overview
Unlock the potential of 6-bay storage capacity and harness the speed of 10GbE with the TS-632X 6-Bay NAS Enclosure from QNAP. This versatile storage solution offers secure backup, rapid transmission, support for container applications, and much more. Designed for hosting versatile NAS applications in the office, the TS-632X is driven by a 2.0 GHz Annapurna Labs Alpine AL524 4-Core processor, 4GB of DDR4 RAM, and six SATA III 6 Gb/s drive bays, all of which natively support 3.5" hard drives as well as 2.5" hard drives and SSDs.
Built with two 10GbE SFP+ ports and two 2.5GbE RJ45 ports for network connectivity with port trunking, this NAS can deliver sequential read speeds of up to 2251 MB/s and sequential write speeds of up to 1082 MB/s. Also featured are two USB-A 3.2 Gen 1 ports and one PCIe 3.0 x4 slot that can be used for a variety of expansion cards, and AES 256-bit encryption.
The TS-632X runs on the QTS operating system. Supported RAID modes include RAID 0, 1, 5, 6, 10, and 50, each of which provides redundancy, performance, or a combination of both. For those who do not require a RAID, JBOD and Single are also available, allowing each drive bay to be individually utilized. Operations are kept cool using dual 90mm fans and included is a 120W AC adapter an Ethernet cable, a power cord, 32 flat head screws for 3.5" HDDs, and 24 flat head screws for 2.5" HDDs. Protection is provided by a limited 2-year hardware warranty.
High Performance, Energy Efficient Quad-Core Processor
The TS-632X adopts a quad-core processor with built-in 4GB of memory, offering excellent read/write performance at low power consumption, making it reliable for hosting versatile NAS applications in office.
Processor
2.0 GHz Annapurna Labs Alpine AL524 Quad-Core processor
Memory
4GB of non-ECC RAM, upgradable to 16GB with support for ECC RAM
Encryption
Supports AES 256-bit encryption
Connections
2 x 5 Gb/s USB-A 3.2 Gen 1 ports
Processor
2.0 GHz Annapurna Labs Alpine AL524 Quad-Core processor
Memory
4GB of non-ECC RAM, upgradable to 16GB with support for ECC RAM
Encryption
Supports AES 256-bit encryption
Connections
2 x 5 Gb/s USB-A 3.2 Gen 1 ports
Read/Write Capabilities
SMB Sequential Throughout 1MB (2 x 2.5GbE)
590 MB/s read and write speeds
SMB Sequential Throughout 1MB (2 x 10GbE)
2251 MB/s read speeds, 1082 MB/s write speeds
590 MB/s read and write speeds
SMB Sequential Throughout 1MB (2 x 10GbE)
2251 MB/s read speeds, 1082 MB/s write speeds
Enhance Seamless Workflows with 10GbE Networks
Create a flexible, high-speed network environment to optimize team collaboration.
Quick Direct Access for Individual
Utilize the TS-632X's built-in 2.5GbE and 10GbE ports to achieve faster LAN speeds.
Efficient Collaboration with Multiple Users
Implement the TS-632X with expansion cards and QNAP 10GbE SFP+ switches to connect more devices.
Quick Direct Access for Individual
Utilize the TS-632X's built-in 2.5GbE and 10GbE ports to achieve faster LAN speeds.
Efficient Collaboration with Multiple Users
Implement the TS-632X with expansion cards and QNAP 10GbE SFP+ switches to connect more devices.
Multiply Bandwidth for Streamlined Tasks
By using the built-in network ports or installing an expansion card, you can maximize the network bandwidth of the TS-632X by aggregating two or more same-speed network ports. Choose from the following options according to your needs:
SMB Multichannel
Suited for small/home office users. Fulfill multiplied available bandwidth between NAS and directly-connected clients to accelerate file transfer speed.
Port Trunking
Recommended for midsized to large businesses where IT infrastructure involves network switches and multiple end-users.
SMB Multichannel
Suited for small/home office users. Fulfill multiplied available bandwidth between NAS and directly-connected clients to accelerate file transfer speed.
Port Trunking
Recommended for midsized to large businesses where IT infrastructure involves network switches and multiple end-users.
Abundant I/O Capabilities with PCIe Expansion
The TS-632X features a PCIe Gen 3 x4 slot, supporting a variety of expansion cards to maximize application versatility.
QM2 Card - QM2-2P2G2T
Add two 2.5GbE ports and two M.2 SSD slots at the same time.
QM2 Card - QM2-2P-344A
Add two M.2 SSDs to create a storage pool or enable SSD caching.
Network Expansion Card - QXG-10G2T
Add two 10GbE ports that support five speeds.
QM2 Card - QM2-2P2G2T
Add two 2.5GbE ports and two M.2 SSD slots at the same time.
QM2 Card - QM2-2P-344A
Add two M.2 SSDs to create a storage pool or enable SSD caching.
Network Expansion Card - QXG-10G2T
Add two 10GbE ports that support five speeds.
Smart Storage
QNAP's apps provide easy-to-use file storage and collaboration tools. Snapshots also help protect important data from ransomware.
Snapshots Protection
Volume and LUN Snapshots
"Snapshots" record the complete status of your NAS system and data. Certain data and files can be reverted when needed.
Versioning
Regularly create snapshots. The more snapshots you have, the lower the risk of data loss.
Smart Snapshots Space Management
QNAP supports smart snapshot space management to ensure there is enough storage space for new snapshots.
"Snapshots" record the complete status of your NAS system and data. Certain data and files can be reverted when needed.
Versioning
Regularly create snapshots. The more snapshots you have, the lower the risk of data loss.
Smart Snapshots Space Management
QNAP supports smart snapshot space management to ensure there is enough storage space for new snapshots.
Boost Production Efficiency
Qsync
Sync files between NAS and multiple computers or mobile devices.
Qsirch
Quickly find documents, media files, and emails using key words, colors, or faces.
Qfiling
Create filing rules and set schedules to automatically archive files into dedicated folders based on their category.
QuMagie
TS-632X leverages powerful AI photo management and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.
Sync files between NAS and multiple computers or mobile devices.
Qsirch
Quickly find documents, media files, and emails using key words, colors, or faces.
Qfiling
Create filing rules and set schedules to automatically archive files into dedicated folders based on their category.
QuMagie
TS-632X leverages powerful AI photo management and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.
Simple Backup
Enhanced hardware performance with an all-in-one Backup Solution to speed up backup/recovery tasks.
Back Up All Your Devices
PC and Mac Backup
Sync your computer files to NAS with Qsync. The TS-632X also supports Time Machine for Mac computers.
File server Backup
Supports multiple protocols such as Rsync, FTP, and CIFS for backing up different file servers.
SaaS Business Backup Solution
Use Boxafe to easily back up Google Workspace and Microsoft 365 business account data.
Google Photos and WordPress Backup
The exclusive MARS service enables backing up Google Photos and WordPress databases and files to NAS.
Sync your computer files to NAS with Qsync. The TS-632X also supports Time Machine for Mac computers.
File server Backup
Supports multiple protocols such as Rsync, FTP, and CIFS for backing up different file servers.
SaaS Business Backup Solution
Use Boxafe to easily back up Google Workspace and Microsoft 365 business account data.
Google Photos and WordPress Backup
The exclusive MARS service enables backing up Google Photos and WordPress databases and files to NAS.
Remote Replication for NAS Data
Back Up Data from One NAS to Another NAS
Back up data on a local NAS to another remote NAS using Hybrid Backup Sync. You can also deduplicate your backup using QuDedup to save time and storage space.
Back Up Data to the Cloud
Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.
Cloud Storage Gateway
VJBOD Cloud connects cloud object storage (Bucket) and back up data from NAS to the cloud.
Back Up NAS Snapshots
Use Snapshot Replica to back up NAS snapshots to another NAS and recover when needed.
Back up data on a local NAS to another remote NAS using Hybrid Backup Sync. You can also deduplicate your backup using QuDedup to save time and storage space.
Back Up Data to the Cloud
Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.
Cloud Storage Gateway
VJBOD Cloud connects cloud object storage (Bucket) and back up data from NAS to the cloud.
Back Up NAS Snapshots
Use Snapshot Replica to back up NAS snapshots to another NAS and recover when needed.
Video Surveillance
Turn the TS-632X into a professional, all-in-one Surveillance NAS, which is compatible with over 8000 IP cameras and ONVIF-compatible cameras.
Easy to Set Up
Easily set up an integrated surveillance system by purchasing a subscription or perpetual licenses based on your needs.
Real Time Monitoring from Everywhere
Monitor live feeds and receive alert event notifications from client applications on PCs or mobile devices.
Surveillance Failover
Implement a QVR Guard failover server to automatically takeover recording tasks if the host server fails.
Easy to Set Up
Easily set up an integrated surveillance system by purchasing a subscription or perpetual licenses based on your needs.
Real Time Monitoring from Everywhere
Monitor live feeds and receive alert event notifications from client applications on PCs or mobile devices.
Surveillance Failover
Implement a QVR Guard failover server to automatically takeover recording tasks if the host server fails.
Host Container Applications
If you are curious about Docker or are a hobbyist developer, Container Station on the TS-632X integrates Docker lightweight virtualization technology, allowing you to run all kinds of self-contained applications. You can download apps from the built-in Docker Hub, including popular and fully-configured applications, and deploy them with just one click. From smart homes to multimedia applications, you can explore your creativity and bring containerized applications to life.
Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-632X.
Besides Container Station, more apps (including tools for backup/sync, content management, communications, download, and entertainment) are available from the App Center. Simply click and install on-demand to further extend the functionality of your TS-632X.
Enhanced Cybersecurity and Data Protection
The TS-632X is loaded with comprehensive privilege settings and protection measures to block malicious attackers and ensure that data in the NAS are secure.
Account Security
Administrators can manage the access permissions of multiple NAS through shared folder permission settings. Multi-factor authentication (MFA) is supported to prevent password cracking and unauthorized access.
Secure Remote Access
Access your NAS from anywhere using myQNAPcloud Link, providing secure connections via the Internet. You can also enhance security by setting up a VPN connection to your NAS using QVPN.
NAS Firewall
QuFirewall restricts and blocks suspicious packets sent by proxy servers and the onion routing (Tor) based on user rules. It also dynamically updates its block list based on detected malicious packets.
Malware Protection
Malware Remover regularly scans your NAS using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
Account Security
Administrators can manage the access permissions of multiple NAS through shared folder permission settings. Multi-factor authentication (MFA) is supported to prevent password cracking and unauthorized access.
Secure Remote Access
Access your NAS from anywhere using myQNAPcloud Link, providing secure connections via the Internet. You can also enhance security by setting up a VPN connection to your NAS using QVPN.
NAS Firewall
QuFirewall restricts and blocks suspicious packets sent by proxy servers and the onion routing (Tor) based on user rules. It also dynamically updates its block list based on detected malicious packets.
Malware Protection
Malware Remover regularly scans your NAS using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.
Drive Health Check & Failure Prediction
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.
Comprehensive Overview
Quickly check life prediction scores and drive health status.
Visual Insights
Identify drive information in each drive bay/slot and view recommendations.
Advanced Diagnostics and Alerts
Acquire proactive detection and receive replacement warnings based on 24-hour disk usage data collection.
Comprehensive Overview
Quickly check life prediction scores and drive health status.
Visual Insights
Identify drive information in each drive bay/slot and view recommendations.
Advanced Diagnostics and Alerts
Acquire proactive detection and receive replacement warnings based on 24-hour disk usage data collection.
Extended Hardware Warranty up to 5 Years
The TS-632X is backed by a limited 2-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
UPC: 885022027545
Items Included
- QNAP TS-632X 6-Bay NAS Enclosure
- Ethernet Cable
- 120W AC Adapter
- Power Cord
- 32 x Flat Head Screws for 3.5" HDDs
- 24 x Flat Head Screws for 2.5" HDDs
- Limited 2-Year Manufacturer Warranty
Additional Resources
QNAP TS-632X-4G-US Specs
Key Specs
| RAID |
Yes, Supported RAID Modes: 6 / 10 / 50 / 5 / JBOD / 0 / 1
|
| Number of Bays |
6x 3.5" SATA III
|
| Inputs/Outputs |
2x RJ45 2.5GbE
2x SFP+ 10GbE 2x USB-A 3.0 / 3.1/3.2 Gen 1 |
Computing
| CPU |
Quad-Core: Up to 2 GHz
|
| Processor |
Annapurna Labs Alpine AL524
|
| Memory |
4 GB DDR4
|
| RAM Configuration / Capacity |
1x User-Replaceable 4 GB / 1 Slot Supporting up to 16 GB
|
Drives
| RAID |
Yes, Supported RAID Modes: 6 / 10 / 50 / 5 / JBOD / 0 / 1
|
General
| Number of Bays |
6x 3.5" SATA III
|
| Inputs/Outputs |
2x RJ45 2.5GbE
2x SFP+ 10GbE 2x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Media Card Slots |
No
|
| PCI Expansion |
1x PCIe 3.0 x4
|
Networking
| Link Aggregation and Failover Support |
No
|
| iSCSI Support |
Yes, 128 LUN
|
Software
| Installed Operating System |
QTS 5.1.7
|
| OS Compatibility |
Windows
macOS Linux |
| Mobile App Compatible |
Yes: Android & iOS
|
Security
| Encryption |
256-Bit AES, FIPS 140-2 Level 2, SED
|
| Security Features |
No
|
Electrical
| Input Power |
100 to 240 VAC, 60 / 50 Hz
|
| PSU Wattage |
1 x 120 W
|
Physical
| Cooling |
2x 90 mm Fans
|
| Dimensions |
9.25 x 8.92 x 6.5" / 23.5 x 22.66 x 16.5 cm
|
| Weight |
5.5 lb / 2.5 kg
|
Packaging Info
| Package Weight |
9.24 lb
|
| Box Dimensions (LxWxH) |
11.9 x 11.8 x 8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
