QOMO QPC80 H3 Portable Document Camera

Share your microscope slides, prototypes, or notes in classroom and meeting space applications using this QPC80 H3 Portable Document Camera from QOMO in resolutions up to UHD 4K. Featuring HDMI and VGA video ports, the QPC80 H3 can connect to your preexisting conference room or lecture hall AV gear. Other connections include a USB-B port for your personal computer or two USB-A ports for keyboards and computer mice. Internal Wi-Fi and built-in SD card slot provide other options for sharing images and video. The built-in microphone helps facilitate audio sharing during remote meetings.

The QPC80 H3's lens features 10x optical and digital zoom as well as an 8.3 MP CMOS image sensor. It is capable of capturing UHD 4K, full HD, and 720p video. Included with the camera is a microscope adapter that can attach the unit directly to a compatible microscope which makes sharing slides intuitive and easy.

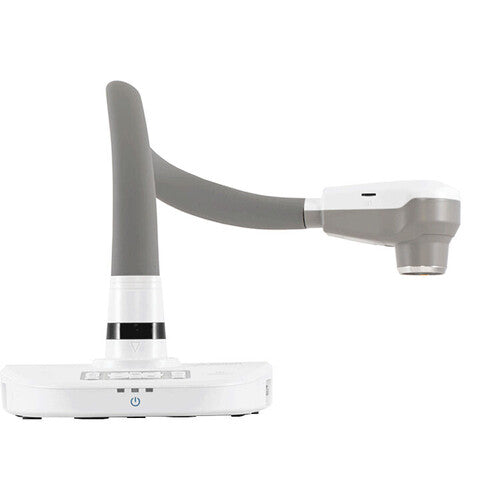

Adjust the camera's flexible gooseneck to capture objects of interest at any angle. A built-in switcher with button controls can change between devices during classroom presentations or livestreams. You can even share, mark-up, and collaborate on documents in real time.

QOMO QPC80 H3 Specs

Sensor	CMOS
Sensor Resolution	Effective: 8.3 Megapixel
Zoom	10x (Optical) 10x (Digital)
Capture Area	11.7 x 8.3" / 29.7 x 21 cm 11.7 x 16.5" / 29.7 x 42 cm
Video I/O	1x HDMI Output 1x HDMI Input 1x DVI-D VGA Output 1x DVI-D Input
Media Card Slots	SD

Sensor	CMOS
Sensor Resolution	Effective: 8.3 Megapixel
Zoom	10x (Optical) 10x (Digital)
Frame Rate	30 fps 60 fps
Output Resolution	3840 x 2160 1920 x 1080 1280 x 720

Capture Area	11.7 x 8.3" / 29.7 x 21 cm 11.7 x 16.5" / 29.7 x 42 cm
Video I/O	1x HDMI Output 1x HDMI Input 1x DVI-D VGA Output 1x DVI-D Input
Audio I/O	1x 1/8" / 3.5 mm Output 1x 1/8" / 3.5 mm Input
Other I/O	1x USB-B RS232 2x USB-A
Media Card Slots	SD
Wireless	Wi-Fi Integrated
Annotation	Yes

Image Rotation

0°, 90°, 180°, 270°

Built-In LED Lighting	No
Built-In Mic	Yes
Focus Modes	No
Multi-Input Support (PIP/PBP)	No
Remote Control	Yes

Kensington Lock Slot	Yes
Dimensions	13.0 x 7.9 x 6.3" / 330.2 x 200.0 x 158.8 mm (Folded)
Weight	3.7 lb / 1.7 kg

Package Weight	7.465 lb
Box Dimensions (LxWxH)	15.1 x 11.6 x 10.1"
