Description

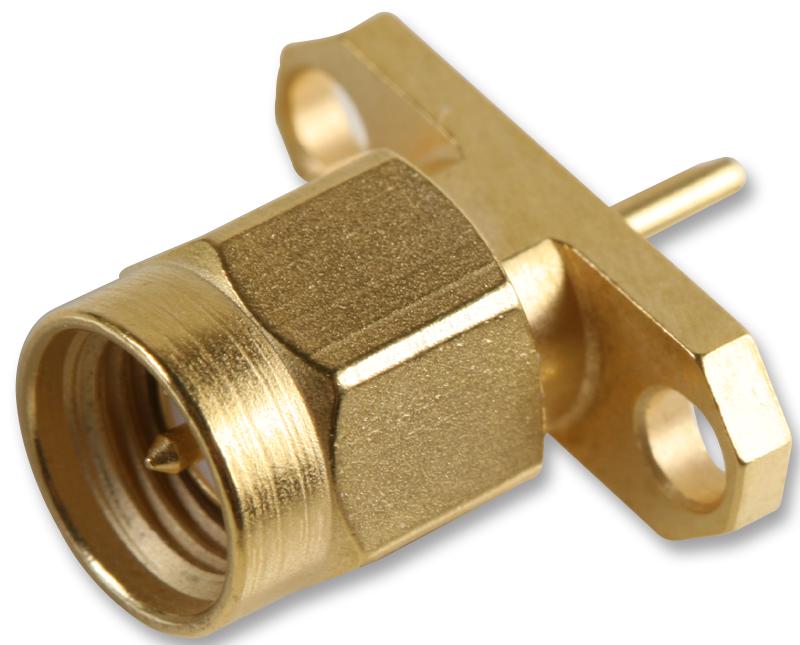

The R125483000 is a 2-hole flange SMA Straight Plug Receptacle made of gold over nickel plated stainless steel body with gold over nickel plated brass solder pot centre contact and a PTFE insulator.
- 5000MR Minimum insulation resistance
- 1000Veff Minimum dielectric withstanding voltage
- 500Veff Maximum voltage rating
- 500-cycle Minimum mating life
- -65 to 165°C Operating temperature range
Applications
RF Communications, Industrial
Product details
| Connector Type: SMA Coaxial |
| Connector Body Style: Straight Flanged Plug |
| Coaxial Termination: Solder |
| Impedance: 50ohm |
| Coaxial Cable Types: - |
| Contact Material: Brass |
| Contact Plating: Gold Plated Contacts |
| Frequency Max: 18GHz |
| Connector Mounting: Panel Mount |
| Product Range: - |
Other details
| Brand | RADIALL |
| Part Number | R125483000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
