Description

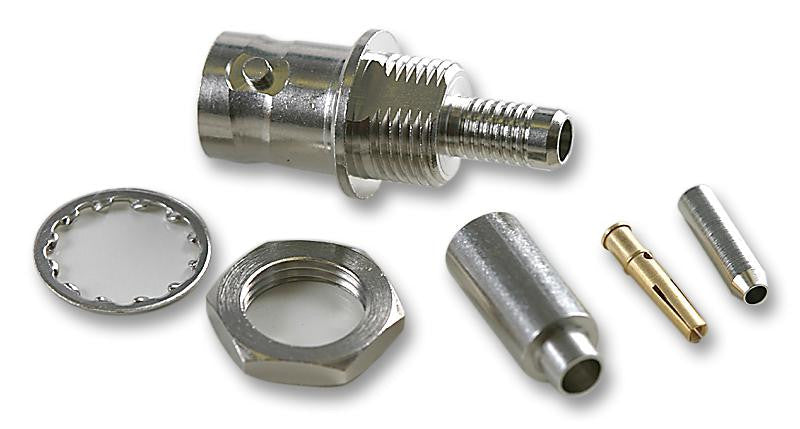

The R141306000 is a straight Bulkhead BNC Jack with nickel-plated brass outer contact, gold-plated beryllium copper center contact, nickel-plated brass body, for 2.6/50 S cable. This BNC series plug has PTFE insulation, cable mounting and crimp termination. The BNC connector is the most popular coaxial connector series in the world, featuring a two-pin bayonet coupling system for quick and reliable engagement and disengagement.
- Worldwide standardised coaxial connector
- Bayonet coupling
- Proven strength and reliability
- Good RF performance
- Meets MIL-C-39012/MIL STD 348-A/301, IEC 169-8, CECC 22120 and UTE-C-93564 standards
- -65 to 165�C Temperature rating
Applications
Aerospace, Defence, Military, RF Communications, Test & Measurement, Communications & Networking, Industrial, Consumer Electronics
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | BNC Coaxial |
| Coaxial Termination | Crimp |
| Connector Mounting | Panel Mount |
| Connector Body Style | Straight Bulkhead Jack |
| Coaxial Cable Types | RG174 |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 4GHz |
Other details
| Brand | RADIALL |
| Part Number | R141306000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
