Description

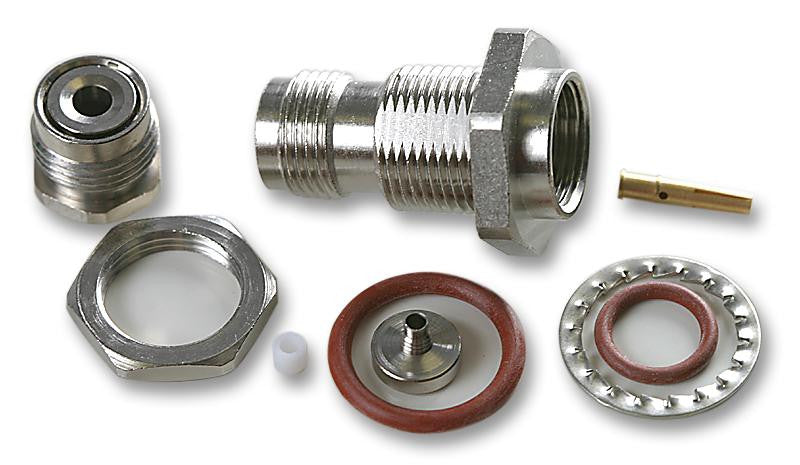

The R143324000 is a straight Bulkhead TNC Jack, panel sealed, rear mount clamp type, with gold over nickel plated beryllium copper center contact, nickel plated brass body for 2.6/50 cable. This TNC series jack has PTFE insulation, panel mounting and solder termination, suitable for high power levels.
- Screw-on equivalent to BNC bayonet series
- Good RF performance
- Long life and high strength
- Meets MIL-C-39012/MIL STD 348A/313, IEC 60169-17 and CECC 22200 standards
- -65 to 165�C Temperature rating
Applications
Avionics, Aerospace, Defence, Military, Communications & Networking
Product details
| Contact Material | Beryllium Copper |
| Contact Plating | Gold Plated Contacts |
| Connector Type | TNC Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | Panel Mount |
| Connector Body Style | Straight Bulkhead Jack |
| Coaxial Cable Types | RG179, RG187, RG188, RG316 |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 11GHz |
Other details
| Brand | RADIALL |
| Part Number | R143324000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Operating Instructions EN | |
