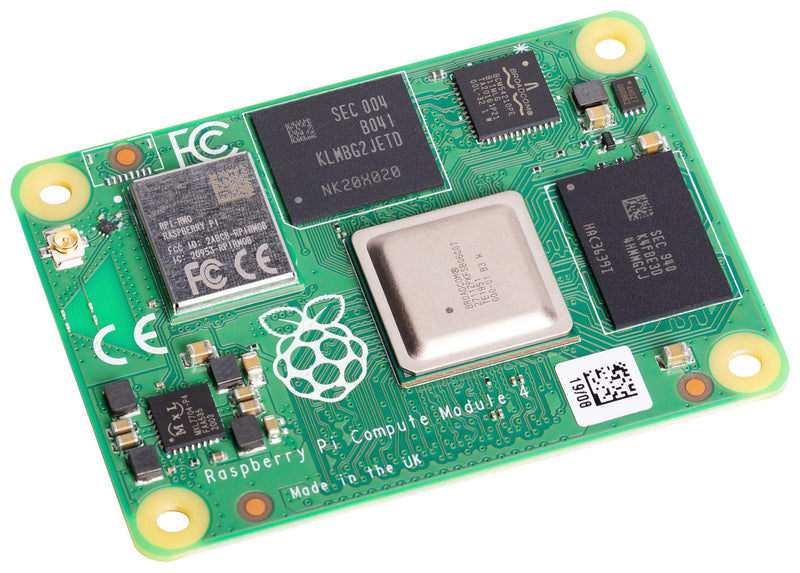

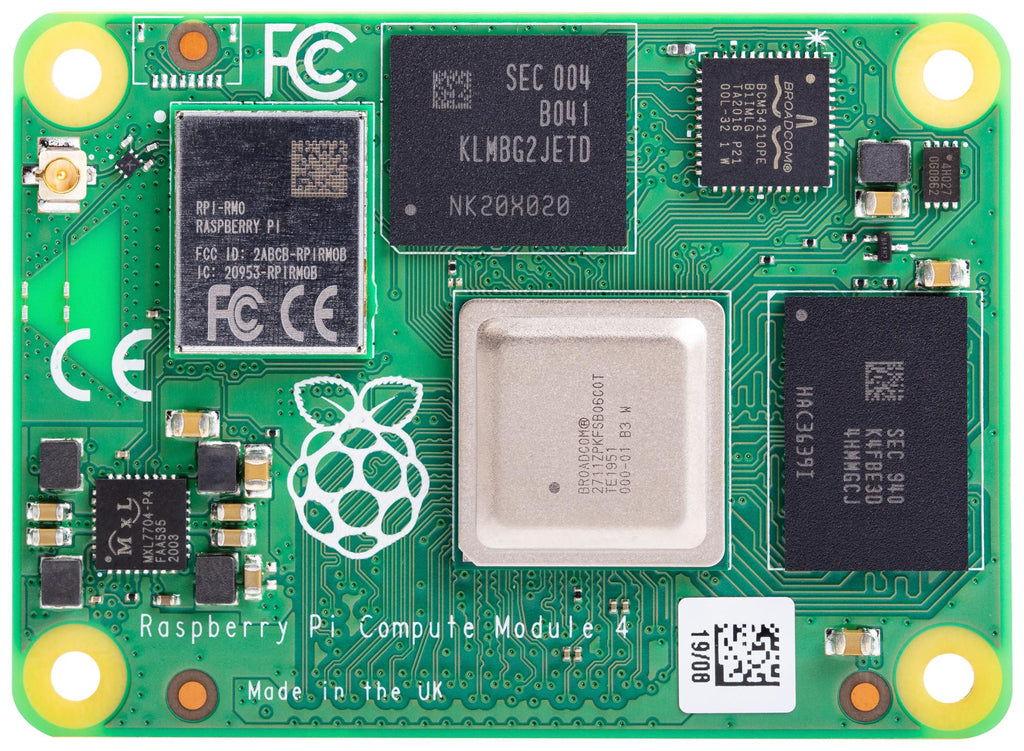

COMPUTE MODULE 4 is built on the 64-bit quad-core BCM2711 application processor. The Compute Module 4 delivers a step change in performance over its predecessors such as faster CPU cores, better multimedia, more interfacing capabilities.
- Features 8GB RAM, 8GB eMMC storage
- VideoCore VI graphics, supporting OpenGL ES 3.x
- 4Kp60 hardware decode of H.265 (HEVC) video
- 1080p60 hardware decode and 1080p30 hardware encode of H.264 (AVC) video
- Dual HDMI interfaces, at resolutions up to 4K
- Single-lane PCI Express 2.0 interface
- Dual MIPI DSI display, and dual MIPI CSI-2 camera interfaces
- Gigabit Ethernet PHY with IEEE 1588 support
- 28 GPIO pins, with up to 6 x UART, 6 x I2C and 5 x SPI
- 55mm�x�40mm board size
Product details
| Silicon Manufacturer:
Broadcom
|
| SOC Type:
Broadcom BCM2711
|
| Silicon Family Name:
BCM2xxx
|
| Core Type:
64-bit ARM Cortex-A72 v8
|
| Core Architecture:
ARM
|
| No. of Cores:
4 Cores
|
| Core Sub-Architecture:
Cortex-A72
|
| RAM Memory:
8GB LPDDR4
|
| GPU:
VideoCore VI
|
| Silicon Core Number:
BCM2711
|
| Kit Contents:
Compute Module 4 w/ 8GB RAM, 8GB eMMC
|
| CPU Speed:
1.5GHz
|
| eMMC:
8GB
|
| Compute Module Interface:
I2C, SPI, PCIe Gen 2 x 1
|
| Wi-Fi Connectivity:
2.4GHz and 5GHz 802.11 b/g/n/ac
|
| Bluetooth Connectivity:
Bluetooth 5.0 BLE
|
| Product Range:
Compute Module 4 Series
|
Other details
| Brand |
RASPBERRY-PI |
| Part Number |
CM4008008 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
