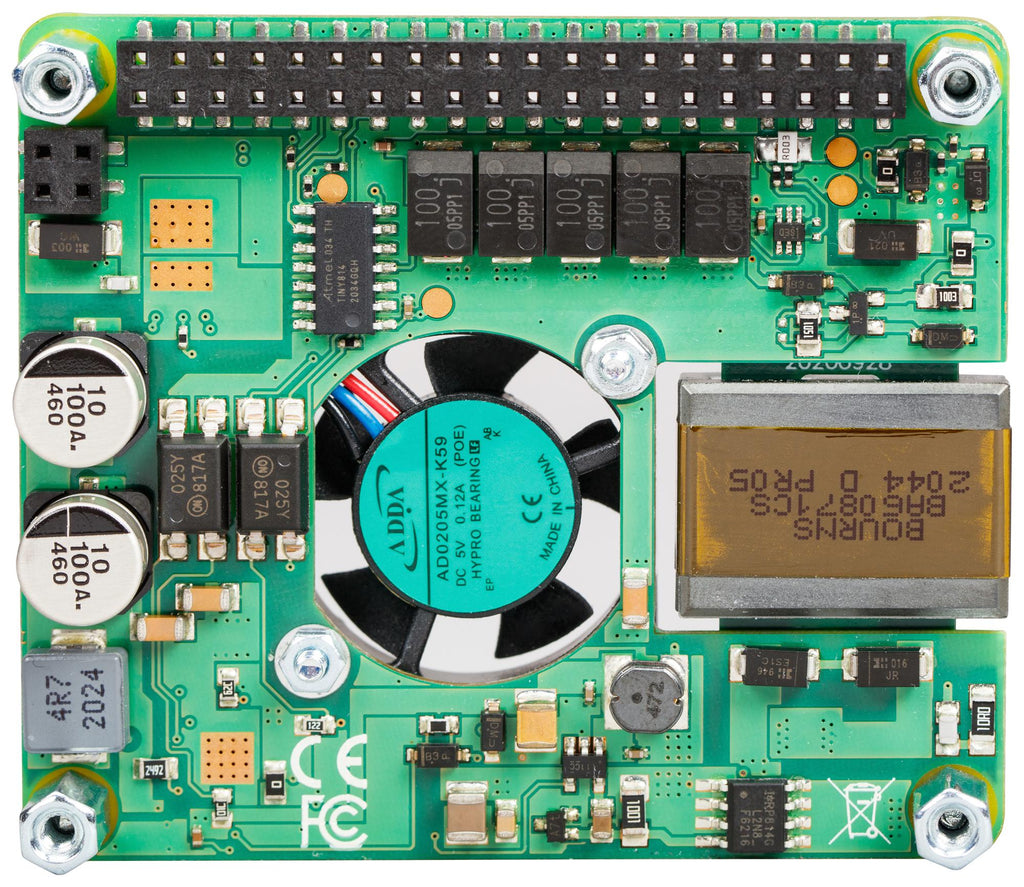

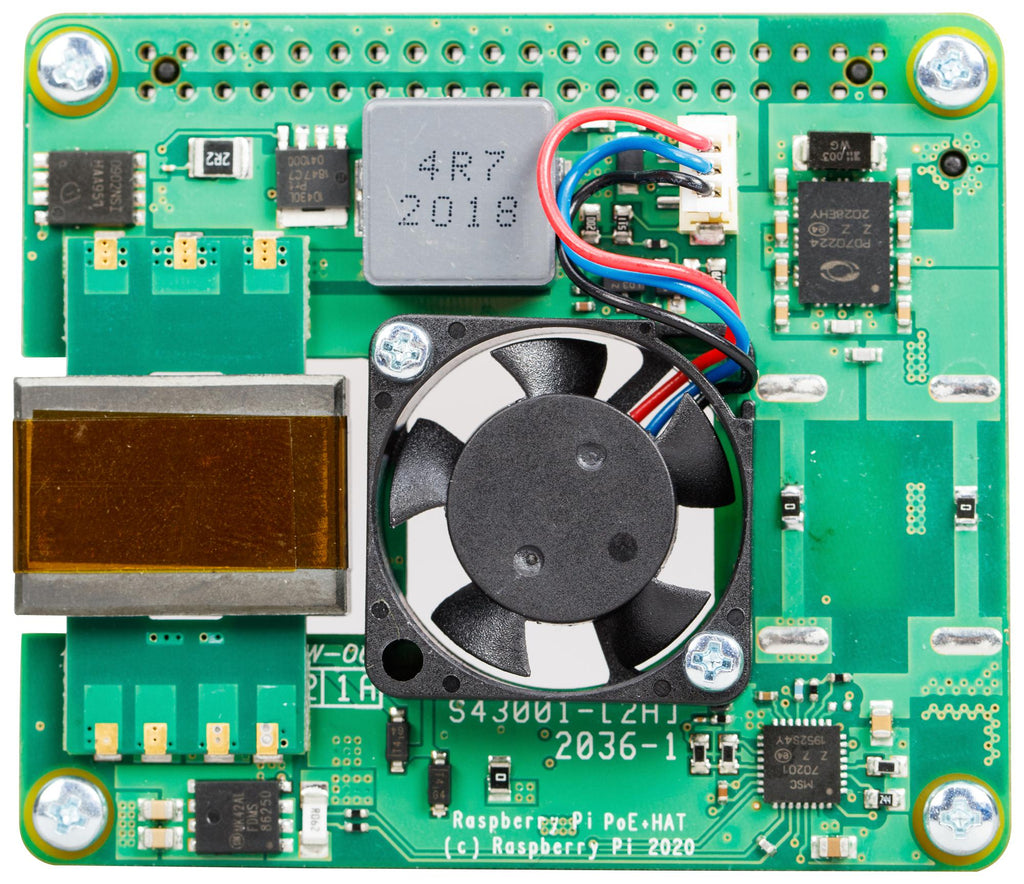

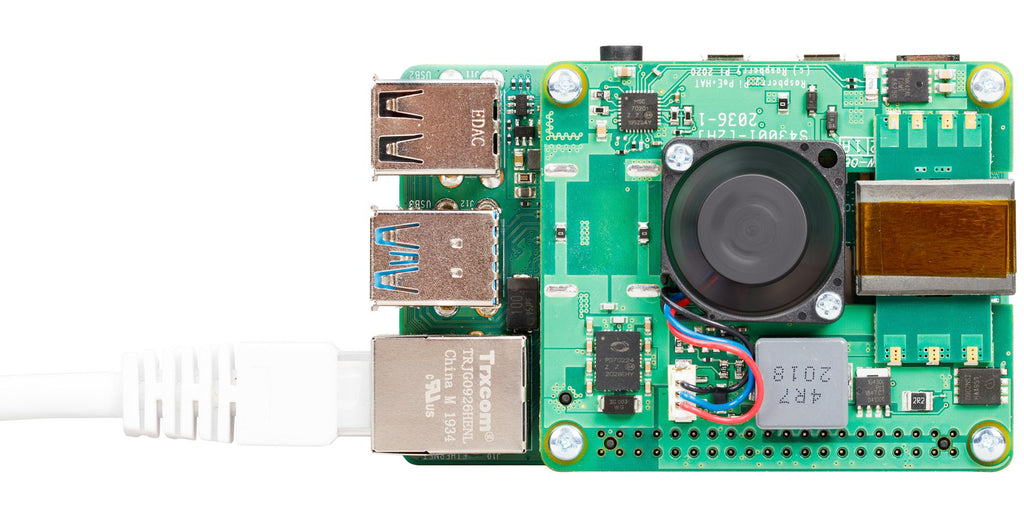

The official Power over Ethernet (PoE+) add-on board for the Raspberry Pi 3 Model B+, and Raspberry Pi 4 Model B and Compute Module 4 IO board. Use this HAT to power a Raspberry Pi via an Ethernet cable, removing the need for a separate power supply, an ideal solution for embedded and IoT projects. For Raspberry Pi 3 Model B+ and onwards, an 802.3af compliant POE injector, switch or router device is required (not included).
- Power over Ethernet 802.3af compliant
- Class 2 device
- Fully isolate switched-mode power supply (SMPS)
- 36-56V input voltage
- 5V output voltage
- Supplies up to 4A
- Fan control
- Plug-and-play compatibility with Raspberry Pi 3 Model B+, 4 Model B, and Compute Module 4 IO board
Applications
Embedded Design & Development, Hobby & Education, Communications & Networking, IoT (Internet of Things)
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
Raspberry Pi 3 Model B+, Raspberry Pi 4 Model B |
| Kit Contents |
Add-on Board Raspberry Pi PoE HAT |
| Product Range |
- |
Other details
| Brand |
RASPBERRY-PI |
| Part Number |
RPI-HAT-POE+ |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
