Description

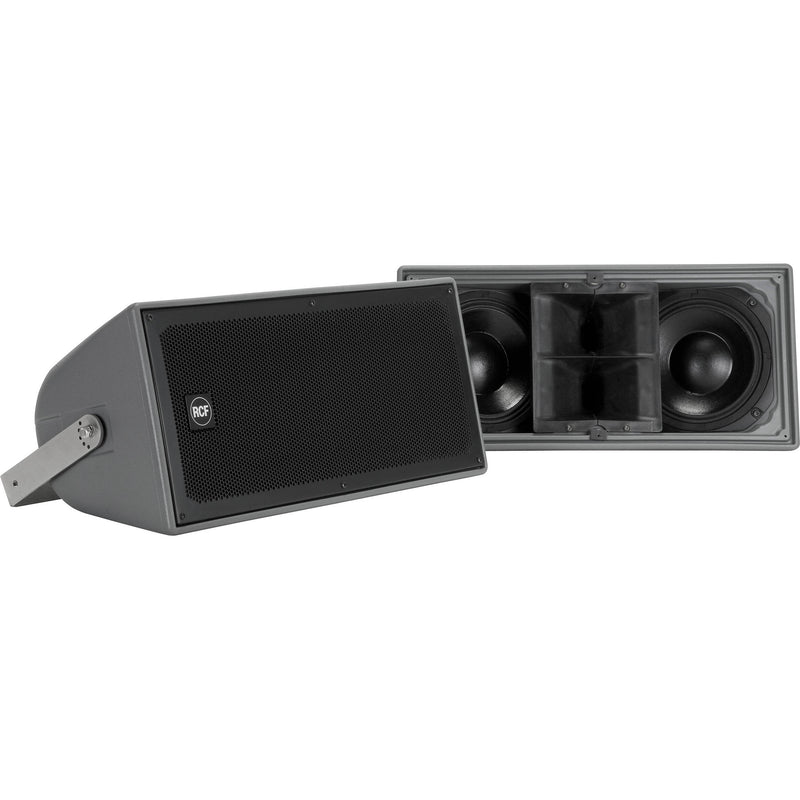

RCF's Dual 8" 500W Weatherproof 2-Way Speaker System is an IP55 (International Protection Rating) weatherproof full range, two-way line array speaker module, offering substantial power and efficiency for a variety of professional indoor or outdoor applications.
The high frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, wide horizontal dispersion and highly controlled 20� vertical coverage. The low frequency transducers are two 8" woofers with a 2.5" voice coil.
The cabinet is a single-piece rotational molded enclosure, made in medium density polyethylene, is fully UV protected, and equipped with 4 x M8 brass inserts and a stainless steel U-Bracket.
Connections to the amplifier are made through a watertight multi-pole connector. The grille is custom perforated aluminum with open-cell fibers and water repellent woven fabric backing.
- 500W RMS
- Weatherproof cabinet IP55
- Aluminum grill and stainless steel bracket
- Dual 8" high-output LF transducer with 2.5" voice coil
- One RCF precision neodymium 1" compression driver with 1.75" diaphragm assembly
- 20 x 90� constant directivity horn
- 2 x 15� enclosure sides for array configurations
- Active Mosfet Compression Driver Protection
- LICC (Low Impedance Compensated Crossover) network
- Input connector 4 pole Amphenol IP67
- 4 x M8 Brass Inserts
- Steel U-Bracket
- Limited 3-Year Warranty
| Acoustical | |
|---|---|
| Frequency Response | 80 Hz - 20 kHz |
| Maximum SPL | @ 1 m: 131dB |
| Coverage Angle | Horizontal: 90� Vertical: 20� |
| Directivity | Index, Q: 11 |
| Sensitivity | 98 dB |
| Impedance | 8 ? |
| Power Handling | 500W |
| Peak Power Output | 2000W |
| Recommended Amplifier Power | 1000W |
| Protection | Dynamic |
| Crossover Frequencies | 1300Hz |
| Transducers | |
|---|---|
| Driver | Dual 1" (25.4 mm) throat, 1.75" (44.45 mm) coil diaphragm assembly |
| Woofer | Dual 8" (200 mm) woofer, 2.5" (63.5 mm) voice coil |
| Impedance | Compression Driver: 16 ? Woofer: 16 ? |
| Input Power | Compression Driver: 50W AES Woofer: 300W AES |
| Sensitivity | Compression Driver: 109 dB Woofer: 95 dB |
| Input | |
|---|---|
| Input Connector | 4-Pole Amphenol |
| Cabinet / Accessories | |
|---|---|
| Material | 0.31" (8 mm) Polyethylene roto-molded |
| Grille | Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing |
| Dimensions | 10.55 x 22.28 x 16.23" (268.00 x 566.00 x 412.24 mm) |
| Weight | 30.8 lbs (14.0 kg) |
