Description
RCF F10-XR Overview
- 1 Description
- 2 High-Quality Preamps
- 3 EQ on Mono & Stereo Channels
- 4 Single-Knob Compressors
- 5 24-Bit FX
- 6 USB Recording and Playback

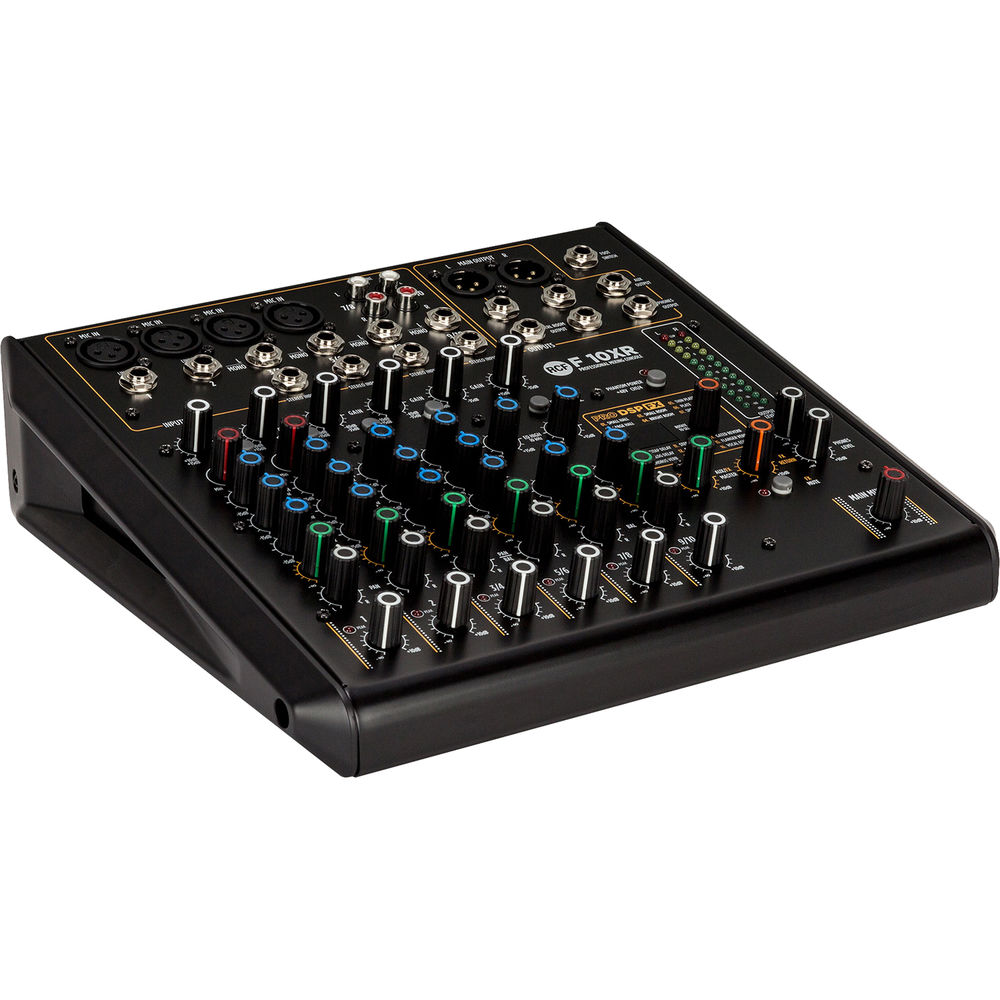

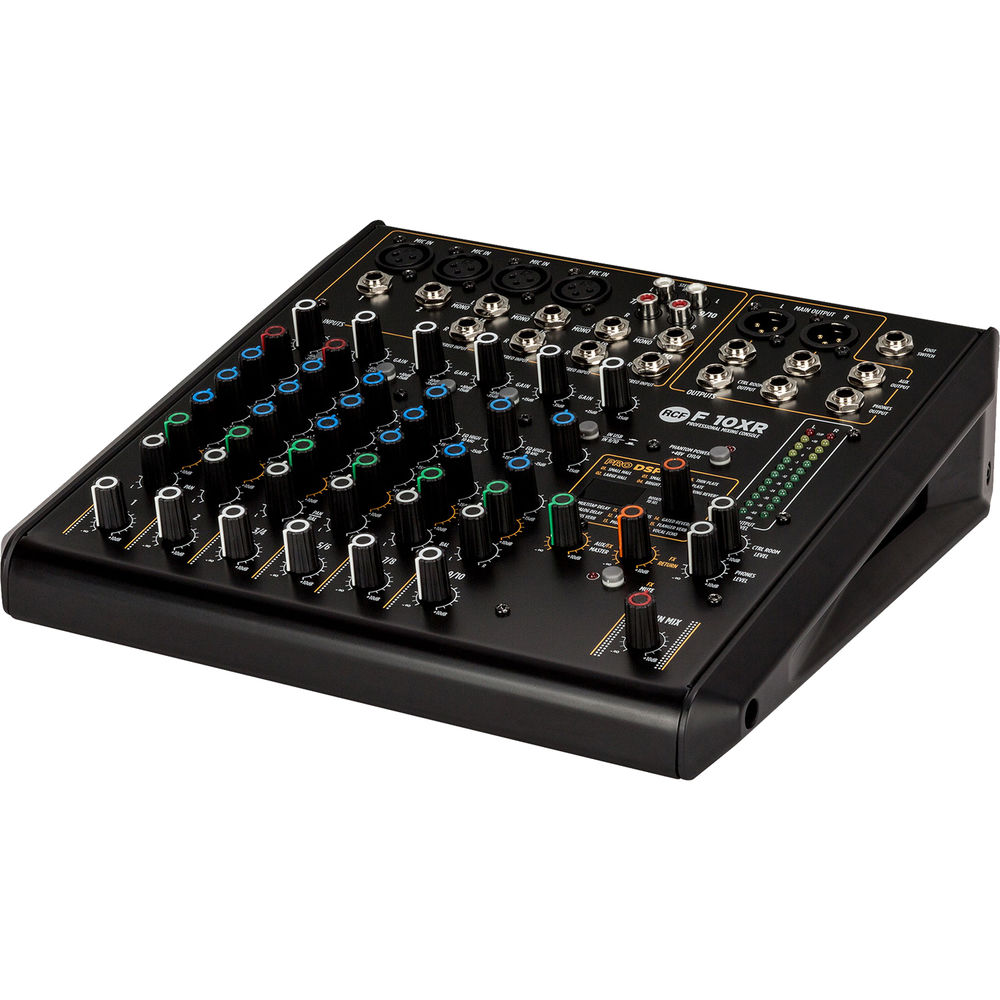

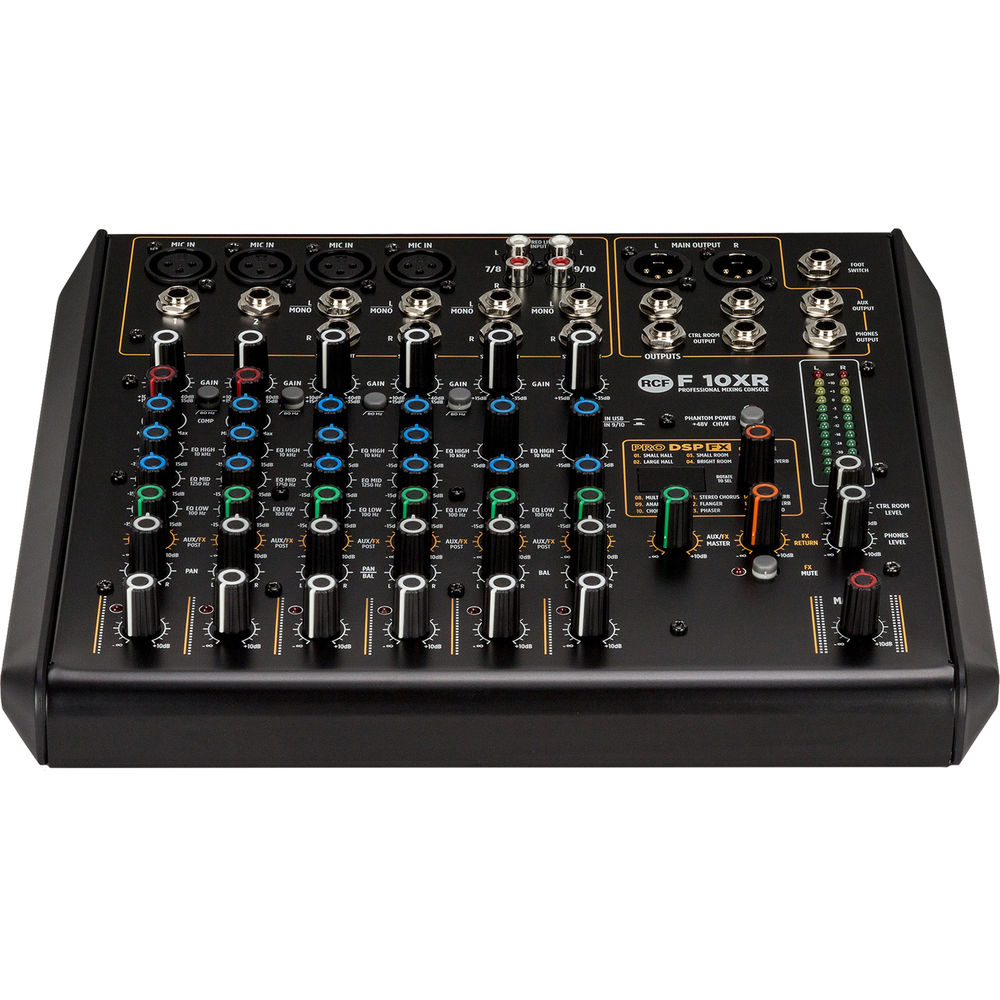

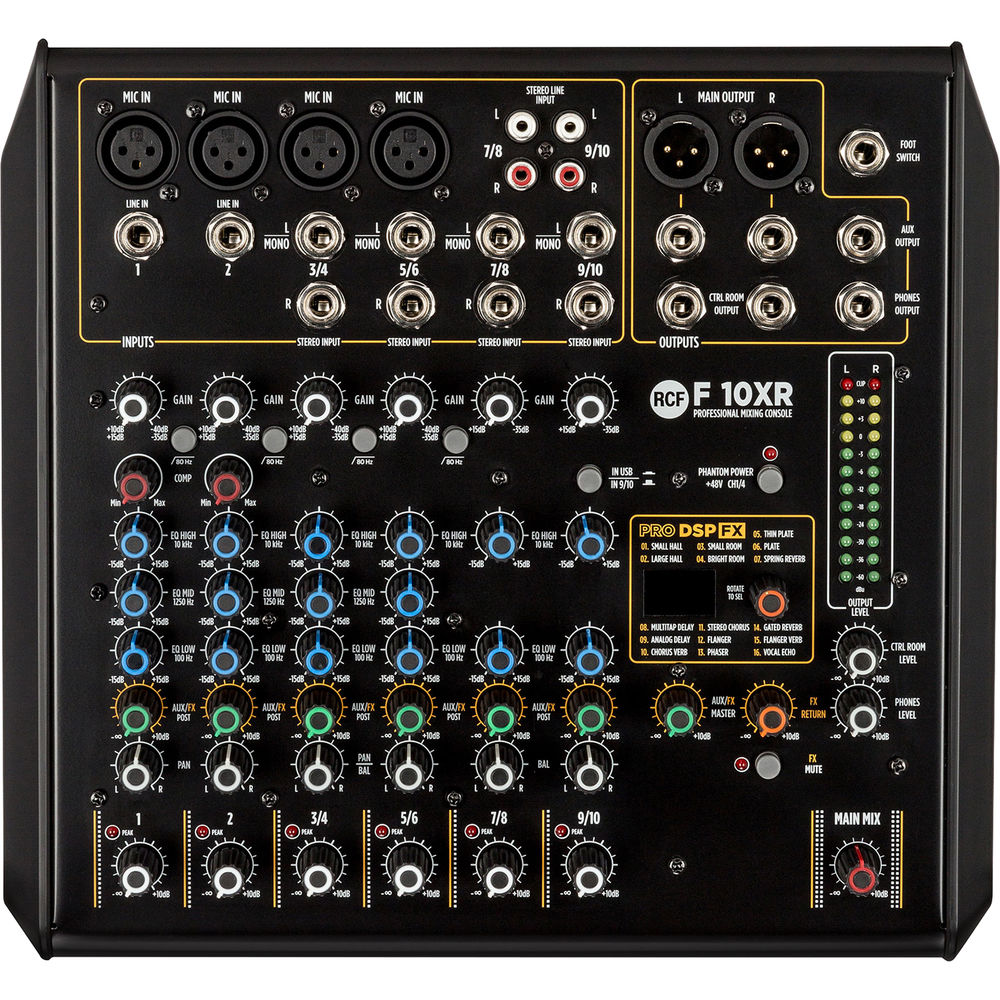

The RCF F-10XR is a mixer designed for live sound applications. It has four mic preamps, two mono line inputs, and four stereo line inputs. Line connections can be made over 1/4" connections or RCA terminations. You'll find 3-band EQs on the mono channels, and 2-band EQs on the stereo line inputs. Single-knob compressors are available on channels 1 and 2, and phantom power is available for the microphone inputs (channels 1 through 4).
24-bit effects are on hand to give you reverbs, echoes, delays, flangers, and more. Route to main outputs, monitors, or headphones, thanks to the comprehensive output section. Thanks to the USB output, you can record stereo audio on Mac, Windows, or iOS devices (with compatible adapters). It comes with a power supply and a footswitch and the case is fashioned in a sturdy metal.
High-Quality Preamps
EQ on Mono & Stereo Channels
Single-Knob Compressors
24-Bit FX
USB Recording and Playback
In the Box
- RCF F-10XR 10-Channel Mixer with Multi-FX and Stereo Recording
- Footswitch
- Power Supply
- Limited 3-Year Warranty
- Description
- High-Quality Preamps
- EQ on Mono & Stereo Channels
- Single-Knob Compressors
- 24-Bit FX
- USB Recording and Playback
RCF F10-XR Specs
| Input Connections | 4 x XLR Inputs 10 x 1/4" Inputs (4 x Stereo Pairs, 2 Mono) 4 x RCA Inputs (2 x Stereo Pair) 1 x 1/4" Footswitch Input |
| Gain Range | 0 to -50 dB |
| Input Impedance | Mic: 14 Kilohms Line: 21 Kilohms Stereo Line: 15 Kilohms |
| Frequency Response | 20 Hz to 20 kHz |
| Gain Selection | 20 dB to -30 dB |
| Low Cut Filters | 80 Hz |

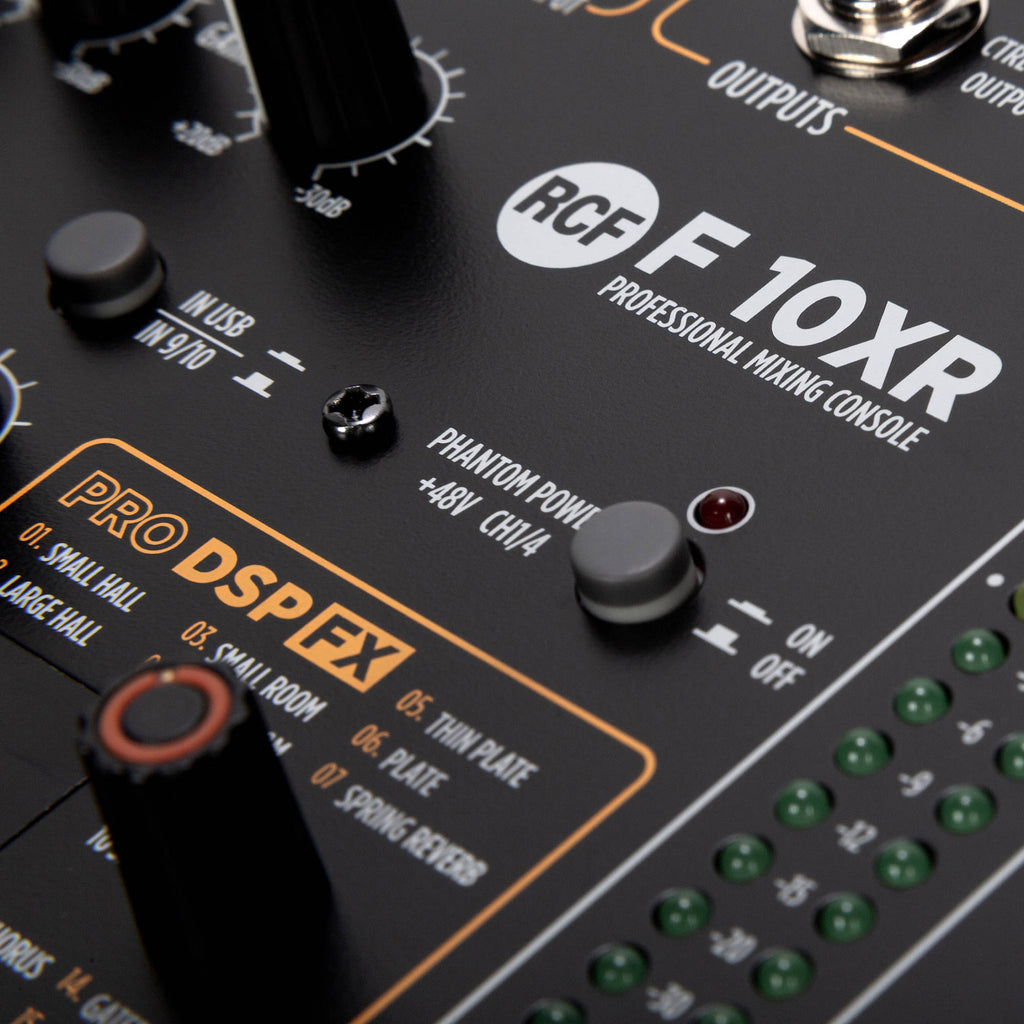

| Phantom Power | +48 V |
| Output Connections | 2 x XLR Main Outputs 2 x 1/4" Main Outputs 2 x 1/4" CTL Room Outputs 1 x 1/4" Auxiliary Output 1 x 1.4" Headphones Output |
| Output Level | 28 dBu |
| Headphone Impedance | 150 Ohms |
| Compressor | Single-Control Compressors on Channels 1 and 2 |
| Equalization | Input Channels: 2 Shelving / 1 Generic High: ±15 dB at 10 kHz, Shelving Mid: ±15 dB at 1.25 kHz, Bell Low: ±15 dB at 100 Hz, Shelving |
| USB Audio | Type-B, 2-Channel I/O, 44.1 or 48 kHz Sample Rate |
| Case Material | Metal |
| Frequency Response | 20 Hz to 20 kHz |
| THD+N | < 0.02% (20 dB Gain, 0 dBu Out, A-Weighted) |
| Voltage Requirements | 100 to 240 VAC |
| Power Consumption | 18 W |
| Power Supply | External |
| Dimensions (D x H x W) | 10.8 x 3.2 x 11.6" / 27.5 x 8.2 x 29.4 cm |
| Weight | 6.2 lb / 2.8 kg |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 47221.3 |
| 3-5 | ₹ 46739.45 |
| 5-10 | ₹ 45775.75 |
| 10+ | ₹ 44812.05 |
Bulk discount will be automatically applied during checkout based on quantity.
