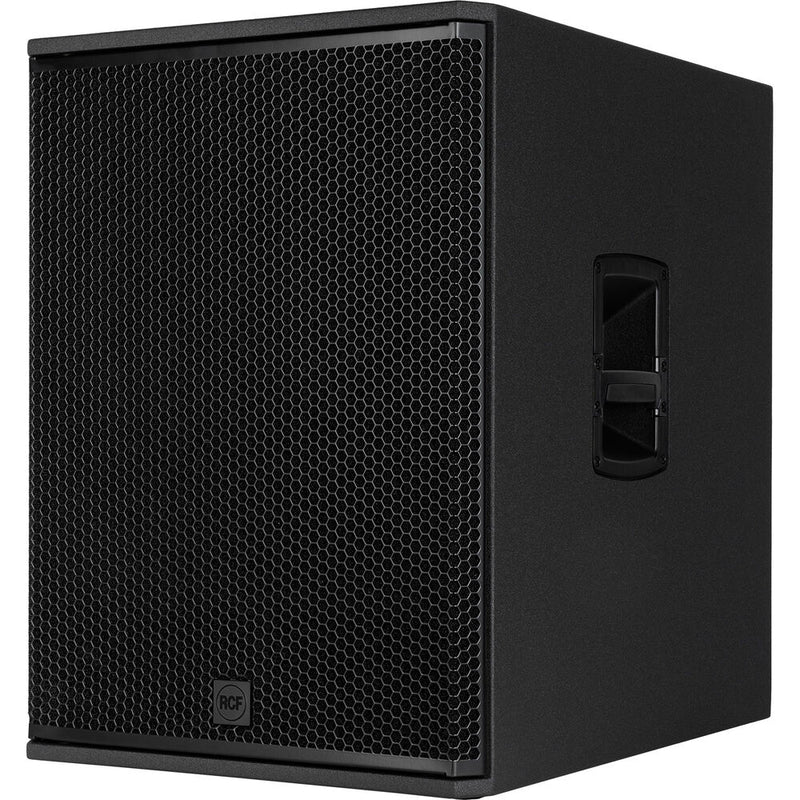

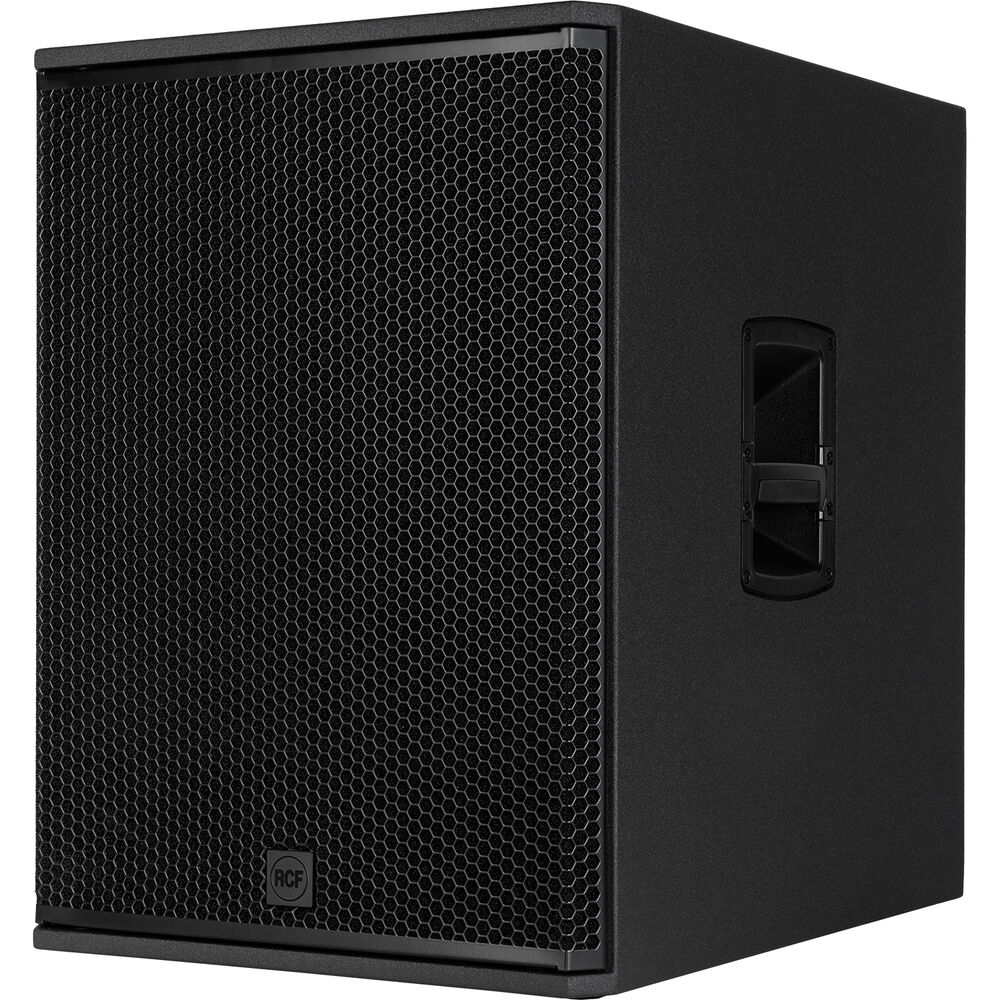

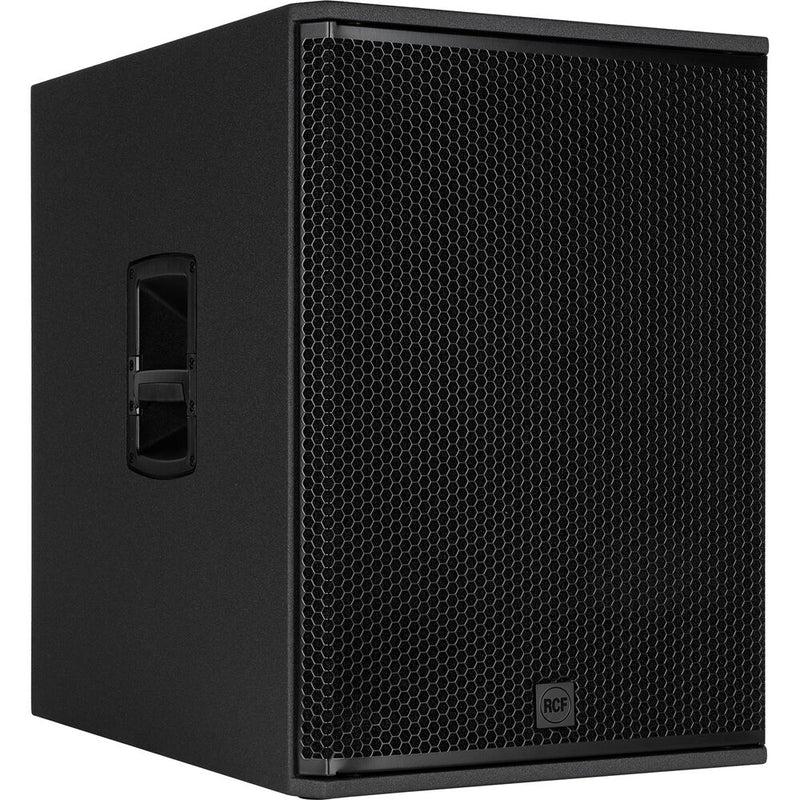

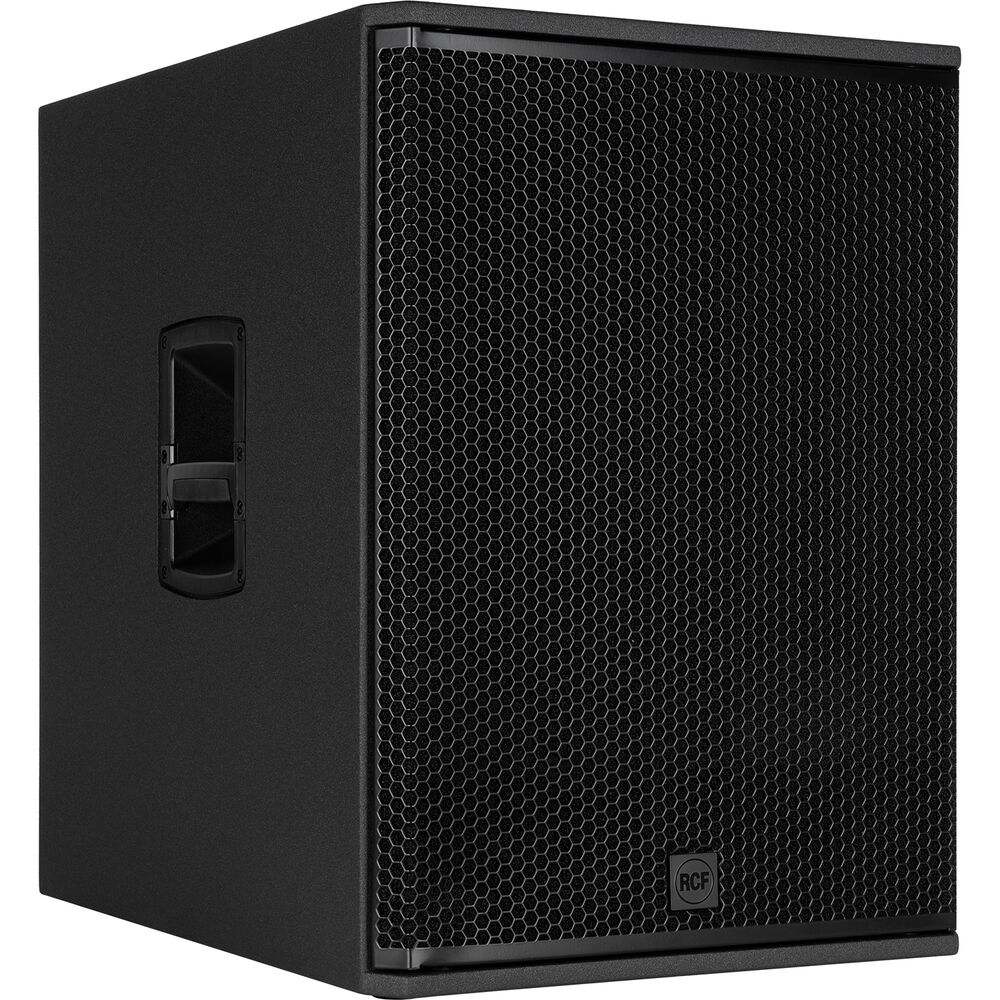

RCF SUB 8003-AS MK3 Professional 2200W Powered 18" Subwoofer

At a Glance

• 2200W Class-D amplifier
• 18� woofer, bass reflex housing
• 35 to 120 Hz frequency response
• 135 dB max SPL
• Multi-ply hardwood polyurea coated
• Selectable gain, X-over, cardioid mode, and time delay
• Stereo XLR input, stereo XLR signal output

Legendary Subwoofers

RCF subwoofers are the first choice of many sound engineers, thanks to very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to live in an engaging immersive experience in both live sound and DJing applications.

Industry-Leading Subs

• Lightweight and powerful, RCF woofers are a reference in high performance. Engineers have developed RCF Precision Transducers with new specific magnet sizes and molds to optimize magnetic flux while maintaining a low weight.
• The 15", 3.0" voice-coil magnetic-circuit topology is capable of delivering the highest balanced level of performance in three specific areas: maintenance of a consistent high-integrity magnetic flux gap, exceptionally low distortion, and efficiently integrating the magnetic circuit in a minimum weight design.
• The T-pole design optimization generates the minimum amount of flux modulation in the magnetic assembly during typical voice-coil movement within the gap.

Power That Moves

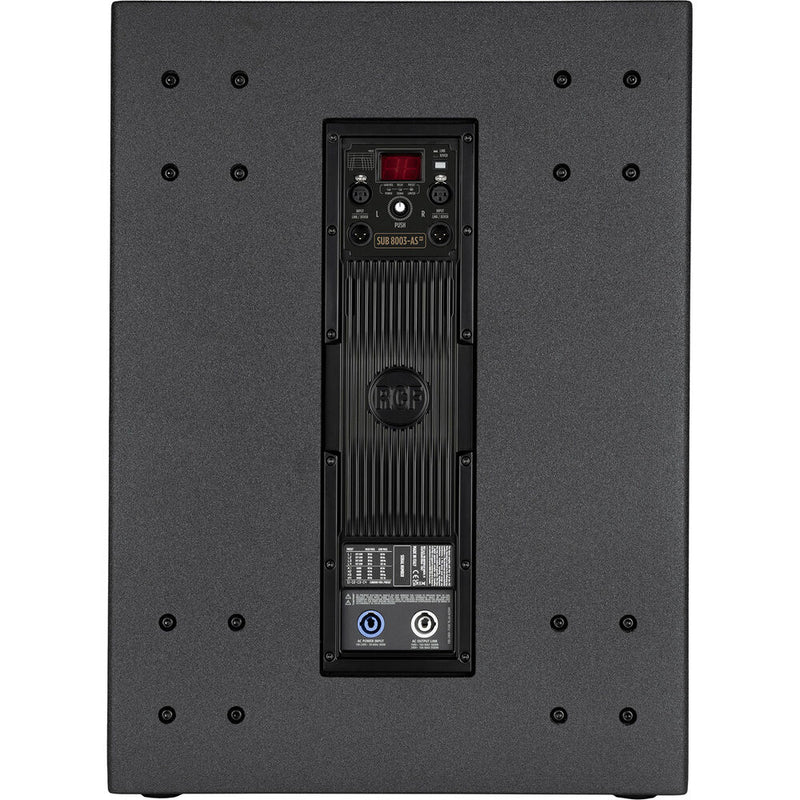

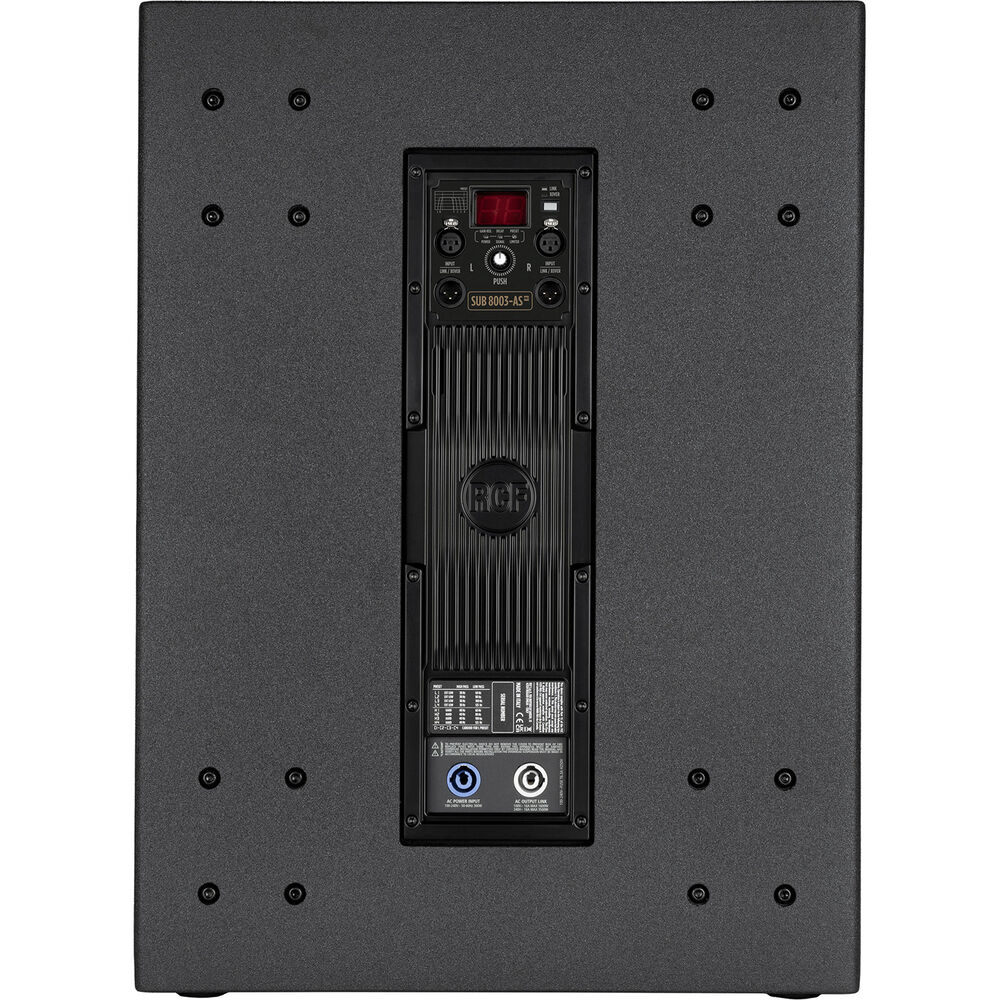

• The most powerful amplifier in its class. RCF's improvements in transducer design make RCF's woofers stronger and powerful, so the amplifier follows the evolution. With 1100W RMS power, RCF's Class-D amplifier is able to manage extreme sound-pressure levels, with an ultrafast attack, realistic transient response, and very low heat loss. They are so energy-efficient that there's no need for a cooling fan�the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts.
• The stereo input circuit with crossover features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and have a switched-mode power-supply section, joining high-efficiency with minimum weight.

Tour-Ready Workhorse

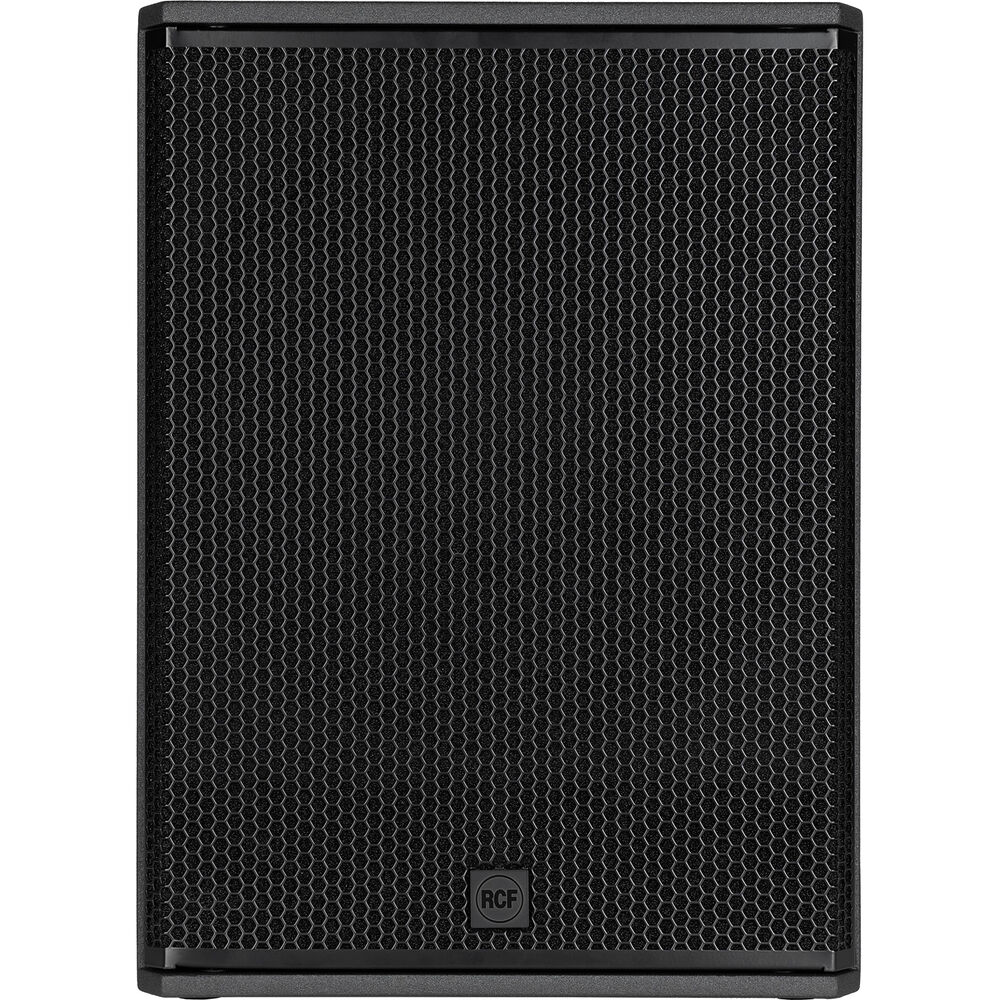

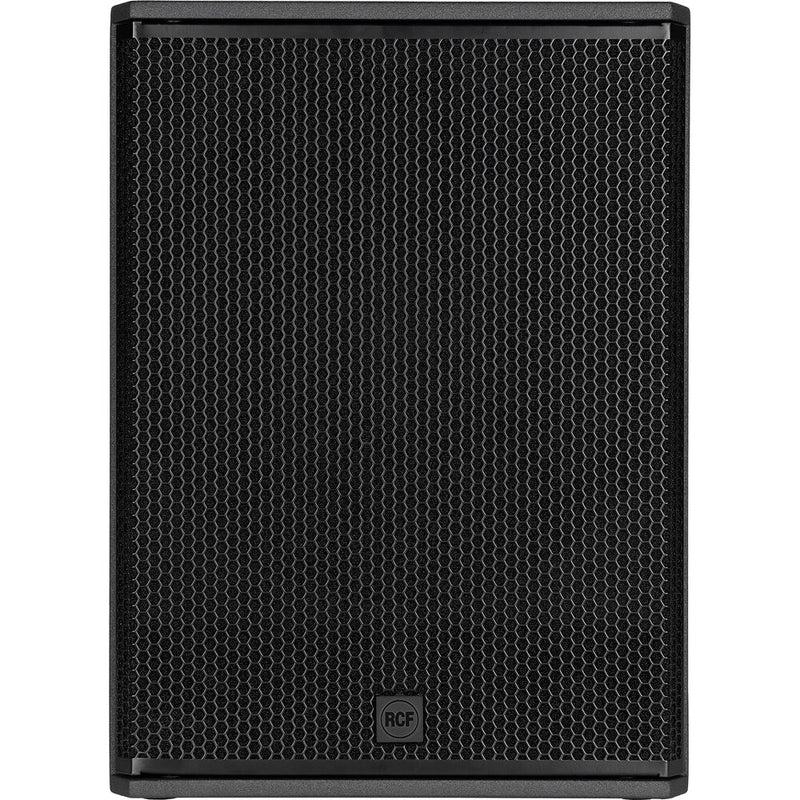

The RCF cabinets are made of high-quality multi-ply hardwood coated with a black polyurea finish. The subs are stackable and lightweight for easy setup and teardown, thanks to the ergonomic handles. Pole receptacles on the top and side allow you to use the box in various configurations. The powder coated front grille integrates a special sound-transparent foam backing on the inside to further protect the transducers from dust.

RCF SUB-8003AS MK3 Specs

Configuration	Active Subwoofer
Enclosure Type	Subwoofer
Total Power Capacity	2200 W Peak
HF Driver	No
MF Driver	No

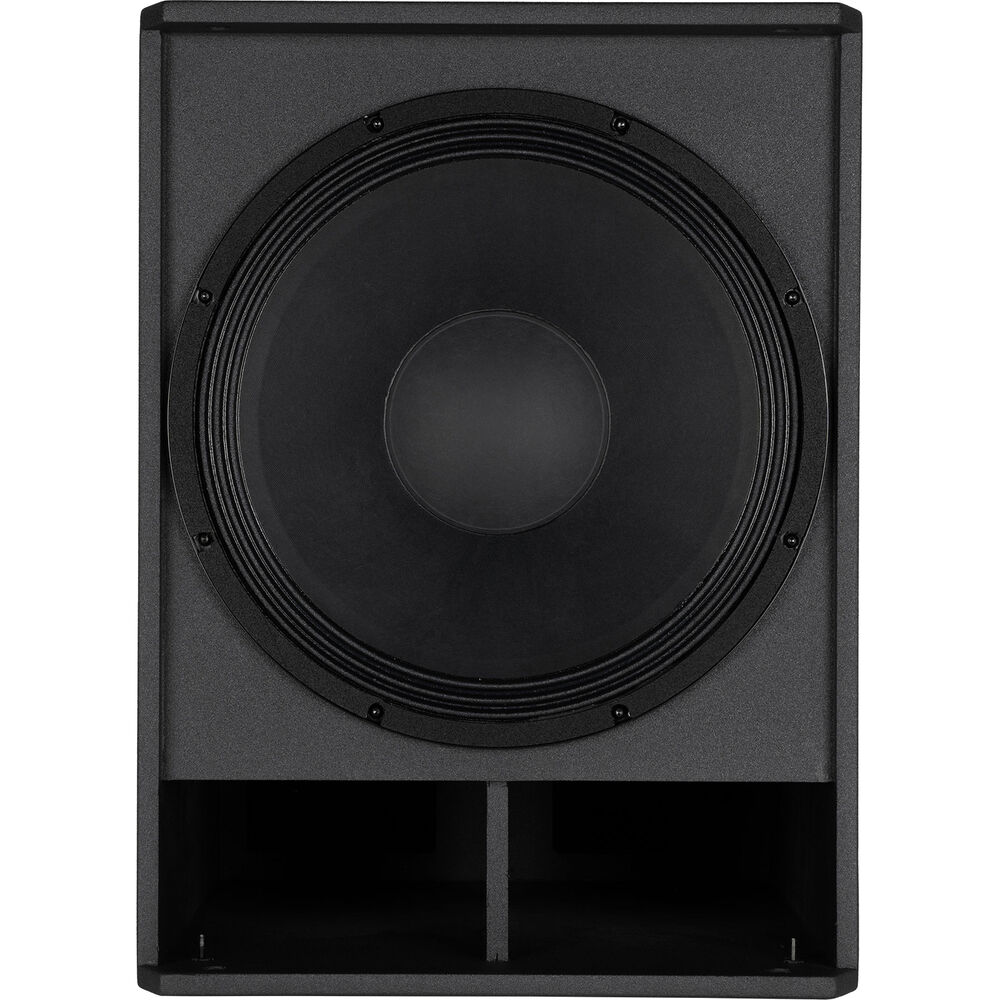

LF Driver	1x 18" / 457.2 mm Inverted Woofer
Wireless Connectivity	No
Color	Black

Enclosure Type	Subwoofer
Total Power Capacity	2200 W Peak
Amplifier Class	Class-D

HF Driver	No
MF Driver	No
LF Driver	1x 18" / 457.2 mm Inverted Woofer
LF Voice Coil	4" / 101.6 mm

Frequency Response	35 Hz to 120 Hz
Maximum SPL	135 dB
Input Sensitivity	+4 dBu to -2 dB
Protections	RMS, Thermal

Audio I/O	2x XLR 3-Pin Female Balanced/Unbalanced Link Input 2x XLR 3-Pin Male Balanced/Unbalanced Link Output
Network I/O	No
USB I/O	No
Wireless Connectivity	No
Bluetooth	No
Mobile App Compatible	No

EQ	Yes
Parametric EQ	No
Semi-Parametric EQ	No
Dynamic Processing	Soft Limiter
Alignment Delay	Yes
Phase Adjustment	Yes

AC Input Power	100 to 240 VAC, 50 / 60 Hz
AC Power I/O	1x powerCON Input 1x powerCON Output
Power Consumption	300 W

Color	Black

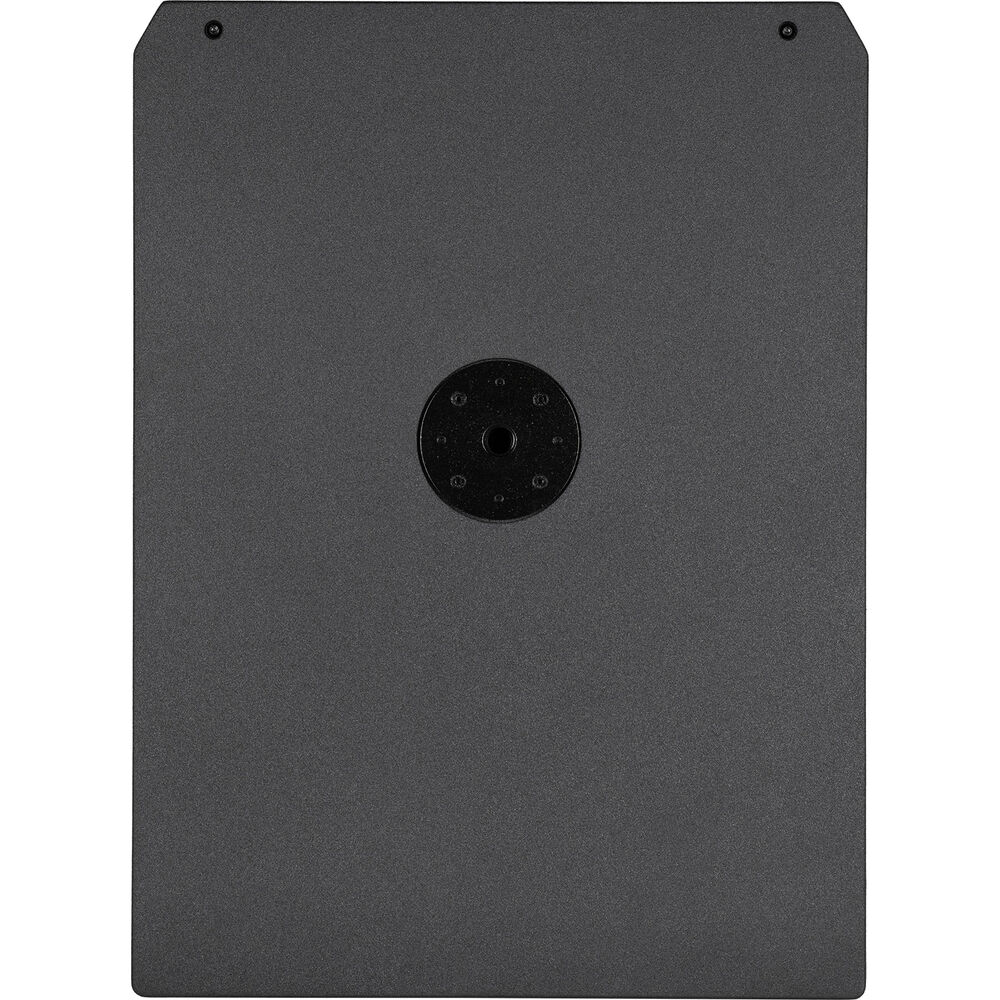

Mounting	1 x 1.4" / 35 mm Pole Socket (Top)
Handles	1x Each Side
Cooling	Convection
Construction Material	Plywood, Steel
Dimensions	27.3 x 27 x 19.9" / 69.3 x 68.6 x 50.5 cm
Weight	82.9 lb / 37.6 kg

Package Weight	110 lb
Box Dimensions (LxWxH)	29 x 28.7 x 22.1"
