Description
RDL DS-RC4RU Overview
The silver D-RC4RU 4-Channel Remote Control for RACK-UP 4x1 Audio or Video Switchers from RDL is a wall-box mounted remote module designed to directly control an RDL RU-SX4A Audio Switcher Module. The RU-SX4A provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/ unbalanced audio output. The DB-RC4RU connects directly to the power and SLAVE terminals of the RU-SX4A using a 3-pair cable (or a 6-conductor cable). The DB-RC4RU may be used to directly control the RDL RU-VSX4 Video Switcher.

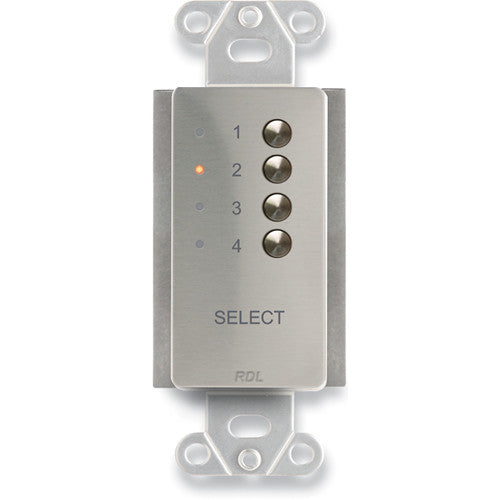

The front panel of the DB-RC4RU features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other 3 buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED adjacent to each button shows which source is selected. There are 4 output terminals on the DB-RC4RU. Each of these is an open-collector output, which is pulled to ground when the output is selected. For stereo installations, the DB-RC4RU is capable of driving two RU-SX4As simultaneously.
In the Box
- RDL D-RC4RU 4-Channel Remote Control for RACK-UP 4x1 Audio or Video Switchers (Silver)
- Limited 3-Year Manufacturer Warranty
Not in the Box
- Essential Batteries & Power (Not Included)
RDL DS-RC4RU Specs
| Selector Push Buttons | 4x Momentary push buttons (1 for each channel) |
| Indicators | 4x Red LEDs (indicated channel selected) |

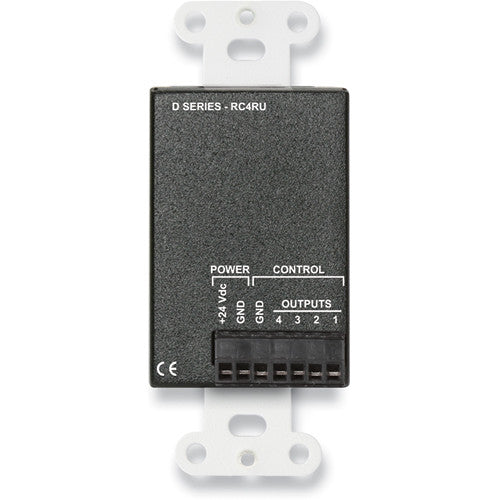

| Connection | Detachable terminal block; Interfaces directly with RDL RU-SX4A |
| Operating Environment | Ambient Operating Environment: 32° to 131°F (0° to 55°C) |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA |
| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes |
| Dimensions | 4.110 x 1.720 x 0.980" (10.44 x 4.37 x 2.48 cm) |
| Package Weight | 3.63 lb |
| Box Dimensions (LxWxH) | 4.63 x 2.13 x 0.4" |
