Description
RDL DB-RT2 Overview

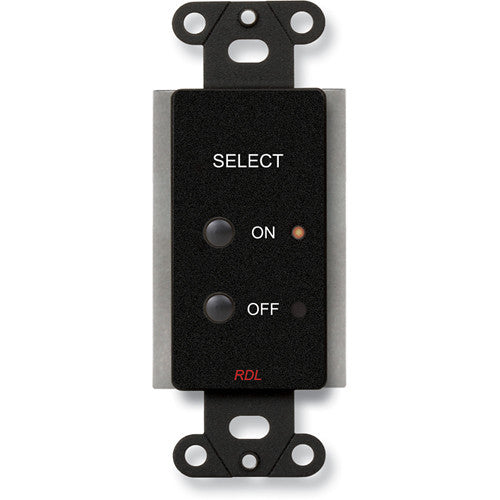

The black DB-RT2 Remote Control Selector from RDL is designed to turn on and off an audio or video source. Only one output terminal is needed for triggering, therefore a single shielded pair (3-conductor cable) is required for remote connection. For more complex switching networks, both outputs (ON and OFF) may be used. In an audio or video control installation, the DB-RT2 may be mounted adjacent to an RDL remote volume control.
Open-collector switching
LED indication
In the Box
- RDL DB-RT2 Remote Control Selector (Black)
- Limited 3-Year Manufacturer Warranty
Not in the Box
- Essential Batteries & Power (Not Included)
RDL DB-RT2 Specs
| Selector Push Buttons | 1 x On 1 x Off |
| Indicator LEDs | 1 x Green, On 1 x Red, Off |

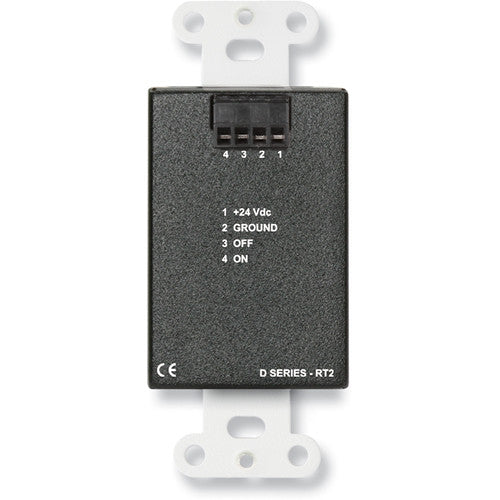

| Connectors | Back Panel: 4 x Screw terminal block, power and control |
| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes |
| Power Requirement | Ground-referenced, 24 VDC @ 30 mA |
| Ambient Operating Temperature | 32 to 131°F (0 to 55°C) |
| Dimensions | 4.1 x 1.3 x 1" (10.4 x 3.3 x 2.5 cm) |
| Weight | Not specified by manufacturer |
Packaging Info
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 4.625 x 3.625 x 2.125" |
