Description
RDL DS-J1 Overview

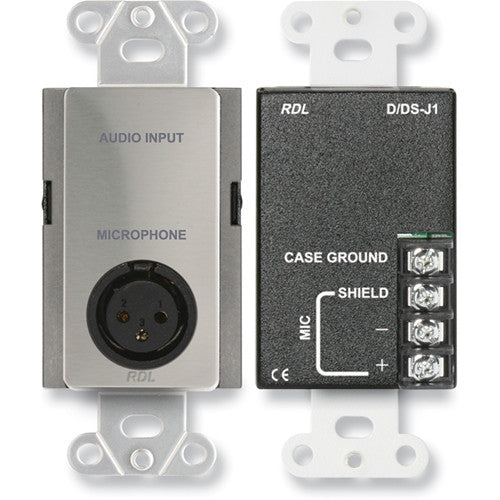

The stainless steel DS-J1 Microphone Input Assembly with XLR from RDL is D Series-J1 complete microphone input panel assembly. Connections to the female front panel XLR jack are made on a rear barrier block. Four terminals are provided: case ground, shield (XLR pin 1), +(XLR pin 2), and -(XLR pin 3). The installer may install a jumper between the shield connection and case ground if desired. The back of the D Series-J1 is finished with a metal enclosure clearly labeled for installation.
The D Series-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
Wall mounted microphone input panel
XLR input connector with gold contacts
Barrier block wiring connections
Ground lift terminals on barrier block
UPC: 813721015266
In the Box
- RDL DS-J1 Microphone Input Assembly with XLR (Stainless Steel)
- Limited 3-Year Manufacturer Warranty
RDL DS-J1 Specs
Connectors
| Input |
XLR female gold contacts
|
| Output |
Full size barrier block
Output Connections: 1 x CASE GROUND 1 x SHIELD (XLR 1-pin) 1 x SHIELD +(XLR 2-pin) 1 x SHIELD -(XLR 3-pin) |
General
| Construction |
Stainless steel
|
| Power Requirement |
Passive
|
| Dimensions |
1.70 x 4.13 x 2.15" (43.18 x 104.90 x 54.61 mm)
|
Packaging Info
| Package Weight |
0.44 lb
|
| Box Dimensions (LxWxH) |
4.625 x 3.625 x 2.125"
|
