Description

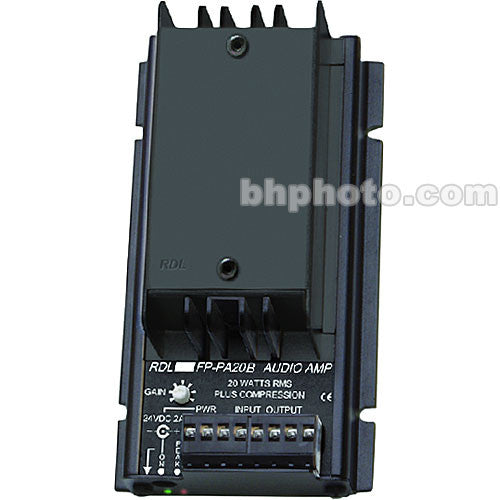

RDL FP-PA20B Overview
The RDL FP-PA20B is a miniature mountable power amplifier that features RDL's ultra-compact FLAT-PAK design for cabinet, shelf, and desktop installation. This tiny amplifier outputs 20W of clean power and features a built-in compressor with auto-adjusting attack and release functionality. This prevents feedback and overload. The compressor is designed to kick in at 6 dB below the rated output of the unit.
Miniature 20W surface mount power amplifier for 25V speakers in paging/music office installation applications
Proprietary FLAT-PAK design enables shelf, cabinet, or desktop placement; optional rackmount kit for multiple units
Built-in compressor with threshold 6 dB below rated output, auto adjusting attack and release
All-metal construction
Standard terminal I/O connectors, line-level balanced and unbalanced inputs
UPC: 813721012586
In the Box
- RDL FP-PA20B Mono Audio Power Amplifier
- Limited 3-Year Manufacturer Warranty
RDL FP-PA20B Specs
| Number of Channels | 1 |
| Power Rating | 25 V: 20 W RMS |
Performance
| Frequency Response | 50 Hz to 18 kHz ±3 dB |
| Input Impedance | 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) |
| SNR | < -80 dB |
| THD+N |
< 0.1% (1 kHz) < 0.5% (Full Range) |
| CMRR | > 55 dB |
Signal Processing
| Compressor | Yes |
Connectivity
| Analog Audio I/O | Block |
Power
| Current Consumption | 1650 mA (RMS) 1000 mA (Program) |
Physical
| Display & Indicators | Red LED (Compressor) Green LED (Power) |
| Operating Temperature | 32 to 86°F / 0 to 30°C |
| Dimensions | 2.3 x 3.2 x 6.0" / 5.8 x 8.3 x 15.3 cm |
Packaging Info
| Package Weight | 2.35 lb |
| Box Dimensions (LxWxH) | 7 x 5 x 2.5" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
