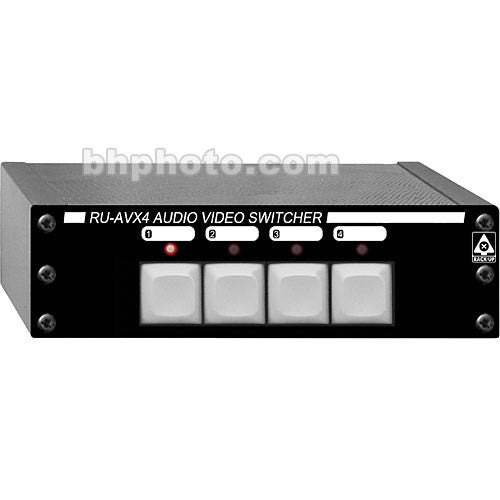

The RU-AVX4 from RDL is a compact, rack-mountable, professional-quality 4-channel audio/video switcher. It offers gold-plated RCA phono connectors for all inputs and outputs, allowing a variety of devices such as VCRs, DVD players, or CD players to be connected. All source selection uses solid-state switching for increased reliability.
Each source has a front-panel pushbutton selector and an accompanying LED to signal which source is currently selected. A terminal block connector is provided on the rear-panel for remote control of the unit.
- Switch between 4 audio/video sources
- Gold-plated RCA phono jacks for all I/Os
- Front-panel pushbuttons for source selection
- LED indicators for each channel
- Rear-panel terminal block connector for remote control
- Professional quality in a compact unit
UPC: 813721013118
In the Box
RDL RU-AVX4 - 4-Channel A/V Switcher
| Video |
| Inputs | 4 x Gold-Plated RCA Phono Jacks, 75 ohms |
| Input Level | 1V p-p |
| Outputs | 1 x Gold-Plated RCA Phono Jack, 75 ohms |
| Frequency Response | 10Hz - 10MHz |
| Residual Noise | Less than -70dB |
| Off Attenuation | Greater than 78dB |
| Differential Gain | 0.1% |
| Differential Phase | Less than 0.3 degrees |
| Audio |
| Inputs | 4 x Stereo Pairs of Unbalanced RCA Phono Jacks, 10 k ohms |
| Gain | Unity Nominal |
| Input Level | -10 dBV Nominal |
| Outputs | 1 x Stereo Pair of Unbalanced RCA Phono Jacks, 75 ohms |
| Frequency Response | 10Hz - 60kHz |
| Total Harmonic Distortion (THD) | Less than 0.01% |
| Headroom | Greater than 20dB |
| Noise | -95dB, -10 dBV Ref. (20Hz - 20kHz) |
| Off Attenuation | Greater than 74dB |
| Crosstalk | Below Noise Floor (Inputs Terminated) |
| General |
| Power Requirements | 24 to 33 VDC @ 100mA (Ground-Referenced) (Inputs via screw terminals or AC adapter jack) |
| Remote Control Connector | 1 x Screw Terminal Block |
| Packaging Info |
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 7.0 x 4.0 x 2.5" |
